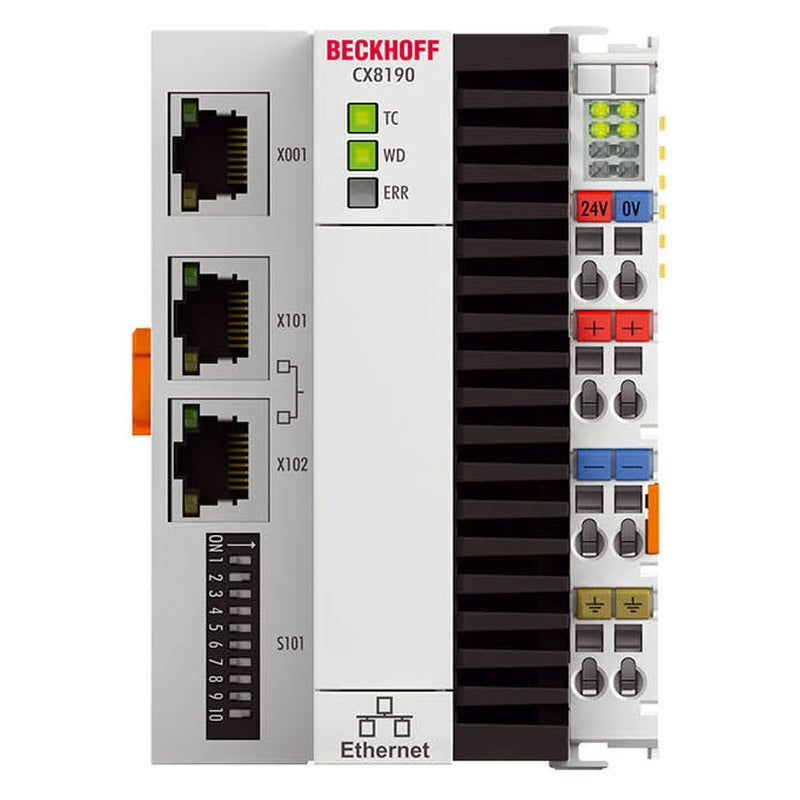

The Beckhoff CX8190 is an embedded pc with arm® cortex®-a9 and 2-port ethernet switch. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| I/O & Signals | |
| Number of cores | 1 |
| Power & Current | |
| Power supply | 24 V DC (-15%/+20%) |
| Current supply E-bus/K-bus | 2 A |
| Max. power consumption | 4 W |
| Max. power consumption (with loading UPS) | 9 W |
| Max. power consumption E-bus/K-bus | 10 W (5 V/max. 2 A) |
| Communication | |
| Interfaces | 1 x RJ45 10/100 Mbit/s, 1 x bus interface |
| Bus interface | 2 x RJ45 (switched) |
| Transmission rate | 100 Mbit/s |
| Mechanical & Environmental | |
| Operating system | Windows Embedded Compact 7 |
| Dimensions (W x H x D) | 71 mm x 100 mm x 73 mm |
| Weight | approx. 230 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection rating | IP20 |
| Approvals & Compliance | |
| Approvals/markings | CE, UL |
| General | |
| Processor | Arm ® Cortex ® -A9, 800 MHz |
| Flash memory | slot for microSD card, 512 MB included (optionally expandable) |
| Main memory | 512 MB DDR3 RAM (not expandable) |
| 1-second UPS | integrated (1 MB on microSD card) |
| Cooling | passive |
| Diagnostics LED | 1 x TC status, 1 x WD, 1 x error |
| Clock | internal battery-backed clock for time and date (battery behind the front flap, exchangeable) |
| Control software | TwinCAT 3 runtime (XAR) |
| I/O connection | E-bus or K-bus, automatic recognition |
| UPS OCT-capable | no |
| TwinCAT 3 platform level | Economy (20); please see here for an overview of all the TwinCAT 3 platform level |
Model variants, options and firmware revisions can affect fitment. Before ordering the Beckhoff CX8190 embedded pc with arm® cortex®-a9 and 2-port ethernet switch, share your existing part number or project requirements and our team will cross-reference comparable in-stock Beckhoff units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.
