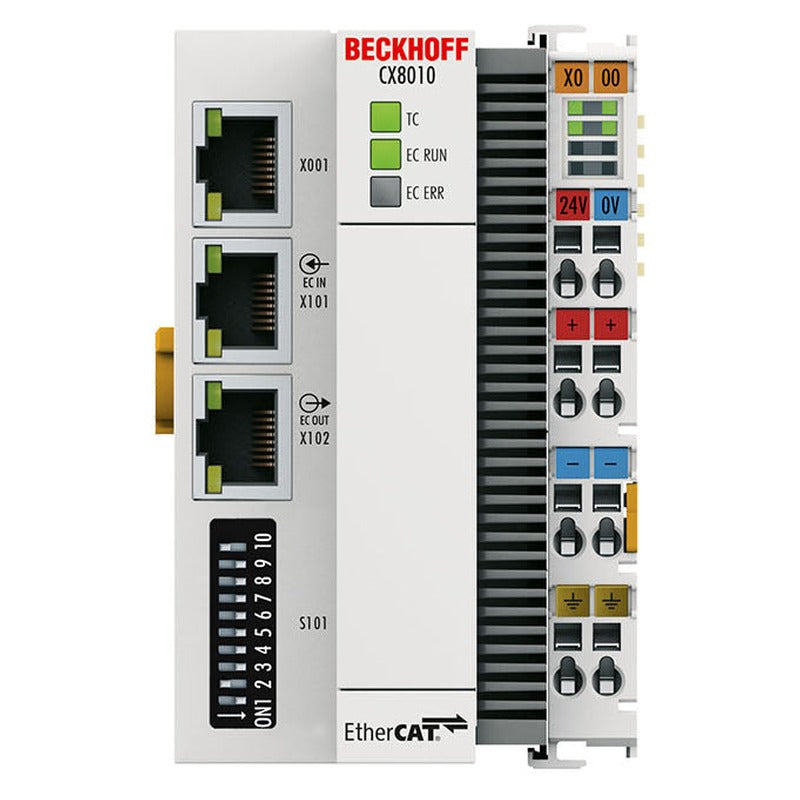

The Beckhoff CX8010 is an embedded pc with arm9™ and ethercat slave. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| I/O & Signals | |
| Number of cores | 1 |
| Power & Current | |
| Power supply | 24 V DC (-15%/+20%) |
| Current supply E-bus/K-bus | 2 A |
| Max. power consumption | 3 W |
| Max. power consumption E-bus/K-bus | 10 W (5 V/max. 2 A) |
| Communication | |
| Interfaces | 1 x RJ45 10/100 Mbit/s, 1 x USB device (behind the front flap), 1 x bus interface |
| Bus interface | EtherCAT IN and OUT (2 x RJ45) |
| Transmission rate | 100 Mbit/s |
| Mechanical & Environmental | |
| Operating system | Windows Embedded CE 6 |
| Dimensions (W x H x D) | 64 mm x 100 mm x 73 mm |
| Weight | approx. 180 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection rating | IP20 |
| Approvals & Compliance | |
| Approvals/markings | CE, UL, ATEX, IECEx, cFMus |
| Ex marking | ATEX: II 3G Ex nA IIC T4 Gc II 3D Ex tc IIIC T135°C Dc IECEx: Ex nA IIC T4 Gc Ex tc IIIC T135°C Dc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc |
| General | |
| Processor | Arm9™, 400 MHz |
| Flash memory | slot for microSD card, 512 MB included (optionally expandable) |
| Main memory | 64 MB DDR2 RAM (not expandable) |
| 1-second UPS | integrated (1 MB on microSD card) |
| Programming languages | IEC 61131-3 |
| Web visualization | yes |
| Online change | yes |
| Up/down load code | yes/yes |
| Cooling | passive |
| Diagnostics LED | 1 x TC status, 2 x bus status |
| Clock | internal battery-backed clock for time and date (battery behind the front flap, exchangeable) |
| Control software | TwinCAT 2 PLC |
| I/O connection | E-bus or K-bus, automatic recognition |
| UPS OCT-capable | no |
| Web-based management | yes |
Model variants, options and firmware revisions can affect fitment. Before ordering the Beckhoff CX8010 embedded pc with arm9™ and ethercat slave, share your existing part number or project requirements and our team will cross-reference comparable in-stock Beckhoff units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.
