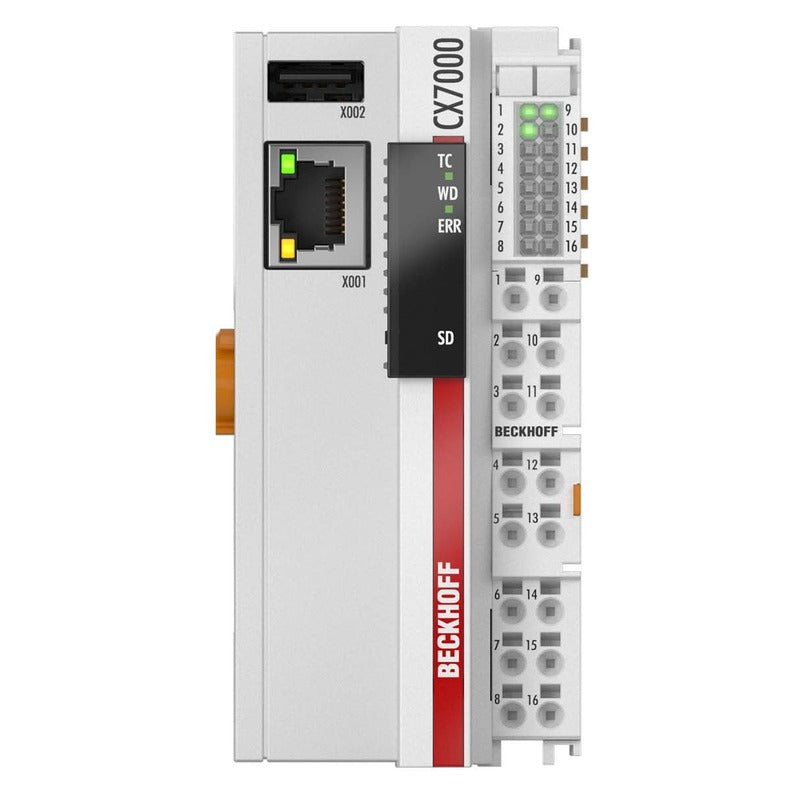

Beckhoff CX7000 Embedded PC
Beckhoff CX7000 Embedded PC

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Beckhoff

Beckhoff CX7000 Embedded PC

SKU: CX7000
(0)
$871.20
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

CX7000 Embedded PC with Arm® Cortex®-M7 and integrated I/Os | Beckhoff

The Beckhoff CX7000 is an embedded pc with arm® cortex®-m7 and integrated i/os. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Number of inputs: 8 multi-functional inputs (24 V DC).
  • Number of outputs: 4 multi-functional outputs (24 V DC, 0.5 A, 1-wire connection technology).
  • Number of cores: 1.
  • Weight: 142 g.
  • Approvals/markings: CE, UL.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
I/O & Signals
Number of cores 1
Number of inputs 8 multi-functional inputs (24 V DC)
Number of outputs 4 multi-functional outputs (24 V DC, 0.5 A, 1-wire connection technology)
Power & Current
Power supply 24 V (-15%/+20%)
Current supply E-bus/K-bus 1.5 A
Max. power consumption < 2.0 W
Max. power consumption E-bus/K-bus 7.5 W
Communication
Interfaces 1 x RJ45 10/100 Mbit/s, 1 x USB
Bus interface –
Transmission rate –
Mechanical & Environmental
Operating system TwinCAT/RTOS
Dimensions (W x H x D) 49 mm x 100 mm x 73 mm
Weight 142 g
Operating temperature -25…+60°C
Storage temperature -40…+85°C
Relative humidity 95%, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protection rating IP20
Approvals & Compliance
Approvals/markings CE, UL
General
Processor Arm ® Cortex ® -M7, 480 MHz
Flash memory slot for microSD card, 512 MB included (optionally expandable)
Main memory 32 MB SDR (not expandable)
NOVRAM 4 kB
Cooling passive
Diagnostics LED 1 x TC status, 1 x WD, 1 x error, 1 x flash access
Clock internal, capacitor-buffered real-time clock for time and date (storage capacity > 21 days)
Control software TwinCAT 3 runtime (XAR)
I/O connection E-bus or K-bus, automatic recognition
UPS OCT-capable no
Included TwinCAT 3 Function TC1000 TwinCAT 3 ADS, TC1100 TwinCAT 3 I/O, TC1200 TwinCAT 3 PLC, TF4100 TwinCAT 3 Controller Toolbox, TF4110 TwinCAT 3 Temperature Controller, TF6255 TwinCAT 3 Modbus RTU, TF6340 TwinCAT 3 Serial Communication, TF6701 TwinCAT 3 IoT Communication (MQTT), TF6730 TwinCAT 3 IoT Communicator, TF6760 TwinCAT 3 IoT HTTPS/REST
TwinCAT 3 platform level Basic (10); please see here for an overview of all the TwinCAT 3 platform level

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the Beckhoff CX7000 embedded pc with arm® cortex®-m7 and integrated i/os, share your existing part number or project requirements and our team will cross-reference comparable in-stock Beckhoff units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Machine and production-line automation with distributed I/O.
  • Conveyors, packaging and material-handling equipment.
  • Process data acquisition and sensor/actuator interfacing.
  • Maintenance, spares and retrofit of existing Beckhoff systems.
  • Control-cabinet and DIN-rail mounted automation builds.

Warranty

  • Availability: CX7000 is stocked for prompt shipment; contact us for current quantity and lead time.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping is available, and orders over $500 ship free.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: Beckhoff part CX7000 is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What condition is the CX7000 supplied in?

A: Each unit is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.

Q: How quickly can the CX7000 ship?

A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.

Q: Can you confirm compatibility or a replacement for the CX7000?

A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
