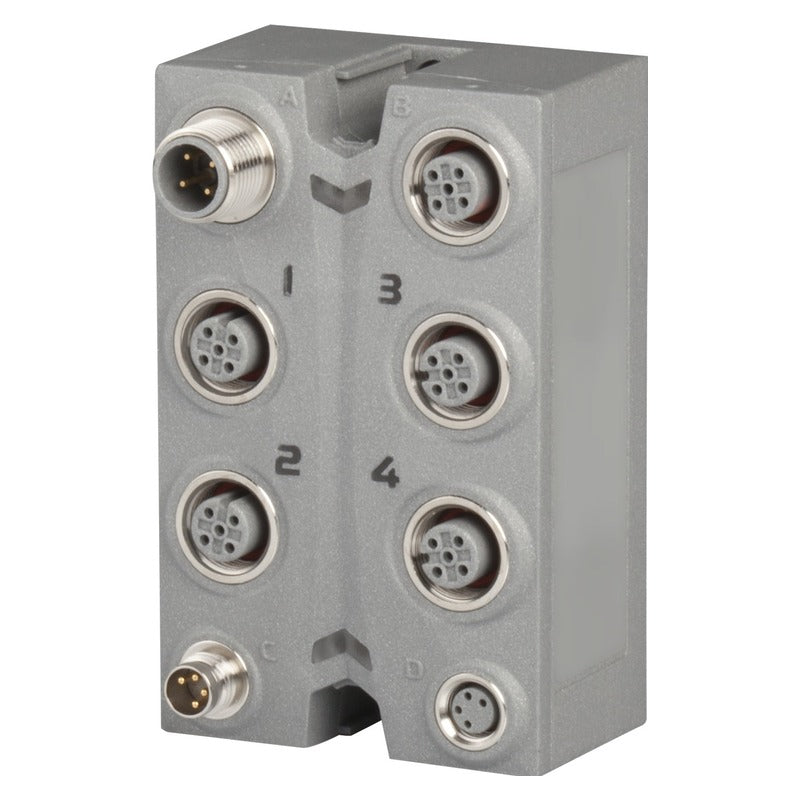

The B&R X67SM2436 is a field i/o module. 2 full bridges for controlling stepper motors. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| General | |
| I/O module | 2 full bridges for controlling stepper motors |
| Diagnostics | |
| I/O power supply | Yes, using LED status indicator and software |
| Motor status | Yes, using LED status indicator and software |
| Connection type | |
| X2X Link | M12, B-coded |
| Inputs/Outputs | 4x M12, A-coded |
| I/O power supply | M8, 4-pin |
| Internal I/O | |
| At 24 VDC | 1.7 W |
| At 48 VDC | 2 W |
| X2X Link power supply | 0.75 W |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| ATEX | Zone 2, II 3G Ex nA IIA T5 Gc IP67, Ta = 0 - Max. 60°C TÜV 05 ATEX 7201X |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| KC | Yes |
| B&R ID code | 0x1DCB |
| Status indicators | I/O function per channel, supply voltage, bus function |
| Quantity | 2 |
| Type | 2-phase bipolar stepper motor (full bridge) |
| Nominal voltage | 24 to 38.5 VDC ±25% |
| Nominal current | 3 A |
| Max. current/motor | 5 A for 2 s (after a recovery time of at least 10 s at maximum 3 A) |
| Max. current/module | 8 A |
| Controller frequency | 38.5 kHz |
| DC bus capacitance | 200 µF |
| Step resolution | 256 microsteps per full step |
| Power consumption | |
| Sensor power supply | Max. 0.96 W |
| Integrated protective function | |
| Reverse polarity protection | No |
| Input filter | |
| Hardware | <5 µs |
| Software | - |
| Switching threshold | |
| Low | <5 VDC |
| High | >15 VDC |
| Quantity | 6 |
| Nominal voltage | 24 VDC |
| Input characteristics per EN 61131-2 | Type 1 |
| Input voltage | 24 VDC -15% / +20% |
| Input current at 24 VDC | Approx. 4 mA |
| Input circuit | Sink |
| Input resistance | Typ. 5.4 kΩ |
| Additional functions | 2x ABR incremental encoder |
| Insulation voltage between channel and bus | 500 V eff |
| Encoder inputs | 24 V, asymmetrical |
| Counter size | 16-bit |
| Input frequency | Max. 50 kHz |
| Evaluation | 4x |
| Encoder power supply | Module-internal, max. 20 mA per encoder |
| Signal form | Square wave pulse |
| Counter 1 | Inputs 1 to 3 |
| Counter 2 | Inputs 4 to 6 |
| Counter frequency | Max. 200 kHz |
| Supply voltage | |
| Min. voltage at 20 mA / group | 20 VDC |
| Supply voltage | 24 VDC |
| Short-circuit proof | Yes |
| Electrical isolation | Channel isolated from bus Channel not isolated from channel |
| Mounting orientation | |
| Any | Yes |
| Installation elevation above sea level | |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP67 |
| Temperature | |
| Operation | 0 to 50°C |
| Derating | - |
| Storage | -25 to 85°C |
| Transport | -25 to 85°C |
| Dimensions | |
| Width | 53 mm |
| Height | 85 mm |
| Depth | 42 mm |
| Torque for connections | |
| M8 | Max. 0.4 Nm |
| M12 | Max. 0.6 Nm |
| Weight | 195 g |
| Automation Studio HW Upgrades | Version (Date) |
| V2.7 HW Upgrade (X67SM2436) | 2.2.0.0 (12/17/2019) 1.5.0.0 (11/03/2017) |
| V3.0 HW Upgrade (X67SM2436) | 2.3.0.0 (04/26/2021) 2.2.0.0 (12/17/2019) 1.5.0.0 (11/03/2017) |
| V4.0 HW Upgrade (X67SM2436) | 2.3.0.0 (04/26/2021) 2.2.0.0 (12/17/2019) 1.6.0.0 (10/25/2019) 1.5.0.1 (12/18/2017) |
| Certificates | Version (Date) |
| 2226379 CSA Certificate of Compliance X20 X67 | 2026_09 (09/21/2026) |
| E115267 UL CoC X67 | 2026_01 (01/29/2026) |
| EU Declaration ATEX X67 | 2021-04 (07/02/2021) |
| EU Declaration PLC X67 | 2024-02 (02/02/2024) |
| Safe cutoff of potential groups | 2.4 (11/29/2023) - EN |
| TÜV 05 ATEX 7201 X | 1.10 (03/24/2021) |
| UK Declaration PLC X67 | 2024-02 (02/02/2024) |
| X20, X67 KC certificates | 2.00 (08/17/2026) |
| Documentation | Version (Date) |
| Data sheet X67SM2436 | 2.83 (07/22/2025) - DE 2.83 (07/22/2025) - EN |
| X67 System User´s Manual | 4.40 (08/27/2026) - DE 4.40 (08/31/2026) - IT 4.40 (08/31/2026) - FR 4.40 (08/27/2026) - EN 4.30 (03/25/2025) - DE 4.30 (04/01/2025) - IT 4.30 (03/28/2025) - FR 4.30 (03/25/2025) - EN |
| E-CAD (Electro or EPLAN Templates) | Version (Date) |
| X67 EPLAN P8 from V2.4 | 4.0.0 (08/20/2019) |
| M-CAD (Mechan. Templates) | Version (Date) |
| 3D File DXF/STEP X67 | 1.20 (03/17/2025) |
