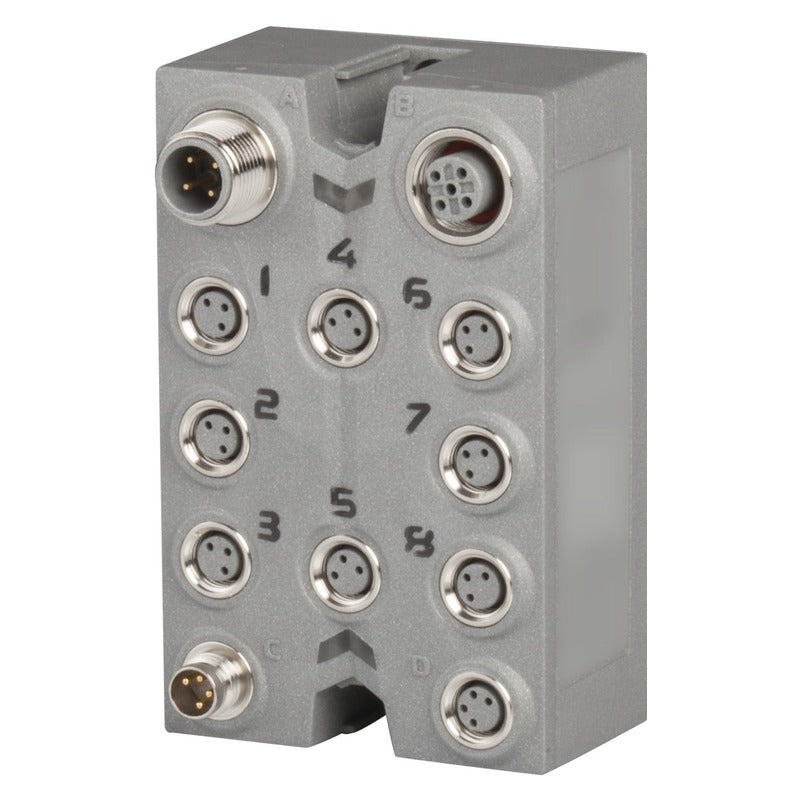

The B&R X67DM1321.L08-C2 is a field i/o module. 8 digital channels, configurable as inputs or outputs using software, inputs with additional functions. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| General | |
| I/O module | 8 digital channels, configurable as inputs or outputs using software, inputs with additional functions |
| Diagnostics | |
| Outputs | Yes, using LED status indicator and software |
| I/O power supply | Yes, using LED status indicator and software |
| Connection type | |
| X2X Link | M12, B-coded |
| Inputs/Outputs | 8x M8, 3-pin |
| I/O power supply | M8, 4-pin |
| Power consumption | |
| Internal I/O | 2.5 W |
| X2X Link power supply | 0.75 W |
| Sensor/Actuator power supply | Max. 12 W |
| Voltage range | 18 to 30 VDC |
| Integrated protective function | Reverse polarity protection |
| Voltage | I/O power supply minus voltage drop for short-circuit protection |
| Voltage drop for short-circuit protection at 0.5 A | Max. 2 VDC |
| Summation current | Max. 0.5 A |
| Short-circuit proof | Yes |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| ATEX | Zone 2, II 3G Ex nA IIA T5 Gc IP67, Ta = 0 - Max. 60°C TÜV 05 ATEX 7201X |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| KC | Yes |
| Insulation voltage between channel and bus | 500 V eff |
| Nominal voltage | 24 VDC |
| B&R ID code | 0x1311 |
| Sensor/Actuator power supply | 0.5 A summation current |
| Status indicators | I/O function per channel, supply voltage, bus function |
| Input filter | |
| Hardware | ≤10 μs (channels 1 to 4) / ≤70 µs (channels 5 to 8) |
| Software | Default 0 ms, configurable between 0 and 25 ms in 0.2 ms intervals |
| Switching threshold | |
| Low | <5 VDC |
| High | >15 VDC |
| Input characteristics per EN 61131-2 | Type 1 |
| Input voltage | 18 to 30 VDC |
| Input current at 24 VDC | Typ. 4 mA |
| Input circuit | Sink |
| Input resistance | Typ. 5 kΩ |
| Additional functions | 50 kHz event counting, gate measurement |
| Quantity | 2 |
| Signal form | Square wave pulse |
| Evaluation | Each negative edge, cyclic counter |
| Input frequency | Max. 50 kHz |
| Counter 1 | Input 1 |
| Counter 2 | Input 3 |
| Counter frequency | Max. 50 kHz |
| Counter size | 16-bit |
| Counter frequency | |
| Internal | 48 MHz, 3 MHz, 187.5 kHz |
| Quantity | 1 |
| Evaluation | Positive edge - Negative edge |
| Length of pause between pulses | ≥100 µs |
| Pulse length | ≥20 µs |
| Supported inputs | Input 2 or input 4 |
| Switching delay | |
| 0 → 1 | <400 µs |
| 1 → 0 | <400 µs |
| Switching frequency | |
| Resistive load | Max. 100 Hz |
| Variant | Current-sourcing FET |
| Switching voltage | I/O power supply minus residual voltage |
| Nominal output current | 0.5 A |
| Total nominal current | 4 A |
| Output circuit | Source |
| Output protection | Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads, reverse polarity protection of the output power supply |
| Diagnostic status | Output monitoring with 10 ms delay |
| Leakage current when the output is switched off | 5 µA |
| Switching on after overload shutdown | Approx. 10 ms (depends on the module temperature) |
| Residual voltage | <0.3 V at 0.5 A nominal current |
| Peak short-circuit current | <12 A |
| Braking voltage when switching off inductive loads | 50 VDC |
| Electrical isolation | Channel isolated from bus Channel not isolated from channel |
| Mounting orientation | |
| Any | Yes |
| Installation elevation above sea level | |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP67 |
| Temperature | |
| Operation | -25 to 60°C |
| Derating | - |
| Storage | -40 to 85°C |
| Transport | -40 to 85°C |
| Dimensions | |
| Width | 53 mm |
| Height | 85 mm |
| Depth | 42 mm |
| Torque for connections | |
| M8 | Max. 0.4 Nm |
| M12 | Max. 0.6 Nm |
| Weight | 190 g |
| Automation Studio HW Upgrades | Version (Date) |
| V2.6 HW Upgrade (X67DM1321) | 1.1.1.0 (03/27/2012) |
| V3.0 HW Upgrade (X67DM1321) | 1.1.1.0 (03/27/2012) |
| V4.0 HW Upgrade (X67DM1321) | 1.2.0.0 (10/25/2019) |
| Certificates | Version (Date) |
| 2226379 CSA Certificate of Compliance X20 X67 | 2026_09 (09/21/2026) |
| E115267 UL CoC X67 | 2026_01 (01/29/2026) |
| EU Declaration ATEX X67 | 2021-04 (07/02/2021) |
| EU Declaration PLC X67 | 2024-02 (02/02/2024) |
| Safe cutoff of potential groups | 2.4 (11/29/2023) - EN |
| TÜV 05 ATEX 7201 X | 1.10 (03/24/2021) |
| UK Declaration PLC X67 | 2024-02 (02/02/2024) |
| X20, X67 KC certificates | 2.00 (08/17/2026) |
| Documentation | Version (Date) |
| Datasheet X67DM1321 | 2.30 (11/24/2025) - DE 2.30 (11/24/2025) - EN |
| X67 System User´s Manual | 4.40 (08/27/2026) - DE 4.40 (08/31/2026) - IT 4.40 (08/31/2026) - FR 4.40 (08/27/2026) - EN 4.30 (03/25/2025) - DE 4.30 (04/01/2025) - IT 4.30 (03/28/2025) - FR 4.30 (03/25/2025) - EN |
| E-CAD (Electro or EPLAN Templates) | Version (Date) |
| X67 EPLAN P8 from V2.4 | 4.0.0 (08/20/2019) |
| M-CAD (Mechan. Templates) | Version (Date) |
| 3D File DXF/STEP X67 | 1.0 (05/15/2006) |
