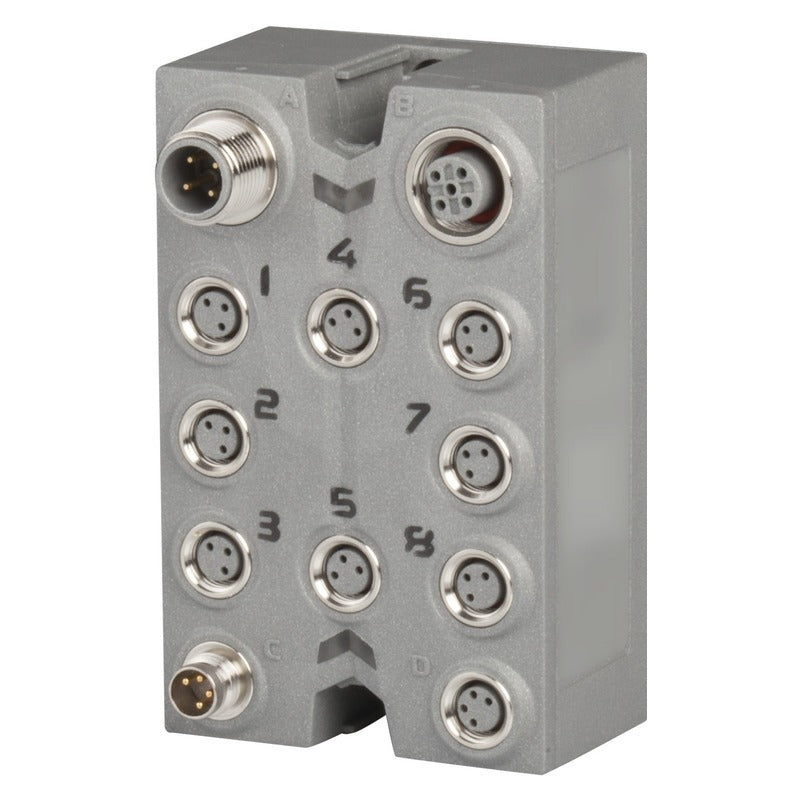

B&R X67DI1372 Digital Input Module

SKU: X67DI1372
(0)
$2,855.83
Available
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

X67DI1372 Field I/O Module | B&R

The B&R X67DI1372 is a field i/o module. 8 digital inputs 24 VDC. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Degree of protection per EN 60529: IP67.
  • Inputs: 8x M8, 3-pin.
  • Input voltage: 18 to 30 VDC.
  • Integrated protective function: Reverse polarity protection.
  • I/O power supply: Yes, using LED status indicator.
  • I/O module: 8 digital inputs 24 VDC.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
General
I/O module 8 digital inputs 24 VDC
Diagnostics
I/O power supply Yes, using LED status indicator
Connection type
X2X Link M12, B-coded
Inputs 8x M8, 3-pin
I/O power supply M8, 4-pin
Power consumption
Internal I/O 0.6 W
X2X Link power supply 0.75 W
Sensor power supply Max. 12 W
Nominal voltage 24 VDC
Voltage range 18 to 30 VDC
Integrated protective function Reverse polarity protection
Certifications
CE Yes
UKCA Yes
CRA (Cyber Resilience Act) In preparation
ATEX Zone 2, II 3G Ex nA IIA T5 Gc IP67, Ta = 0 - Max. 60°C TÜV 05 ATEX 7201X
UL cULus E115267 Industrial control equipment
HazLoc cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
KC Yes
B&R ID code 0xC5E9
Status indicators I/O function per channel, supply voltage, bus function
Input filter
Hardware ≤100 μs
Software 1 ms
Switching threshold
Low > U Vers - 5 V
High < U supp - 15 V
Input voltage 18 to 30 VDC
Input current at 24 VDC Typ. -3.5 mA
Input circuit Source
Input resistance Typ. 6.8 kΩ
Sensor power supply 0.5 A summation current
Insulation voltage between channel and bus 500 V eff
Voltage I/O power supply minus voltage drop for short-circuit protection
Voltage drop for short-circuit protection at 500 mA Max. 2 VDC
Summation current Max. 0.5 A
Short-circuit proof Yes
Electrical isolation Channel isolated from bus Channel not isolated from channel
Mounting orientation
Any Yes
Installation elevation above sea level
0 to 2000 m No limitation
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529 IP67
Temperature
Operation -25 to 60°C
Derating -
Storage -40 to 85°C
Transport -40 to 85°C
Dimensions
Width 53 mm
Height 85 mm
Depth 42 mm
Torque for connections
M8 Max. 0.4 Nm
M12 Max. 0.6 Nm
Weight 170 g
Automation Studio HW Upgrades Version (Date)
V2.7 HW Upgrade (X67DI1372) 1.0.1.0 (08/01/2018) 1.0.0.1 (06/27/2012)
V3.0 HW Upgrade (X67DI1372) 1.0.1.0 (08/01/2018) 1.0.0.1 (06/27/2012)
V4.0 HW Upgrade (X67DI1372) 1.1.0.0 (10/25/2019) 1.0.1.0 (08/01/2018)
Certificates Version (Date)
2226379 CSA Certificate of Compliance X20 X67 2026_09 (09/21/2026)
E115267 UL CoC X67 2026_01 (01/29/2026)
EU Declaration ATEX X67 2021-04 (07/02/2021)
EU Declaration PLC X67 2024-02 (02/02/2024)
TÜV 05 ATEX 7201 X 1.10 (03/24/2021)
UK Declaration PLC X67 2024-02 (02/02/2024)
X20, X67 KC certificates 2.00 (08/17/2026)
Documentation Version (Date)
Datasheet X67DI1372 2.30 (11/24/2025) - DE 2.30 (11/24/2025) - EN
X67 System User´s Manual 4.40 (08/27/2026) - DE 4.40 (08/31/2026) - IT 4.40 (08/31/2026) - FR 4.40 (08/27/2026) - EN 4.30 (03/25/2025) - DE 4.30 (04/01/2025) - IT 4.30 (03/28/2025) - FR 4.30 (03/25/2025) - EN
E-CAD (Electro or EPLAN Templates) Version (Date)
X67 EPLAN P8 from V2.4 4.0.0 (08/20/2019)
M-CAD (Mechan. Templates) Version (Date)
3D File DXF/STEP X67 1.0 (05/15/2006)

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the B&R X67DI1372 field i/o module, share your existing part number or project requirements and our team will cross-reference comparable in-stock B&R units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Automation control and signal handling in industrial machinery.
  • Integration into new and existing control architectures.
  • Maintenance, spares and retrofit of installed equipment.
  • Machine and line-level use across manufacturing and process industries.

Warranty

  • Availability: X67DI1372 is stocked for prompt shipment; contact us for current quantity and lead time.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping is available, and orders over $500 ship free.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: B&R part X67DI1372 is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
