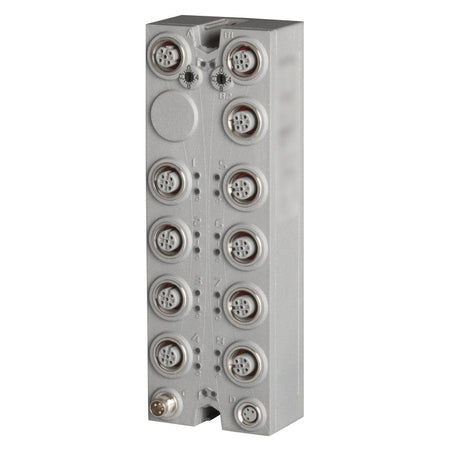

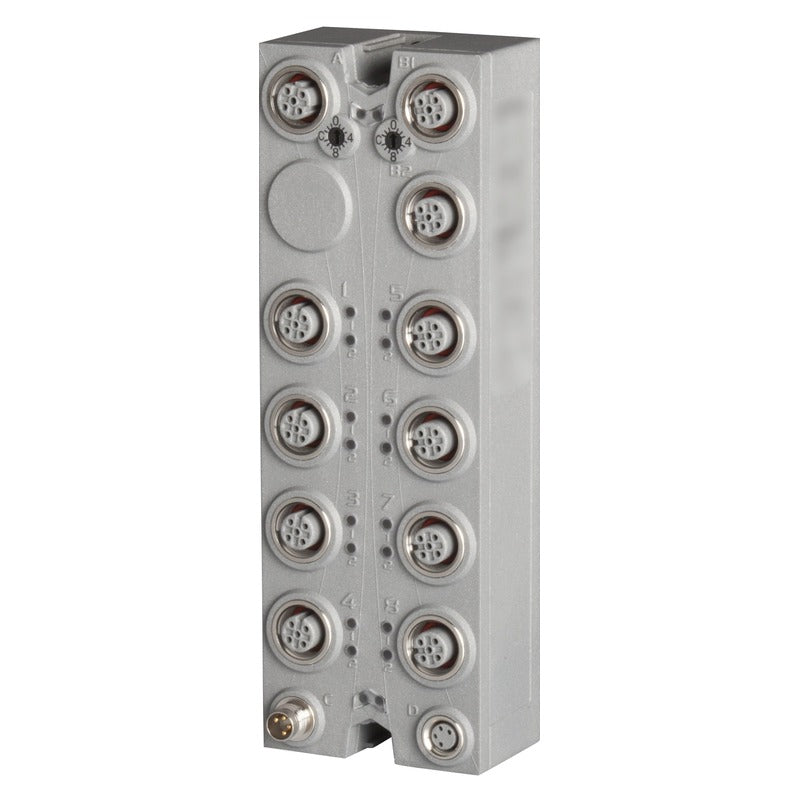

B&R X67BC8780.L12 Bus Controller

SKU: X67BC8780.L12
(0)
$5,368.25
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

X67BC8780.L12 Field I/O Module | B&R

The B&R X67BC8780.L12 is a field i/o module. pOWERLINK (V1/V2) controlled node. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Degree of protection per EN 60529: IP67.
  • Bus controller: POWERLINK (V1/V2) controlled node.
  • Type: POWERLINK (V1/V2) controlled node.
  • Fieldbus: M12, D-coded.
  • Inputs/Outputs: 8x M12, A-coded.
  • Outputs: Yes, using LED status indicator and software.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
General
Bus controller POWERLINK (V1/V2) controlled node
B&R ID code
Bus controller 0xED84
Diagnostics
Outputs Yes, using LED status indicator and software
Power supply Yes, using LED status indicator and software
Support
Dynamic node allocation (DNA) Yes
Connection type
Fieldbus M12, D-coded
Inputs/Outputs 8x M12, A-coded
I/O power supply M8, 4-pin
Power consumption
Internal I/O 2.5 W
Certifications
CE Yes
UKCA Yes
CRA (Cyber Resilience Act) In preparation
Inputs/Outputs 8 CAN interfaces
Insulation voltage between channel and bus 500 V eff
Nominal voltage 24 VDC
Status indicators TX/RX per CAN interface, supply voltage, bus function
Transfer
Physical layer 100BASE-TX
Half-duplex Yes
Full-duplex No
Autonegotiation Yes
Auto-MDI/MDIX Yes
Type POWERLINK (V1/V2) controlled node
Variant 2x M12 interface (hub), 2x female connector on module
Line length Max. 100 m between 2 stations (segment length)
Transfer rate 100 Mbit/s
Hub propagation delay 0.96 to 1 µs
Cycle time 200 µs
Type CAN
Variant 8x M12 interface (hub)
Max. distance 1000 m
Transfer rate Bus length ≤25 m: Max. 500 kbps Bus length ≤100 m: Max. 250 kbps Bus length ≤700 m: Max. 50 kbps
Hub propagation delay 250 ns
Terminating resistor Integrated in module
Voltage 9 to 32 V
Voltage drop for short-circuit protection at 0.5 A Max. 2 VDC
Summation current Max. 1.6 A (200 mA per channel)
Short-circuit proof Yes
Voltage range 9 to 32 VDC
Reverse polarity protection Yes
Electrical isolation POWERLINK isolated from channel Channel not isolated from channel
Mounting orientation
Any Yes
Installation elevation above sea level
0 to 2000 m No limitation
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529 IP67
Temperature
Operation -25 to 60°C
Derating -
Storage -40 to 85°C
Transport -40 to 85°C
Dimensions
Width 53 mm
Height 155 mm
Depth 42 mm
Torque for connections
M8 Max. 0.4 Nm
M12 Max. 0.6 Nm
Automation Studio HW Upgrades Version (Date)
V4.3 HW Upgrade (X67BC8780.L12) 2.16.0.0 (03/01/2023) 2.15.0.0 (10/13/2022) 2.14.0.0 (12/03/2021) 1.2.0.0 (09/02/2020) 1.1.0.0 (10/25/2019) 1.0.0.0 (02/16/2018)
Certificates Version (Date)
EU Declaration ATEX X67 2021-04 (07/02/2021)
EU Declaration PLC X67 2024-02 (02/02/2024)
UK Declaration PLC X67 2024-02 (02/02/2024)
Documentation Version (Date)
Data sheet X67BC8780.L12 1.27 (12/01/2025) - DE 1.27 (12/01/2025) - EN
POWERLINK Bus Controller User's Manual 2.67 (05/07/2026) - DE 2.67 (05/07/2026) - EN
X67 System User´s Manual 4.40 (08/27/2026) - DE 4.40 (08/31/2026) - IT 4.40 (08/31/2026) - FR 4.40 (08/27/2026) - EN 4.30 (03/25/2025) - DE 4.30 (04/01/2025) - IT 4.30 (03/28/2025) - FR 4.30 (03/25/2025) - EN
E-CAD (Electro or EPLAN Templates) Version (Date)
X67 EPLAN P8 from V2.4 4.0.0 (08/20/2019)
M-CAD (Mechan. Templates) Version (Date)
STEP File X67BC8xxx.L12 1.00 (04/22/2015)

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the B&R X67BC8780.L12 field i/o module, share your existing part number or project requirements and our team will cross-reference comparable in-stock B&R units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Automation control and signal handling in industrial machinery.
  • Integration into new and existing control architectures.
  • Maintenance, spares and retrofit of installed equipment.
  • Machine and line-level use across manufacturing and process industries.

Warranty

  • Availability: X67BC8780.L12 is stocked for prompt shipment; contact us for current quantity and lead time.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping is available, and orders over $500 ship free.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
