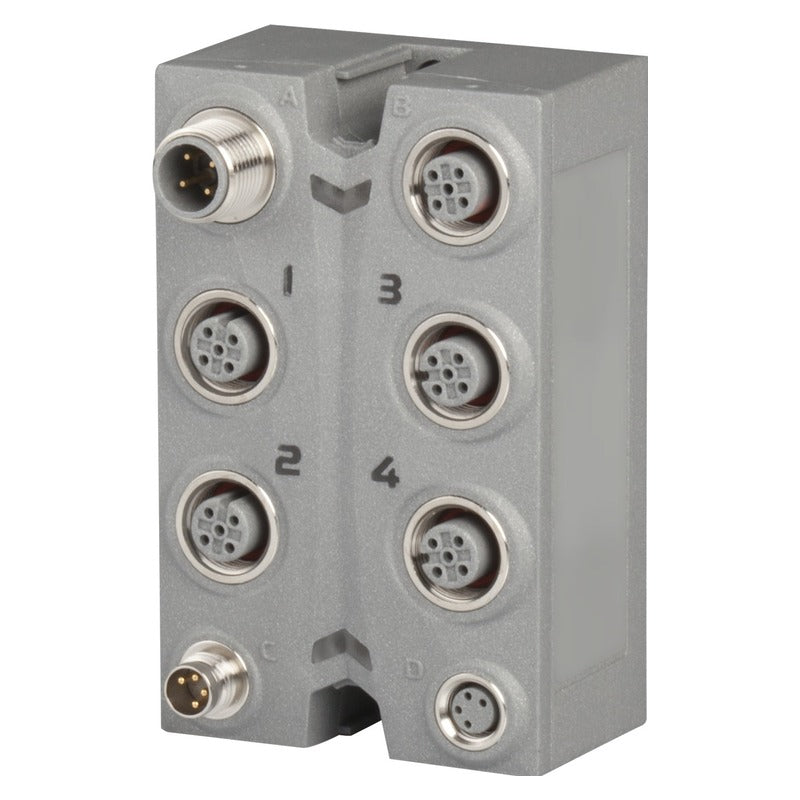

The B&R X67AI1323 is a field i/o module. 4 analog inputs 0 to 20 mA or 4 to 20 mA. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| General | |
| I/O module | 4 analog inputs 0 to 20 mA or 4 to 20 mA |
| Diagnostics | |
| Inputs | Yes, using LED status indicator and software |
| I/O power supply | Yes, using LED status indicator and software |
| Connection type | |
| X2X Link | M12, B-coded |
| Inputs | 4x M12, A-coded |
| I/O power supply | M8, 4-pin |
| Power consumption | |
| Internal I/O | 3 W |
| X2X Link power supply | 0.75 W |
| Sensor power supply | Max. 12 W |
| Nominal voltage | 24 VDC |
| Voltage range | 18 to 30 VDC |
| Integrated protective function | Reverse polarity protection |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| ATEX | Zone 2, II 3G Ex nA IIA T5 Gc IP67, Ta = 0 - Max. 60°C TÜV 05 ATEX 7201X |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| KC | Yes |
| B&R ID code | 0x16F2 |
| Status indicators | I/O function per channel, supply voltage, bus function |
| Output format | |
| Current | INT 0x0000 - 0x7FFF / 1 LSB = 0x0008 = 4.883 µA |
| Output of digital value during overload | |
| Undershoot | 0x0000 |
| Overshoot | 0x7FFF |
| Max. error | |
| Gain | 0.1% |
| Offset | 0.05% |
| Common-mode rejection | |
| DC | >50 dB |
| 50 Hz | >50 dB |
| Input filter | |
| Cutoff frequency | 1 kHz |
| Slope | 40 dB |
| Input | 0 to 20 mA or 4 to 20 mA |
| Input type | Differential input |
| Digital converter resolution | 12-bit |
| Conversion time | 400 µs for all inputs |
| Output format | INT |
| Load | <300 Ω |
| Input protection | Protection against wiring with supply voltage |
| Permissible input signal | Max. ±30 mA |
| Conversion procedure | Successive approximation |
| Max. gain drift | 0.013 %/°C |
| Max. offset drift | 0.02 %/°C |
| Common-mode range | ±11 V |
| Crosstalk between channels | <-70 dB |
| Nonlinearity | <0.1% |
| Insulation voltage between input and bus | 500 V eff |
| Voltage drop at 20 mA | Typically 4.5 V |
| Voltage | I/O power supply minus voltage drop for short-circuit protection |
| Voltage drop for short-circuit protection at 500 mA | Max. 2 VDC |
| Summation current | Max. 0.5 A |
| Short-circuit proof | Yes |
| Electrical isolation | Channel isolated from bus Channel not isolated from channel |
| Mounting orientation | |
| Any | Yes |
| Installation elevation above sea level | |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP67 |
| Temperature | |
| Operation | -25 to 60°C |
| Derating | - |
| Storage | -40 to 85°C |
| Transport | -40 to 85°C |
| Dimensions | |
| Width | 53 mm |
| Height | 85 mm |
| Depth | 42 mm |
| Torque for connections | |
| M8 | Max. 0.4 Nm |
| M12 | Max. 0.6 Nm |
| Weight | 190 g |
| Automation Studio HW Upgrades | Version (Date) |
| V2.6 HW Upgrade (X67AI1323) | 1.0.2.0 (06/23/2016) |
| V2.6 HW Upgrade (X67AI1323F) | 1.0.1.1 (10/29/2009) |
| V3.0 HW Upgrade (X67AI1323) | 1.0.2.0 (06/23/2016) |
| V3.0 HW Upgrade (X67AI1323F) | 1.0.1.1 (10/29/2009) |
| V4.0 HW Upgrade (X67AI1323) | 1.1.0.0 (10/25/2019) 1.0.2.0 (06/23/2016) |
| Certificates | Version (Date) |
| 2226379 CSA Certificate of Compliance X20 X67 | 2026_09 (09/21/2026) |
| E115267 UL CoC X67 | 2026_01 (01/29/2026) |
| EU Declaration ATEX X67 | 2021-04 (07/02/2021) |
| EU Declaration PLC X67 | 2024-02 (02/02/2024) |
| TÜV 05 ATEX 7201 X | 1.10 (03/24/2021) |
| UK Declaration PLC X67 | 2024-02 (02/02/2024) |
| X20, X67 KC certificates | 2.00 (08/17/2026) |
| Documentation | Version (Date) |
| Datasheet X67AI1323 | 3.20 (11/21/2025) - DE 3.20 (11/21/2025) - EN |
| X67 System User´s Manual | 4.40 (08/27/2026) - DE 4.40 (08/31/2026) - IT 4.40 (08/31/2026) - FR 4.40 (08/27/2026) - EN 4.30 (03/25/2025) - DE 4.30 (04/01/2025) - IT 4.30 (03/28/2025) - FR 4.30 (03/25/2025) - EN |
| E-CAD (Electro or EPLAN Templates) | Version (Date) |
| X67 EPLAN P8 from V2.4 | 4.0.0 (08/20/2019) |
| M-CAD (Mechan. Templates) | Version (Date) |
| 3D File DXF/STEP X67 | 1.20 (03/17/2025) |
