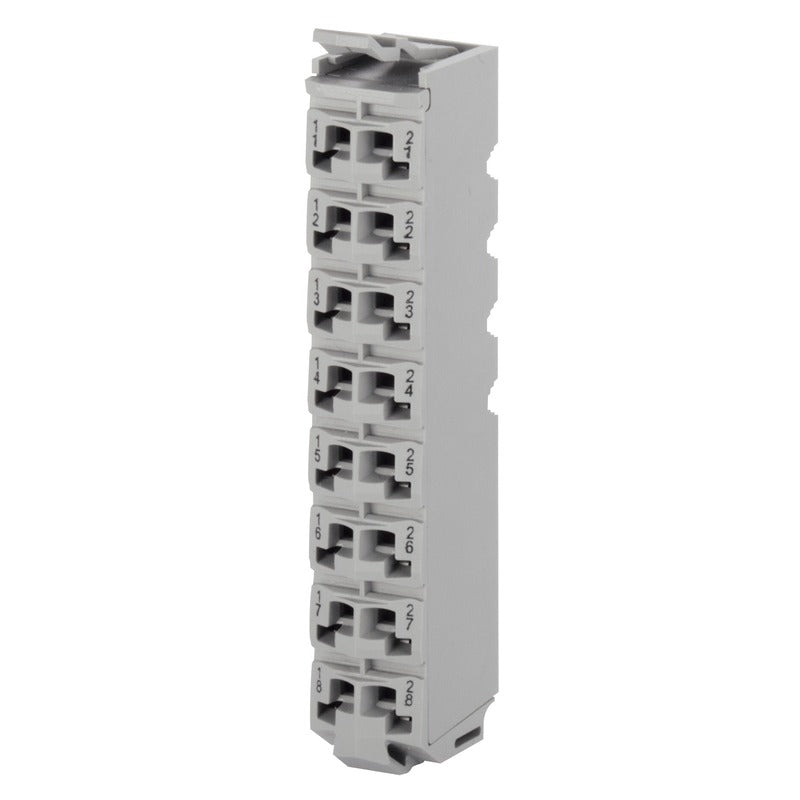

The B&R X20TB1F is a terminal block. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| UL | cULus E115267 Industrial control equipment |
| DNV | Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck) |
| LR | ENV1 |
| KR | Yes |
| ABS | Yes |
| BV | EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck |
| Connection cross section | |
| Single-wire | 0.08 to 1.50 mm² / 28 to 16 AWG |
| Fine-stranded wires | 0.25 to 1.50 mm² / 24 to 16 AWG |
| With wire end sleeve | 0.25 to 0.75 mm² / 24 to 20 AWG |
| Distance between contacts | |
| Left - Right | 4.2 mm |
| Above - Below | 8.25 mm |
| Number of pins | 16 |
| Type of terminal block | Push-in terminal |
| Push-in force per contact | Typ. 10 N |
| Cable type | Only copper wires (no aluminum wires!) |
| Wire stripping length | 7 to 9 mm |
| Nominal voltage | 24 VDC |
| Max. voltage | 50 VDC |
| Nominal current | 2 A / contact |
| Contact resistance | ≤5 mΩ |
| Temperature | |
| Operation | Corresponds to the X20 module used |
| Relative humidity | |
| Automation Studio HW Upgrades | Version (Date) |
| V4.0 HW Upgrade (X20TB1F) | 1.0.0.0 (02/17/2022) |
| Certificates | Version (Date) |
| ABS Certificate of Product Design Assessment - X20 IO Series | 2.00 (01/13/2025) |
| Compass Safe Distance Certificate - X20 | 1.21 (08/23/2021) |
| EU Data Act - X20 IO - Connected Product Information Notice | 1.00 (09/30/2025) |
| EU Declaration ATEX X20 | 2023-07 (09/05/2023) |
| FTZU 09 ATEX 0083X | 3.00 (10/12/2021) |
| KR Type Approval Certificate MIL39390-AC003 (X20 System) | 2.0 (05/05/2025) 1.0 (07/10/2019) |
| Lloyds Register (X20 only) | 1.30 (07/07/2025) 1.20 (07/20/2022) |
| RINA Type Approval Certificate - X20 / Power Panel T30 | 1.00 (05/07/2021) |
| TAA00000BJ DNV Type Approval Certificate X20 | 13.0 (05/04/2026) 12.0 (02/18/2026) 11.0 (02/27/2024) |
| UK Declaration PLC X20 | 2024-01 (01/18/2024) |
| Documentation | Version (Date) |
| Data sheet X20TB1F | 1.60 (04/22/2025) - DE 1.60 (04/22/2025) - EN |
| X20 Package leaflet ATEX/CSA | 1.4 (09/17/2024) |
| X20 System User´s Manual | 4.40 (03/10/2026) - DE 4.40 (03/12/2026) - IT 4.40 (03/12/2026) - FR 4.40 (03/10/2026) - EN |
| E-CAD (Electro or EPLAN Templates) | Version (Date) |
| X20 EPLAN P8 from V2.4 | 4.0.5 (08/31/2023) 4.0.4 (10/27/2022) |
| M-CAD (Mechan. Templates) | Version (Date) |
| 3D File DXF/STEP X20TB1F | 2.0 (01/30/2019) |
Model variants, options and firmware revisions can affect fitment. Before ordering the B&R X20TB1F terminal block, share your existing part number or project requirements and our team will cross-reference comparable in-stock B&R units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.
