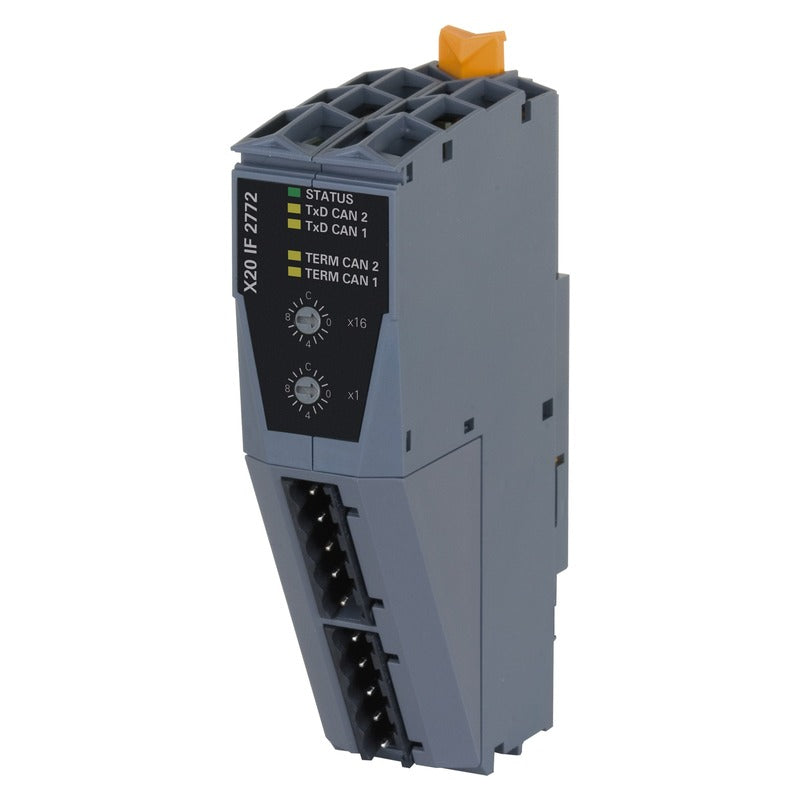

B&R X20IF2772 Interface Module

SKU: X20IF2772
(0)
$661.65
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

X20IF2772 Interface Communication Module | B&R

The B&R X20IF2772 is a interface communication module. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Degree of protection per EN 60529: IP20.
  • CCS Type Approval Certificate - X20: 1.00 (06/28/2024).
  • Power consumption: 1.2 W.
  • Communication module: 2x CAN bus.
  • 3D File DXF/STEP X20 Interface module X20IF2772: 1.0 (05/16/2006).
  • Module status: Yes, using LED status indicator.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
General
Communication module 2x CAN bus
Diagnostics
Module status Yes, using LED status indicator
Data transfer Yes, using LED status indicator
Terminating resistor Yes, using LED status indicator
Certifications
CE Yes
UKCA Yes
CRA (Cyber Resilience Act) In preparation
ATEX Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL cULus E115267 Industrial control equipment
HazLoc cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
DNV Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
CCS Yes
LR ENV1
KR Yes
ABS Yes
BV EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
KC Yes
B&R ID code 0x1F25
Status indicators Module status, data transfer, terminating resistor
Power consumption 1.2 W
Additional power dissipation caused by actuators (resistive) [W] -
Interface IF1
Signal CAN bus
Variant 5-pin male multipoint connector
Max. distance 1000 m
Transfer rate Max. 1 Mbit/s
Terminating resistor Integrated in module
Controller SJA 1000
Interface IF2
Electrical isolation PLC isolated from CAN (IF1 and IF2) and interfaces from each other
Mounting orientation
Horizontal Yes
Vertical Yes
Installation elevation above sea level
0 to 2000 m No limitation
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529 IP20
Operation
Horizontal mounting orientation -25 to 60°C
Vertical mounting orientation -25 to 50°C
Derating -
Storage -40 to 85°C
Transport -40 to 85°C
Relative humidity
Operation 5 to 95%, non-condensing
Storage 5 to 95%, non-condensing
Transport 5 to 95%, non-condensing
Note Order 2x terminal block TB2105 separately.
Slot In the X20 PLC
0TB2105.9110 Accessory terminal block, 5-pin, push-in terminal block 2.5 mm²
0TB2105.9010 Accessory terminal block, 5-pin, screw clamp terminal block 2.5 mm²
Automation Studio HW Upgrades Version (Date)
V2.6 HW Upgrade (X20IF2772) 1.0.6.0 (08/16/2012)
V2.6 HW Upgrade (X20IF2772) 1.5.0.0 (03/13/2020) 1.4.0.0 (02/20/2020) 1.3.0.0 (04/01/2019) 1.1.0.0 (01/30/2017) 1.0.7.0 (07/03/2014)
V3.0 HW Upgrade (X20IF2772) 1.0.6.0 (08/16/2012)
V3.0 HW Upgrade (X20IF2772) 1.6.0.0 (03/04/2021) 1.5.0.0 (03/13/2020) 1.4.0.0 (02/20/2020) 1.3.0.0 (04/01/2019) 1.1.0.0 (01/30/2017) 1.0.7.0 (07/03/2014)
V4.0 HW Upgrade (X20IF2772) 1.7.0.0 (07/23/2021) 1.6.0.0 (03/04/2021) 1.5.0.0 (03/13/2020) 1.4.0.0 (02/20/2020) 1.3.0.0 (04/01/2019) 1.1.0.0 (01/30/2017) 1.0.7.0 (07/03/2014)
Certificates Version (Date)
2226379 CSA Certificate of Compliance X20 X67 2026_09 (09/21/2026)
64331_A1 BV Certificate of Compliance X20 2026_05 (05/05/2026) 1.00 (11/08/2022) - DE
ABS Certificate of Product Design Assessment - X20 IO Series 2.00 (01/13/2025)
CCS Type Approval Certificate - X20 1.00 (06/28/2024)
E115267 UL Certificate of Compliance X20 2026_08_27 (08/27/2026)
EU Data Act - X20 IO - Connected Product Information Notice 1.00 (09/30/2025)
EU Declaration ATEX X20 2023-07 (09/05/2023)
EU Declaration of conformity PLC X20 2021/10 (11/08/2021)
FTZU 09 ATEX 0083X 3.00 (10/12/2021)
KR Type Approval Certificate MIL39390-AC003 (X20 System) 2.0 (05/05/2025) 1.0 (07/10/2019)
Lloyds Register (X20 only) 1.30 (07/07/2025) 1.20 (07/20/2022)
RINA Type Approval Certificate - X20 / Power Panel T30 1.00 (05/07/2021)
TAA00000BJ DNV Type Approval Certificate X20 13.0 (05/04/2026) 12.0 (02/18/2026) 11.0 (02/27/2024)
UK Declaration PLC X20 2024-01 (01/18/2024)
X20, X67 KC certificates 2.00 (08/17/2026)
Documentation Version (Date)
Datasheet X20IF2772 2.30 (02/05/2025) - DE 2.30 (02/05/2025) - EN
X20 Package leaflet ATEX/CSA 1.4 (09/17/2024)
X20 System User´s Manual 4.40 (03/10/2026) - DE 4.40 (03/12/2026) - IT 4.40 (03/12/2026) - FR 4.40 (03/10/2026) - EN
E-CAD (Electro or EPLAN Templates) Version (Date)
X20 EPLAN P8 from V2.4 4.0.5 (08/31/2023) 4.0.4 (10/27/2022)
M-CAD (Mechan. Templates) Version (Date)
3D File DXF/STEP X20 Interface module X20IF2772 1.0 (05/16/2006)
Dimensions PDF X20 Interface Module X20IF2772 1.0 (05/23/2006)

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the B&R X20IF2772 interface communication module, share your existing part number or project requirements and our team will cross-reference comparable in-stock B&R units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Automation control and signal handling in industrial machinery.
  • Integration into new and existing control architectures.
  • Maintenance, spares and retrofit of installed equipment.
  • Machine and line-level use across manufacturing and process industries.

Warranty

  • Availability: X20IF2772 is stocked for prompt shipment; contact us for current quantity and lead time.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping is available, and orders over $500 ship free.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: B&R part X20IF2772 is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What condition is the X20IF2772 supplied in?

A: Each unit is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.

Q: How quickly can the X20IF2772 ship?

A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.

Q: Can you confirm compatibility or a replacement for the X20IF2772?

A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.

X20IF2772 · Technical reference data · Independently supplied by SHLY-PLC
