| Technical Specifications |
| General |
| I/O module |

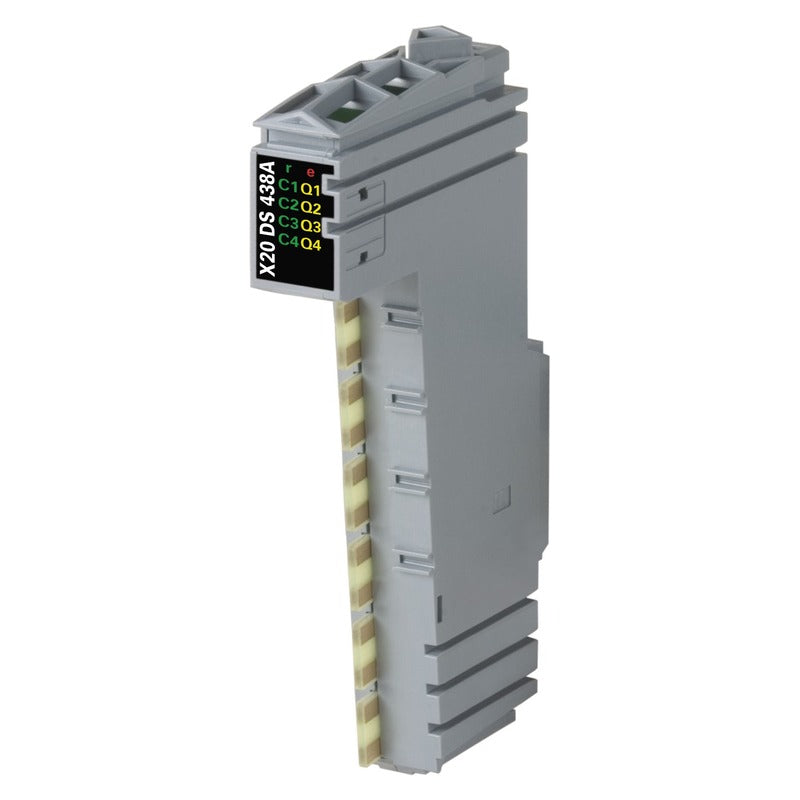

IO-Link master with 4 IO-Link interfaces |
| Diagnostics |
| Module run/error |
Yes, using LED status indicator and software |
| IO-Link operating state |
Yes, using LED status indicator and software |
| C/Q status |
Yes, using LED status indicator and software |
| Cable specification |
| Cable type |
3-pin standard sensor cable, unshielded |
| Cable length |
Max. 20 m |
| Line capacitance |
Max. 3 nF |
| Loop resistance |
Max. 6 Ω |
| Power consumption |
| Bus |
0.01 W |
| Internal I/O |
0.71 W |
| Certifications |
| CE |
Yes |
| UKCA |
Yes |
| CRA (Cyber Resilience Act) |
In preparation |
| ATEX |
Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| UL |
cULus E115267 Industrial control equipment |
| HazLoc |
cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| DNV |
Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck) |
| CCS |
Yes |
| LR |
ENV1 |
| KR |
Yes |
| ABS |
Yes |
| BV |
EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck |
| B&R ID code |
0xCAC0 |
| Status indicators |
IO-Link, operating state, module status |
| Additional power dissipation caused by actuators (resistive) [W] |
- |
| Overload protection |
| Switch-off delay |
Configurable using software |
| Switch-off duration |
Configurable using software |
| Voltage |
I/O power supply minus voltage drop for short-circuit protection |
| Voltage drop for short-circuit protection at 0.5 A |
Max. 0.3 V |
| Power consumption |
Max. 12 W per IO-Link interface |
| Short-circuit proof |
Yes |
| Transfer rates |
| COM1 |
4.8 kbaud |
| COM2 |
38.4 kbaud |
| COM3 |
230.4 kbaud |
| Limit values for COM3 |
| Max. connection capacity |
22 nF (cable + IO-Link device) |
| Max. load |
96 Ω / 250 mA |
| Data format |
1 start bit, 8 data bits, 1 parity bit (even), 1 stop bit |
| Bus level |
24 VDC (active), 0 VDC (resting voltage) |
| Switching delay |
| 0 → 1 |
<10 µs |
| 1 → 0 |
<10 µs |
| Variant |
Bipolar, positive and negative switching |
| Peak short-circuit current |
<1.3 A |
| Residual voltage |
<0.7 VDC at nominal current 0.25 A |
| Switching voltage |
I/O power supply minus voltage drop for short-circuit protection and semiconductor switch |
| Voltage drop on semiconductor switch |
Max. 0.5 VDC at 0.25 A |
| Switching frequency |
Typ. 25 kHz 300 kHz in IO-Link master mode |
| Switch-on in the event of overload shutdown or short-circuit shutdown |
Configurable with software |
| Insulation voltage between IO-Link and bus |
500 V eff |
| Nominal voltage |
24 VDC |
| Nominal output current |
0.25 A |
| Total nominal current |
Max. 1 A |
| Output circuit |
Sink or source |
| Switching frequency (resistive load) |
Max. 500 Hz |
| Output protection |
Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads |
| Input filter |
| Hardware |
300 ns |
| Software |
- |
| Switching threshold |
| Low |
<5 VDC |
| High |
>15 VDC |
| Input characteristics per EN 61131-2 |
Type 1 |
| Input circuit |
Sink |
| Input voltage |
24 VDC -15% / +20% |
| Input current at 24 VDC |
Typ. 4 mA |
| Input resistance |
Typ. 6 kΩ |
| Electrical isolation |
Bus isolated from IO-Link IO-Link not isolated from IO-Link |
| Mounting orientation |
| Horizontal |
Yes |
| Vertical |
Yes |
| Installation elevation above sea level |
| 0 to 2000 m |
No limitation |
| >2000 m |
Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 |
IP20 |
| Operation |
| Horizontal mounting orientation |
-25 to 60°C |
| Vertical mounting orientation |
-25 to 50°C |
| Derating |
- |
| Storage |
-40 to 85°C |
| Transport |
-40 to 85°C |
| Relative humidity |
| Operation |
5 to 95%, non-condensing |
| Storage |
5 to 95%, non-condensing |
| Transport |
5 to 95%, non-condensing |
| Note |
Order 1x terminal block X20TB12 separately. Order 1x bus module X20BM11 separately. |
| Pitch |
12.5 +0.2 mm |
| X20BM15 |
X20 bus module, with node number switch, 24 VDC keyed, internal I/O power supply connected through |
| X20BM11 |
X20 bus module, 24 VDC keyed, internal I/O power supply connected through |
| X20TB12 |
X20 terminal block, 12-pin, 24 VDC keyed |
| Automation Studio HW Upgrades |
Version (Date) |
| V3.0 HW Upgrade (X20DS438A) |
2.0.1.0 (12/11/2019) 1.9.1.0 (04/02/2019) 1.9.0.0 (02/21/2019) 1.8.0.0 (11/13/2018) 1.7.0.0 (05/30/2018) 1.6.1.1 (09/05/2017) |
| V4.0 HW Upgrade (X20DS438A) |
2.5.0.0 (04/24/2026) 2.4.4.0 (05/23/2025) 2.4.2.0 (08/01/2023) 2.4.0.0 (04/07/2022) 2.3.0.0 (11/30/2021) 2.2.0.0 (07/23/2021) 2.1.0.0 (03/12/2021) 2.0.1.0 (12/11/2019) 1.10.0.0 (10/25/2019) 1.9.1.0 (04/02/2019) 1.9.0.0 (02/21/2019) 1.8.0.0 (11/13/2018) 1.7.0.0 (05/30/2018) 1.6.1.1 (09/05/2017) |
| V6.0 HW Upgrade (X20DS438A) |
2.5.0.1 (08/18/2026) 2.5.0.0 (04/24/2026) 2.4.4.0 (05/23/2025) |
| Certificates |
Version (Date) |
| 2226379 CSA Certificate of Compliance X20 X67 |
2026_09 (09/21/2026) |
| 64331_A1 BV Certificate of Compliance X20 |
2026_05 (05/05/2026) 1.00 (11/08/2022) - DE |
| ABS Certificate of Product Design Assessment - X20 IO Series |
2.00 (01/13/2025) |
| CCS Type Approval Certificate - X20 |
1.00 (06/28/2024) |
| E115267 UL Certificate of Compliance X20 |
2026_08_27 (08/27/2026) |
| EU Data Act - X20 IO - Connected Product Information Notice |
1.00 (09/30/2025) |
| EU Declaration ATEX X20 |
2023-07 (09/05/2023) |
| EU Declaration of conformity PLC X20 |
2021/10 (11/08/2021) |
| FTZU 09 ATEX 0083X |
3.00 (10/12/2021) |
| KR Type Approval Certificate MIL39390-AC003 (X20 System) |
2.0 (05/05/2025) 1.0 (07/10/2019) |
| Lloyds Register (X20 only) |
1.30 (07/07/2025) 1.20 (07/20/2022) |
| TAA00000BJ DNV Type Approval Certificate X20 |
13.0 (05/04/2026) 12.0 (02/18/2026) 11.0 (02/27/2024) |
| UK Declaration PLC X20 |
2024-01 (01/18/2024) |
| X20, X67 KC certificates |
2.00 (08/17/2026) |
| Documentation |
Version (Date) |
| Data sheet X20(c)DS438A |
1.74 (03/06/2026) - DE 1.74 (03/06/2026) - EN |
| X20 Package leaflet ATEX/CSA |
1.4 (09/17/2024) |
| X20 System User´s Manual |
4.40 (03/10/2026) - DE 4.40 (03/12/2026) - IT 4.40 (03/12/2026) - FR 4.40 (03/10/2026) - EN |
| E-CAD (Electro or EPLAN Templates) |
Version (Date) |
| X20 EPLAN P8 from V2.4 |
4.0.5 (08/31/2023) 4.0.4 (10/27/2022) |
| M-CAD (Mechan. Templates) |
Version (Date) |
| 3D File DXF/STEP X20 Electronic module |
1.0 (10/17/2005) |
| 3D File STEP X20 I/O-Slice |
1.1 (03/13/2019) |
| Dimensions PDF X20 Electronic module |
1.0 (10/17/2005) |
