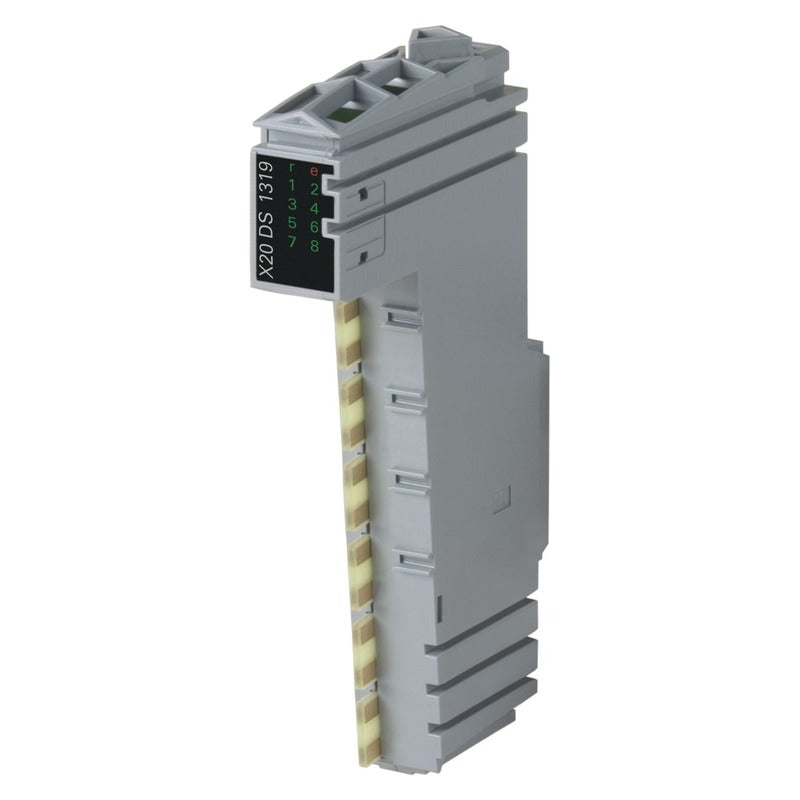

B&R X20DS1319 I/O Module

SKU: X20DS1319
(0)
$1,514.22
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

X20DS1319 Industrial Automation Component | B&R

The B&R X20DS1319 is a industrial automation component. 4 digital input channels, 4 digital channels configurable as inputs or outputs, 1 universal counter pair (2 event counters, AB counter or up/down counter), linear movement generator (A/B, direction/frequency) with up to two reference pulses, SSI absolute encoder, relative or absolute moments of input edges with μs resolution, time-triggered I/O, I/O oversampling. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Degree of protection per EN 60529: IP20.
  • Type of signal lines: Shielded lines must be used for all signal lines..
  • Encoder inputs: 24 V, asymmetrical.
  • Outputs: Yes, using LED status indicator.
  • Input voltage: 24 VDC -15% / +20%.
  • Overload characteristics of encoder power supply: Short-circuit proof, overload-proof.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
General
I/O module 4 digital input channels, 4 digital channels configurable as inputs or outputs, 1 universal counter pair (2 event counters, AB counter or up/down counter), linear movement generator (A/B, direction/frequency) with up to two reference pulses, SSI absolute encoder, relative or absolute moments of input edges with μs resolution, time-triggered I/O, I/O oversampling
Diagnostics
Module run/error Yes, using LED status indicator and software
Outputs Yes, using LED status indicator
Power consumption
Bus 0.01 W
Internal I/O 1.5 W
Certifications
CE Yes
UKCA Yes
CRA (Cyber Resilience Act) In preparation
ATEX Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL cULus E115267 Industrial control equipment
HazLoc cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
DNV Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
CCS Yes
LR ENV1
KR Yes
ABS Yes
BV EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
KC Yes
B&R ID code 0x2547
Status indicators I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W] -
Type of signal lines Shielded lines must be used for all signal lines.
Quantity 1
Encoder outputs 24 V, asymmetrical (A/B, direction/frequency)
Counter size 16/32-bit
Input filter
Hardware ≤2 µs
Software -
Switching threshold
Low <5 VDC
High >15 VDC
Quantity 4 + 4, configuration as input or output using software
Nominal voltage 24 VDC
Input voltage 24 VDC -15% / +20%
Input current at 24 VDC Approx. 1.3 mA
Input circuit Sink
Input resistance 18.4 kΩ
Additional functions SSI absolute encoder, universal counter pair, latch function for universal counter pair
Input frequency 100 kHz
Overload characteristics of encoder power supply Short-circuit proof, overload-proof
Insulation voltage between channel and bus 500 V eff
Counter size Up to 32-bit depending on encoder
Max. transfer rate 125 kbit/s
Encoder power supply Module-internal, max. 600 mA
Nominal voltage 24 V, asymmetrical
Evaluation
AB counter 4x
Event counters 2x
Up/Down counter 2x
Operating modes 2x event counter, up/down counter, AB counter
Encoder inputs 24 V, asymmetrical
Input frequency Max. 100 kHz
Signal form Square wave pulse
Switching delay
0 → 1 <2 µs
1 → 0 <2 µs
Switching frequency
Resistive load Max. 125 kHz
Inductive load See section "Switching inductive loads".
Quantity Up to 4, configuration as input or output using software
Variant Push / Pull / Push-Pull
Switching voltage 24 VDC -15% / +20%
Nominal output current 0.1 A
Total nominal current 0.4 A
Output circuit Sink and/or source
Output protection Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads
Diagnostic status Output monitoring
Leakage current when the output is switched off Max. 25 µA
Residual voltage <0.9 V at 0.1 A nominal current
Peak short-circuit current <10 A
Switch-on in the event of overload shutdown or short-circuit shutdown Approx. 10 ms (depends on the module temperature)
Braking voltage when switching off inductive loads Switching voltage + 0.6 VDC
Additional functions Clock for SSI absolute encoder, linear movement generator
Electrical isolation Channel isolated from bus Channel not isolated from channel
Mounting orientation
Horizontal Yes
Vertical Yes
Installation elevation above sea level
0 to 2000 m No limitation
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529 IP20
Operation
Horizontal mounting orientation -25 to 60°C
Vertical mounting orientation -25 to 50°C
Derating -
Storage -40 to 85°C
Transport -40 to 85°C
Relative humidity
Operation 5 to 95%, non-condensing
Storage 5 to 95%, non-condensing
Transport 5 to 95%, non-condensing
Note Order 1x terminal block X20TB12 separately. Order 1x bus module X20BM11 separately.
Pitch 12.5 +0.2 mm
X20BM15 X20 bus module, with node number switch, 24 VDC keyed, internal I/O power supply connected through
X20BM11 X20 bus module, 24 VDC keyed, internal I/O power supply connected through
X20TB12 X20 terminal block, 12-pin, 24 VDC keyed
Automation Studio HW Upgrades Version (Date)
V2.7 HW Upgrade (X20DS1319) 1.4.0.0 (06/14/2019) 1.3.1.0 (08/02/2018) 1.3.0.0 (05/30/2017)
V3.0 HW Upgrade (X20DS1319) 1.4.0.0 (06/14/2019) 1.3.1.0 (08/02/2018) 1.3.0.0 (05/30/2017)
V4.0 HW Upgrade (X20DS1319) 1.7.0.0 (07/23/2021) 1.6.0.0 (12/04/2020) 1.5.1.0 (03/04/2020) 1.5.0.0 (10/25/2019) 1.4.0.0 (06/14/2019) 1.3.1.0 (08/02/2018) 1.3.0.0 (05/30/2017)
Certificates Version (Date)
2226379 CSA Certificate of Compliance X20 X67 2026_09 (09/21/2026)
64331_A1 BV Certificate of Compliance X20 2026_05 (05/05/2026) 1.00 (11/08/2022) - DE
ABS Certificate of Product Design Assessment - X20 IO Series 2.00 (01/13/2025)
CCS Type Approval Certificate - X20 1.00 (06/28/2024)
E115267 UL Certificate of Compliance X20 2026_08_27 (08/27/2026)
EU Data Act - X20 IO - Connected Product Information Notice 1.00 (09/30/2025)
EU Declaration ATEX X20 2023-07 (09/05/2023)
EU Declaration of conformity PLC X20 2021/10 (11/08/2021)
FTZU 09 ATEX 0083X 3.00 (10/12/2021)
KR Type Approval Certificate MIL39390-AC003 (X20 System) 2.0 (05/05/2025) 1.0 (07/10/2019)
Lloyds Register (X20 only) 1.30 (07/07/2025) 1.20 (07/20/2022)
RINA Type Approval Certificate - X20 / Power Panel T30 1.00 (05/07/2021)
Safe cutoff of potential groups 2.4 (11/29/2023) - EN
TAA00000BJ DNV Type Approval Certificate X20 13.0 (05/04/2026) 12.0 (02/18/2026) 11.0 (02/27/2024)
UK Declaration PLC X20 2024-01 (01/18/2024)
X20, X67 KC certificates 2.00 (08/17/2026)
Documentation Version (Date)
Data sheet X20DS1319 3.42 (10/01/2025) - DE 3.42 (10/01/2025) - EN
X20 Package leaflet ATEX/CSA 1.4 (09/17/2024)
X20 System User´s Manual 4.40 (03/10/2026) - DE 4.40 (03/12/2026) - IT 4.40 (03/12/2026) - FR 4.40 (03/10/2026) - EN
E-CAD (Electro or EPLAN Templates) Version (Date)
X20 EPLAN P8 from V2.4 4.0.5 (08/31/2023) 4.0.4 (10/27/2022)
M-CAD (Mechan. Templates) Version (Date)
3D File DXF/STEP X20 Electronic module 1.0 (10/17/2005)
3D File STEP X20 I/O-Slice 1.1 (03/13/2019)
Dimensions PDF X20 Electronic module 1.0 (10/17/2005)

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the B&R X20DS1319 industrial automation component, share your existing part number or project requirements and our team will cross-reference comparable in-stock B&R units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Automation control and signal handling in industrial machinery.
  • Integration into new and existing control architectures.
  • Maintenance, spares and retrofit of installed equipment.
  • Machine and line-level use across manufacturing and process industries.

Warranty

  • Availability: X20DS1319 is stocked for prompt shipment; contact us for current quantity and lead time.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping is available, and orders over $500 ship free.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: B&R part X20DS1319 is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
