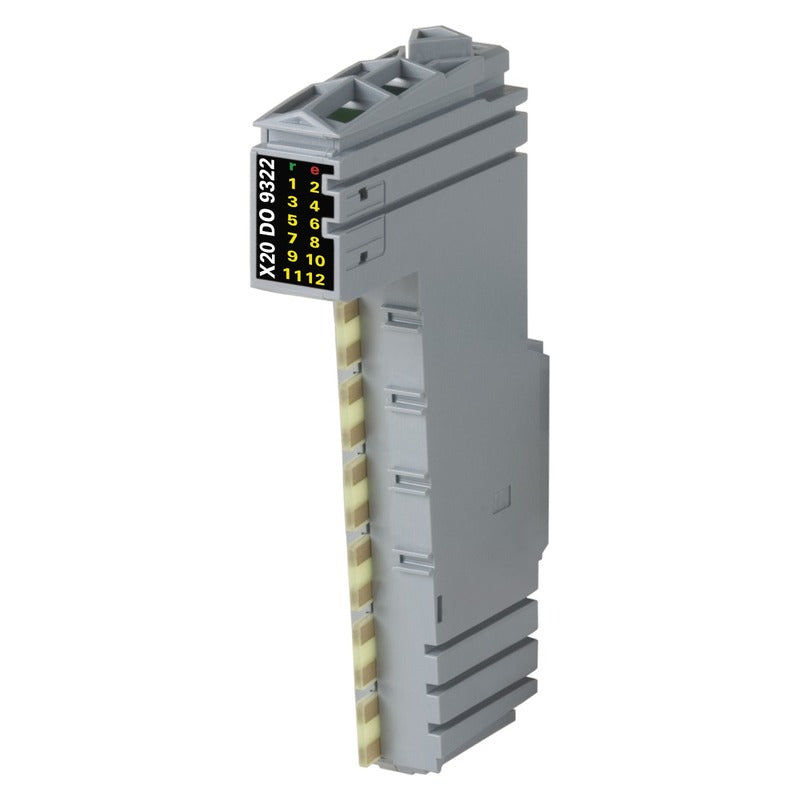

The B&R X20DO9322-C01 is a digital output module. 12 digital outputs 24 VDC for 1-wire connections. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| General | |
| I/O module | 12 digital outputs 24 VDC for 1-wire connections |
| Diagnostics | |
| Module run/error | Yes, using LED status indicator and software |
| Outputs | Yes, using LED status indicator and software (output error status) |
| Power consumption | |
| Bus | 0.26 W |
| Internal I/O | 1.15 W |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| UL | cULus E115267 Industrial control equipment cULus E537419 Engine generator controller |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| DNV | Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck) |
| CCS | Yes |
| LR | ENV1 |
| KR | Yes |
| ABS | Yes |
| BV | EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck |
| KC | Yes |
| B&R ID code | 0x1B9A |
| Status indicators | I/O function per channel, operating state, module status |
| Additional power dissipation caused by actuators (resistive) [W] | +0.63 |
| Switching delay | |
| 0 → 1 | <300 µs |
| 1 → 0 | <300 µs |
| Switching frequency | |
| Resistive load | Max. 500 Hz |
| Inductive load | See section "Switching inductive loads". |
| Variant | Current-sourcing FET |
| Nominal voltage | 24 VDC |
| Switching voltage | 24 VDC -15% / +20% |
| Nominal output current | 0.5 A |
| Total nominal current | 6 A |
| Connection type | 1-wire connections |
| Output circuit | Source |
| Output protection | Thermal shutdown in the event of overcurrent or short circuit (see value "Short-circuit peak current") Internal freewheeling diode for switching inductive loads (see section "Switching inductive loads") |
| Diagnostic status | Output monitoring with 10 ms delay |
| Leakage current when the output is switched off | 5 µA |
| R DS(on) | 210 mΩ |
| Peak short-circuit current | <12 A |
| Switch-on in the event of overload shutdown or short-circuit shutdown | Approx. 10 ms (depends on the module temperature) |
| Braking voltage when switching off inductive loads | Typ. 50 VDC |
| Insulation voltage between channel and bus | 500 V eff |
| Electrical isolation | Channel isolated from bus Channel not isolated from channel and I/O power supply |
| Mounting orientation | |
| Horizontal | Yes |
| Vertical | Yes |
| Installation elevation above sea level | |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
| Operation | |
| Horizontal mounting orientation | -25 to 60°C |
| Vertical mounting orientation | -25 to 50°C |
| Derating | See section "Derating". |
| Storage | -40 to 85°C |
| Transport | -40 to 85°C |
| Relative humidity | |
| Operation | 5 to 95%, non-condensing |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| Note | Order 1x terminal block X20TB12 separately. Order 1x bus module X20BM11 separately. |
| Pitch | 12.5 +0.2 mm |
| X20BM15 | X20 bus module, with node number switch, 24 VDC keyed, internal I/O power supply connected through |
| X20BM11 | X20 bus module, 24 VDC keyed, internal I/O power supply connected through |
| X20TB12 | X20 terminal block, 12-pin, 24 VDC keyed |
| Automation Studio HW Upgrades | Version (Date) |
| V2.7 HW Upgrade (X20DO9322) | 1.1.0.0 (09/25/2019) 1.0.3.0 (03/07/2016) |
| V3.0 HW Upgrade (X20DO9322) | 1.3.0.0 (02/27/2020) 1.1.0.0 (09/25/2019) 1.0.3.0 (03/07/2016) |
| V4.0 HW Upgrade (X20DO9322) | 1.7.0.0 (10/01/2024) 1.6.0.0 (10/18/2022) 1.5.0.0 (10/22/2021) 1.4.0.0 (07/23/2021) 1.3.0.0 (02/27/2020) 1.2.0.0 (10/25/2019) 1.1.0.0 (09/25/2019) 1.0.3.0 (03/07/2016) |
| V6.0 HW Upgrade (X20DO9322) | 1.7.0.1 (08/18/2026) 1.7.0.0 (10/01/2024) |
| Certificates | Version (Date) |
| 2226379 CSA Certificate of Compliance X20 X67 | 2026_09 (09/21/2026) |
| 64331_A1 BV Certificate of Compliance X20 | 2026_05 (05/05/2026) 1.00 (11/08/2022) - DE |
| ABS Certificate of Product Design Assessment - X20 IO Series | 2.00 (01/13/2025) |
| CCS Type Approval Certificate - X20 | 1.00 (06/28/2024) |
| E115267 UL Certificate of Compliance X20 | 2026_08_27 (08/27/2026) |
| E537419 UL Certificate of Compliance X20 | 2026-07 (07/27/2026) |
| EU Data Act - X20 IO - Connected Product Information Notice | 1.00 (09/30/2025) |
| EU Declaration ATEX X20 | 2023-07 (09/05/2023) |
| EU Declaration of conformity PLC X20 | 2021/10 (11/08/2021) |
| FTZU 09 ATEX 0083X | 3.00 (10/12/2021) |
| KR Type Approval Certificate MIL39390-AC003 (X20 System) | 2.0 (05/05/2025) 1.0 (07/10/2019) |
| Lloyds Register (X20 only) | 1.30 (07/07/2025) 1.20 (07/20/2022) |
| RINA Type Approval Certificate - X20 / Power Panel T30 | 1.00 (05/07/2021) |
| Safe cutoff of potential groups | 2.4 (11/29/2023) - EN |
| TAA00000BJ DNV Type Approval Certificate X20 | 13.0 (05/04/2026) 12.0 (02/18/2026) 11.0 (02/27/2024) |
| X20, X67 KC certificates | 2.00 (08/17/2026) |
| Documentation | Version (Date) |
| Data sheet X20(c)DO9322 | 3.22 (02/20/2026) - DE 3.22 (02/20/2026) - EN |
| X20 Package leaflet ATEX/CSA | 1.4 (09/17/2024) |
| X20 System User´s Manual | 4.40 (03/10/2026) - DE 4.40 (03/12/2026) - IT 4.40 (03/12/2026) - FR 4.40 (03/10/2026) - EN |
| E-CAD (Electro or EPLAN Templates) | Version (Date) |
| X20 EPLAN P8 from V2.4 | 4.0.5 (08/31/2023) 4.0.4 (10/27/2022) |
| M-CAD (Mechan. Templates) | Version (Date) |
| 3D File DXF/STEP X20 Electronic module | 1.0 (10/17/2005) |
| 3D File STEP X20 I/O-Slice | 1.1 (03/13/2019) |
| Dimensions PDF X20 Electronic module | 1.0 (10/17/2005) |
