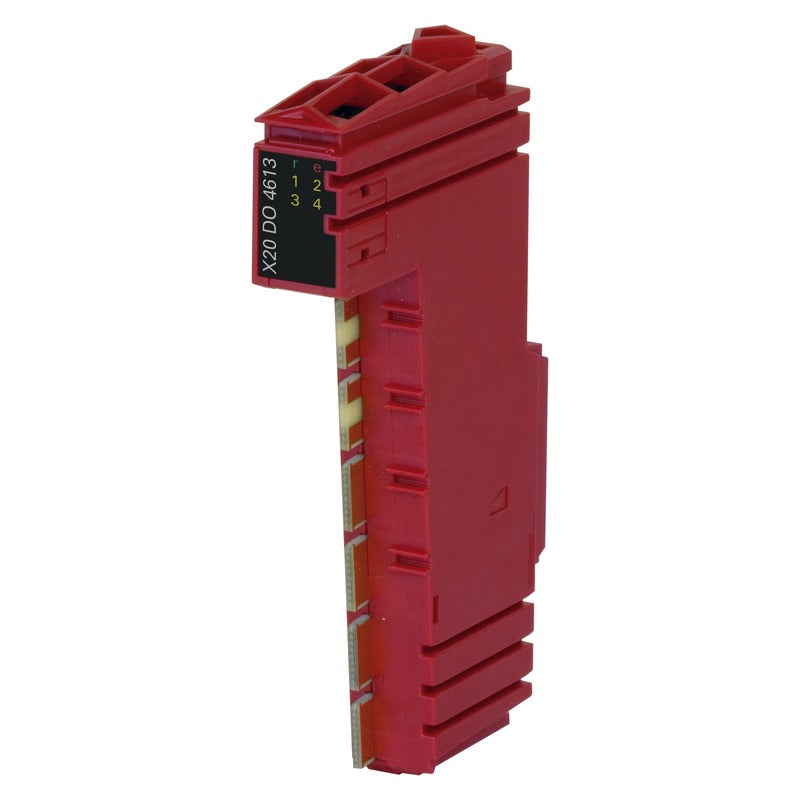

The B&R X20DO4613 is a digital output module. 4 digital outputs for controlling external power triacs or non-parallel thyristors. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| General | |
| I/O module | 4 digital outputs for controlling external power triacs or non-parallel thyristors |
| Diagnostics | |
| Module run/error | Yes, using LED status indicator and software |
| Outputs | Yes, using LED status indicator |
| Power consumption | |
| Bus | 0.8 W |
| Internal I/O | - |
| External I/O | - |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| KC | Yes |
| B&R ID code | 0xAD05 |
| Status indicators | I/O function per channel, operating state, module status |
| Additional power dissipation caused by actuators (resistive) [W] | +1 W |
| Nominal current at 25°C | |
| Nominal output current | 80 mA |
| Total nominal current | 320 mA |
| Current over entire temperature range | |
| Output current | 50 mA |
| Summation current | 200 mA |
| Phase-angle control | |
| Area | 5 to 95% |
| Resolution | 1% |
| Accuracy (60 to 240 VAC) | <100 μs |
| Insulation voltages | |
| Channel - Bus | Tested at 2300 VAC |
| Channel - Channel | Tested at 2300 VAC |
| Protective circuit | |
| External | Generally fuse |
| Internal | Snubber circuit (RC element) and varistor |
| Variant | Opto-triac |
| Circuit | Normally open contact |
| Nominal voltage | 48 to 240 VAC |
| Max. voltage | 264 VAC |
| Rated frequency | 47 to 63 Hz |
| Connection type | 2-wire connections |
| Zero-crossing detection | Yes |
| Holding current | Max. 3.5 mA |
| Leakage current | Max. 1.5 mA (per channel) |
| Residual voltage (on-state voltage) | Max. 3 V |
| Voltage monitoring L - N | No |
| Recommended wiring | Twisted pair cabling to the terminal pairs |
| Line length | Max. 10 m |
| Overvoltage protection between L and N | Yes |
| Electrical isolation | Channel isolated from channel, bus and I/O power supply |
| Mounting orientation | |
| Horizontal | Yes |
| Vertical | Yes |
| Installation elevation above sea level | |
| 0 to 2000 m | No limitation |
| >2000 m | Not permitted |
| Degree of protection per EN 60529 | IP20 |
| Operation | |
| Horizontal mounting orientation | -25 to 60°C |
| Vertical mounting orientation | -25 to 50°C |
| Derating | - |
| Storage | -40 to 85°C |
| Transport | -40 to 85°C |
| Relative humidity | |
| Operation | 5 to 95%, non-condensing |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| Note | Order 1x terminal block X20TB32 separately. Order 1x bus module X20BM12 separately. |
| Pitch | 12.5 +0.2 mm |
| X20BM12 | X20 bus module, 240 VAC keyed, internal I/O power supply connected through |
| X20TB32 | X20 terminal block, 12-pin, 240 VAC keyed |
| Automation Studio HW Upgrades | Version (Date) |
| V2.7 HW Upgrade (X20DO4613) | 1.2.0.0 (12/23/2016) |
| V3.0 HW Upgrade (X20DO4613) | 1.2.0.0 (12/23/2016) |
| V4.0 HW Upgrade (X20DO4613) | 1.4.1.0 (03/16/2023) 1.4.0.0 (07/23/2021) 1.3.0.0 (10/25/2019) 1.2.0.0 (12/23/2016) |
| Certificates | Version (Date) |
| 2226379 CSA Certificate of Compliance X20 X67 | 2026_09 (09/21/2026) |
| E115267 UL Certificate of Compliance X20 | 2026_08_27 (08/27/2026) |
| EU Data Act - X20 IO - Connected Product Information Notice | 1.00 (09/30/2025) |
| EU Declaration ATEX X20 | 2023-07 (09/05/2023) |
| EU Declaration of conformity PLC X20 | 2021/10 (11/08/2021) |
| FTZU 09 ATEX 0083X | 3.00 (10/12/2021) |
| UK Declaration PLC X20 | 2024-01 (01/18/2024) |
| X20, X67 KC certificates | 2.00 (08/17/2026) |
| Documentation | Version (Date) |
| Data sheet X20DO4613 | 2.50 (10/01/2024) - DE 2.50 (10/01/2024) - EN |
| X20 Package leaflet ATEX/CSA | 1.4 (09/17/2024) |
| X20 System User´s Manual | 4.40 (03/10/2026) - DE 4.40 (03/12/2026) - IT 4.40 (03/12/2026) - FR 4.40 (03/10/2026) - EN |
| E-CAD (Electro or EPLAN Templates) | Version (Date) |
| X20 EPLAN P8 from V2.4 | 4.0.5 (08/31/2023) 4.0.4 (10/27/2022) |
| M-CAD (Mechan. Templates) | Version (Date) |
| 3D File DXF/STEP X20 Electronic module | 1.0 (10/17/2005) |
| 3D File STEP X20 I/O-Slice | 1.1 (03/13/2019) |
| Dimensions PDF X20 Electronic module | 1.0 (10/17/2005) |
