Technical parameters compiled from the manufacturer data sheet and reference documentation.

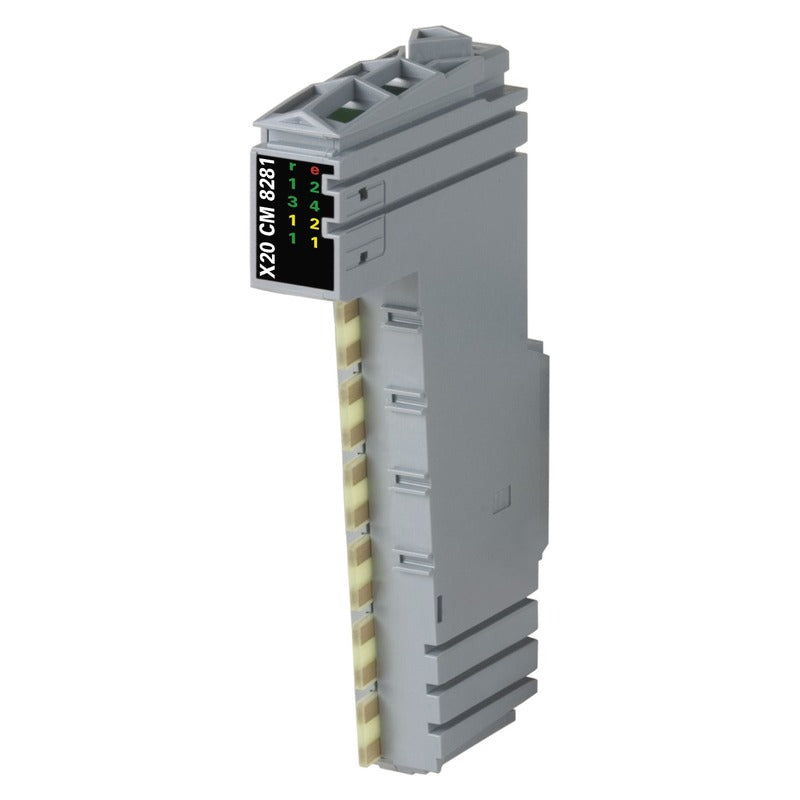

| Technical Specifications |
| General |
| I/O module |
4 digital inputs, 2 digital outputs, 1 analog input, 1 analog output, special functions |
| Diagnostics |
| Module run/error |
Yes, using LED status indicator and software |
| Analog inputs |
Yes, using LED status indicator and software |
| Digital outputs |
Yes, using LED status indicator and software (output error status) |
| Power consumption |
| Bus |
0.01 W |
| Internal I/O |
1.75 W |
| Certifications |
| CE |
Yes |
| UKCA |
Yes |
| CRA (Cyber Resilience Act) |
In preparation |
| ATEX |
Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| UL |
cULus E115267 Industrial control equipment |
| HazLoc |
cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| DNV |
Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck) |
| CCS |
Yes |
| LR |
ENV1 |
| KR |
Yes |
| ABS |
Yes |
| BV |
EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck |
| KC |
Yes |
| B&R ID code |
0x24C3 |
| Status indicators |
I/O function per channel, operating state, module status |
| Additional power dissipation caused by actuators (resistive) [W] |
- |
| Input filter |
| Hardware |
≤2 µs |
| Software |
Default 1 ms, configurable between 0 and 25 ms in 0.2 ms increments |
| Switching threshold |
| Low |
<5 VDC |
| High |
>15 VDC |
| Quantity |
4 |
| Nominal voltage |
24 VDC |
| Input characteristics per EN 61131-2 |
Type 1 |
| Input voltage |
24 VDC -15% / +20% |
| Input current at 24 VDC |
Typ. 3.3 mA |
| Input circuit |
Sink |
| Connection type |
1-wire connections |
| Input resistance |
Typ. 7.18 kΩ |
| Additional functions |
20 kHz event counting, gate measurement |
| Insulation voltage between channel and bus |
500 V eff |
| Quantity |
2 |
| Signal form |
Square wave pulse |
| Evaluation |
Each negative edge, cyclic counter |
| Input frequency |
Max. 20 kHz |
| Counter 1 |
Input 1 |
| Counter 2 |
Input 3 |
| Counter frequency |
Max. 20 kHz |
| Counter size |
16-bit |
| Counter frequency |
| Internal |
48 MHz, 24 MHz, 12 MHz, 6 MHz, 3 MHz, 1.5 MHz, 750 kHz, 375 kHz, 187.5 kHz |
| Quantity |
1 |
| Evaluation |
Positive edge - Negative edge |
| Length of pause between pulses |
≥100 µs |
| Pulse length |
≥20 µs |
| Supported inputs |
Input 4 |
| Digital converter resolution |
| Voltage |
±12-bit |
| Current |
12-bit |
| Output format |
| Voltage |
INT 0x8001 - 0x7FFF / 1 LSB = 0x0008 = 2.441 mV |
| Current |
INT 0x0000 - 0x7FFF / 1 LSB = 0x0008 = 4.883 µA |
| Voltage |
INT 0x8001 - 0x7FFF / 1 LSB = 0x0010 = 4.882 mV |
| Current |
INT 0x0000 - 0x7FFF / 1 LSB = 0x0010 = 9.766 µA |
| Input impedance in signal range |
| Voltage |
>1 MΩ |
| Current |
- |
| Load |
| Voltage |
- |
| Current |
<300 Ω |
| Permissible input signal |
| Voltage |
Max. ±15 V |
| Current |
Max. ±50 mA |
| Undershoot |
| Voltage |
0x8001 |
| Current |
0x0000 |
| Overshoot |
| Voltage |
0x7FFF |
| Current |
0x7FFF |
| Voltage |
| Gain |
0.08% |
| Offset |
0.02% |
| Gain |
0.04% |
| Offset |
0.0225% |
| Current |
| Gain |
0 to 20 mA = 0.08% / 4 to 20 mA = 0.1% |
| Offset |
0 to 20 mA = 0.03% / 4 to 20 mA = 0.16% |
| Gain |
0.05% |
| Offset |
0.125% |
| Max. gain drift |
| Voltage |
0.01%/°C |
| Current |
0 to 20 mA = 0.009 %/°C 4 to 20 mA = 0.0113 %/°C |
| Voltage |
0.012%/°C |
| Current |
0.014 %/°C |
| Max. offset drift |
| Voltage |
0.002%/°C |
| Current |
0 to 20 mA = 0.004 %/°C 4 to 20 mA = 0.005 %/°C |
| Voltage |
0.0075% / °C |
| Current |
0.03 %/°C |
| Nonlinearity |
| Voltage |
<0.02% |
| Current |
<0.02% |
| Input |
±10 V or 0 to 20 mA / 4 to 20 mA, via different terminal connections |
| Input type |
Single-ended |
| Conversion time |
400 µs, conversion runs asynchronous to the X2X Link cycle |
| Output format |
INT |
| Input protection |
Protection against wiring with supply voltage |
| Conversion procedure |
Successive approximation |
| Input filter |
Second-order low-pass filter / Cutoff frequency 1 kHz |
| Switching delay |
| 0 → 1 |
<250 µs |
| 1 → 0 |
<270 µs |
| Switching frequency |
| Resistive load |
Max. 100 Hz |
| Inductive load |
See section "Switching inductive loads". |
| Execution |
Current-sourcing FET |
| Switching voltage |
24 VDC -15% / +20% |
| Nominal output current |
0.5 A |
| Total nominal current |
1 A |
| Output circuit |
Source |
| Output protection |
Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads, reverse polarity protection |
| Diagnostic status |
Output monitoring with 10 ms delay |
| Leakage current when the output is switched off |
5 µA |
| R DS(on) |
105 mΩ |
| Peak short-circuit current |
<14 A |
| Switch-on in the event of overload shutdown or short-circuit shutdown |
Approx. 10 ms (depends on the module temperature) |
| Braking voltage when switching off inductive loads |
Typ. 50 VDC |
| Load per channel |
| Voltage |
Max. ±10 mA, load ≥ 1 kΩ |
| Current |
Max. load is 400 Ω |
| Error caused by load change |
| Voltage |
Max. 0.02%, from 10 MΩ → 1 kΩ, resistive |
| Current |
Max. 0.5%, from 1 Ω → 400 Ω, resistive |
| Output |
±10 V or 0 to 20 mA, via different terminal connections |
| Digital converter resolution |
12-bit |
| Conversion time |
300 µs, conversion runs asynchronous to the X2X Link cycle |
| Settling time on output change over entire range |
1 ms |
| Switch on/off behavior |
Internal enable relay for startup and errors |
| Output protection |
Short-circuit proof |
| Nonlinearity |
<0.1% |
| Electrical isolation |
Channel isolated from bus Channel not isolated from channel |
| Mounting orientation |
| Horizontal |
Yes |
| Vertical |
Yes |
| Installation elevation above sea level |
| 0 to 2000 m |
No limitation |
| >2000 m |
Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 |
IP20 |
| Operation |
| Horizontal mounting orientation |
-25 to 60°C |
| Vertical mounting orientation |
-25 to 50°C |
| Derating |
See section "Derating". |
| Storage |
-40 to 85°C |
| Transport |
-40 to 85°C |
| Relative humidity |
| Operation |
5 to 95%, non-condensing |
| Storage |
5 to 95%, non-condensing |
| Transport |
5 to 95%, non-condensing |
| Note |
Order 1x terminal block X20TB12 separately. Order 1x bus module X20BM11 separately. |
| Pitch |
12.5 +0.2 mm |
| X20BM15 |
X20 bus module, with node number switch, 24 VDC keyed, internal I/O power supply connected through |
| X20BM11 |
X20 bus module, 24 VDC keyed, internal I/O power supply connected through |
| X20TB12 |
X20 terminal block, 12-pin, 24 VDC keyed |
| Automation Studio HW Upgrades |
Version (Date) |
| V2.6 HW Upgrade (X20CM8281) |
1.2.0.0 (09/04/2019) 1.1.0.0 (08/29/2019) 1.0.4.0 (12/11/2015) |
| V3.0 HW Upgrade (X20CM8281) |
1.2.0.0 (09/04/2019) 1.1.0.0 (08/29/2019) 1.0.4.0 (12/11/2015) |
| V4.0 HW Upgrade (X20CM8281) |
1.5.0.0 (10/03/2023) 1.4.0.0 (07/23/2021) 1.3.0.0 (10/25/2019) 1.2.0.0 (09/04/2019) 1.1.0.0 (08/29/2019) 1.0.4.0 (12/11/2015) |
| Certificates |
Version (Date) |
| 2226379 CSA Certificate of Compliance X20 X67 |
2026_09 (09/21/2026) |
| 64331_A1 BV Certificate of Compliance X20 |
2026_05 (05/05/2026) 1.00 (11/08/2022) - DE |
| ABS Certificate of Product Design Assessment - X20 IO Series |
2.00 (01/13/2025) |
| CCS Type Approval Certificate - X20 |
1.00 (06/28/2024) |
| Compass Safe Distance Certificate - X20 |
1.21 (08/23/2021) |
| E115267 UL Certificate of Compliance X20 |
2026_08_27 (08/27/2026) |
| EU Data Act - X20 IO - Connected Product Information Notice |
1.00 (09/30/2025) |
| EU Declaration ATEX X20 |
2023-07 (09/05/2023) |
| EU Declaration of conformity PLC X20 |
2021/10 (11/08/2021) |
| FTZU 09 ATEX 0083X |
3.00 (10/12/2021) |
| KR Type Approval Certificate MIL39390-AC003 (X20 System) |
2.0 (05/05/2025) 1.0 (07/10/2019) |
| Lloyds Register (X20 only) |
1.30 (07/07/2025) 1.20 (07/20/2022) |
| RINA Type Approval Certificate - X20 / Power Panel T30 |
1.00 (05/07/2021) |
| TAA00000BJ DNV Type Approval Certificate X20 |
13.0 (05/04/2026) 12.0 (02/18/2026) 11.0 (02/27/2024) |
| UK Declaration PLC X20 |
2024-01 (01/18/2024) |
| X20, X67 KC certificates |
2.00 (08/17/2026) |
| Documentation |
Version (Date) |
| Data sheet X20CM8281 |
3.21 (08/28/2025) - DE 3.21 (08/28/2025) - EN |
| X20 Package leaflet ATEX/CSA |
1.4 (09/17/2024) |
| X20 System User´s Manual |
4.40 (03/10/2026) - DE 4.40 (03/12/2026) - IT 4.40 (03/12/2026) - FR 4.40 (03/10/2026) - EN |
| E-CAD (Electro or EPLAN Templates) |
Version (Date) |
| X20 EPLAN P8 from V2.4 |
4.0.5 (08/31/2023) 4.0.4 (10/27/2022) |
| M-CAD (Mechan. Templates) |
Version (Date) |
| 3D File DXF/STEP X20 Electronic module |
1.0 (10/17/2005) |
| 3D File STEP X20 I/O-Slice |
1.1 (03/13/2019) |
| Dimensions PDF X20 Electronic module |
1.0 (10/17/2005) |
