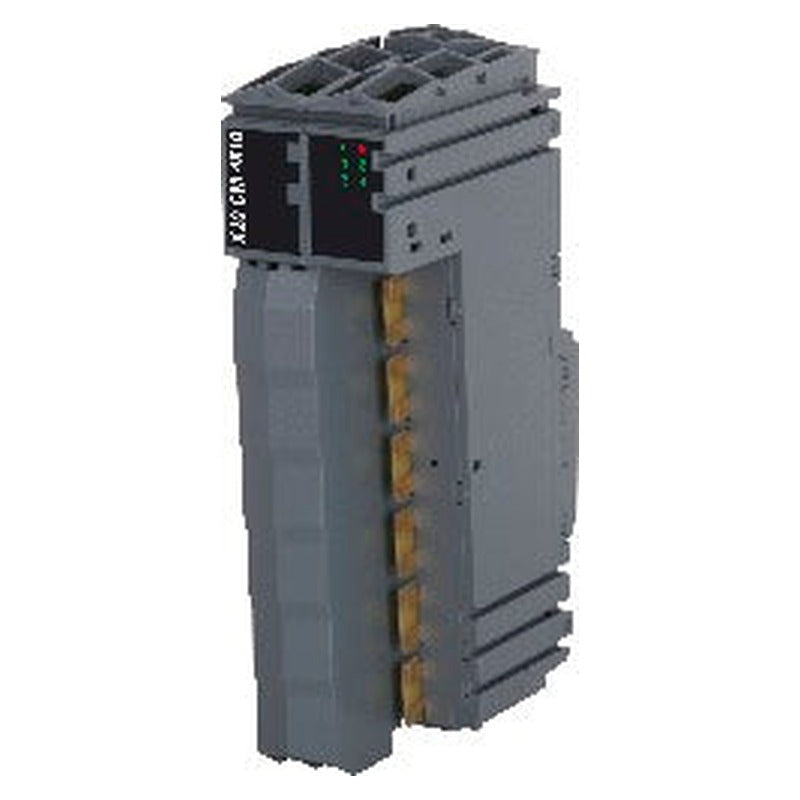

B&R X20CM4810
B&R X20CM4810

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

B&R

B&R X20CM4810 Mixed I/O Module

SKU: X20CM4810
(0)
$1,298.22
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

X20CM4810 Mixed I/O Module | B&R

The B&R X20CM4810 is a mixed i/o module. x20 4-channel analog input module for vibration measurement and analysis of condition monitoring tasks. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Degree of protection per EN 60529: IP20.
  • Input type: IEPE sensor: Acceleration.
  • At minimum supply voltage: Starting at 17 V (or greater) for more than 1 ms.
  • Sensor power supply: IEPE, 5 mA constant current source (4.9 - 5.5 mA), can be switched off for each channel.
  • Digital converter resolution: 24-bit.
  • I/O module: X20 4-channel analog input module for vibration measurement and analysis of condition monitoring tasks.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
General
I/O module X20 4-channel analog input module for vibration measurement and analysis of condition monitoring tasks
Diagnostics
Module run/error Yes, using LED status indicator and software
Power consumption
Bus 0.01 W
Internal I/O 2.5 W
Certifications
CE Yes
UKCA Yes
CRA (Cyber Resilience Act) In preparation
ATEX Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL cULus E115267 Industrial control equipment
HazLoc cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
Insulation voltage between channel and bus 500 V eff
Nominal voltage 24 VDC ±20%
B&R ID code 0xC8F9
Status indicators Run, error, vibration inputs 1 to 4
Open-circuit detection
Per channel Yes
At minimum supply voltage Starting at 17 V (or greater) for more than 1 ms
At nominal supply voltage Starting at 21.3 V (or greater) for more than 1 ms
At maximum supply voltage Starting at 25.5 V (or greater) for more than 1 ms
Quantity 4
Input type IEPE sensor: Acceleration
Digital converter resolution 24-bit
Permissible input signal ±10 VAC
Conversion procedure Sigma-delta
Type Vibration input
Sampling frequency 51.5625 kHz
Input high pass cutoff frequency 34 mHz
Input low pass cutoff frequency 19.75 kHz
Downsampling 200 Hz, 500 Hz, 1 kHz, 2 kHz, 5 kHz, 10 kHz (configurable)
Frequency resolution of spectra 0.0629 Hz, 0.1574 Hz, 0.3147 Hz, 0.6294 Hz, 1.5736 Hz, 3.1471 Hz
Sensor power supply IEPE, 5 mA constant current source (4.9 - 5.5 mA), can be switched off for each channel
Electrical isolation Channel isolated from bus Channel not isolated from channel
Mounting orientation
Horizontal Yes
Vertical Yes
Installation elevation above sea level
0 to 2000 m No limitation
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529 IP20
Operation
Horizontal mounting orientation -25 to 50°C
Vertical mounting orientation -25 to 45°C
Derating See section "Derating".
Storage -40 to 85°C
Transport -40 to 85°C
Relative humidity
Operation 5 to 95%, non-condensing
Storage 5 to 95%, non-condensing
Transport 5 to 95%, non-condensing
Note Order 1x terminal block X20TB12 separately. Order 1x bus module X20BM31 separately.
Pitch 25 +0.2 mm
X20BM31 X20 bus module, for double-width modules, 24 VDC keyed, internal I/O power supply connected through
X20TB12 X20 terminal block, 12-pin, 24 VDC keyed
0ACC1000.01-1 Cable for accelerometer, length 100 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed
0ACC0500.01-1 Cable for accelerometer, length 50 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed
0ACC0200.01-1 Cable for accelerometer, length 20 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed
0ACC0150.01-1 Cable for accelerometer, length 15 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed
0ACC0100.01-1 Cable for accelerometer, length 10 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed
0ACC0050.01-1 Cable for accelerometer, length 5 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed
0ACC0020.01-1 Cable for accelerometer, length 2 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed
0ACS100A.90-2 Accelerometer, nominal sensitivity 100 mV/g, output on side hex recess
0ACS100A.00-1 Accelerometer, nominal sensitivity 100 mV/g, top exit
Automation Studio HW Upgrades Version (Date)
V3.0 HW Upgrade (X20CM4810) 1.4.4.0 (04/20/2018) 1.4.0.0 (12/20/2016)
V4.0 HW Upgrade (X20CM4810) 1.8.0.0 (06/06/2023) 1.7.0.0 (07/23/2021) 1.6.1.0 (02/17/2020) 1.6.0.0 (12/17/2019) 1.5.0.0 (10/25/2019) 1.4.4.0 (04/20/2018) 1.4.0.0 (12/20/2016)
V6.0 HW Upgrade (X20CM4810) 3.0.0.1 (08/18/2026) 3.0.0.0 (11/28/2025)
Certificates Version (Date)
2226379 CSA Certificate of Compliance X20 X67 2026_09 (09/21/2026)
E115267 UL Certificate of Compliance X20 2026_08_27 (08/27/2026)
EU Data Act - X20 IO - Connected Product Information Notice 1.00 (09/30/2025)
EU Declaration ATEX X20 2023-07 (09/05/2023)
EU Declaration of conformity PLC X20 2021/10 (11/08/2021)
FTZU 09 ATEX 0083X 3.00 (10/12/2021)
UK Declaration PLC X20 2024-01 (01/18/2024)
X20, X67 KC certificates 2.00 (08/17/2026)
Documentation Version (Date)
X20 Package leaflet ATEX/CSA 1.4 (09/17/2024)
X20 System User´s Manual 4.40 (03/10/2026) - DE 4.40 (03/12/2026) - IT 4.40 (03/12/2026) - FR 4.40 (03/10/2026) - EN
X20CM4810 Data sheet and user's manual 2.42 (08/04/2026) - DE 2.42 (08/04/2026) - EN
E-CAD (Electro or EPLAN Templates) Version (Date)
X20 EPLAN P8 from V2.4 4.0.5 (08/31/2023) 4.0.4 (10/27/2022)
M-CAD (Mechan. Templates) Version (Date)
3D File X20 Double IO Slice 1.00 (05/29/2017)
