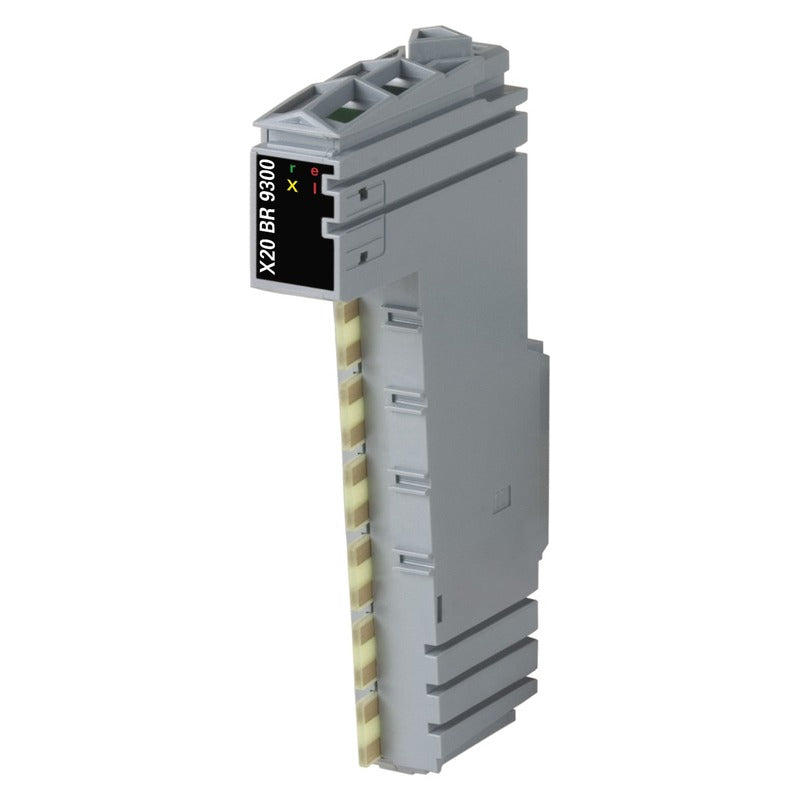

The B&R X20BR9300-2 is a industrial automation component. x2X Link bus receiver with supply for I/O and bus. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| General | |
| Bus receiver | X2X Link bus receiver with supply for I/O and bus |
| Diagnostics | |
| Module run/error | Yes, using LED status indicator and software |
| Overload | Yes, using LED status indicator and software |
| X2X bus function | Yes, using LED status indicator |
| Power consumption | |
| Internal I/O | 0.6 W |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| KC | Yes |
| B&R ID code | 0x1BC1 |
| Status indicators | X2X bus function, overload, operating state, module status |
| Power consumption for X2X Link power supply | 1.62 W |
| Additional power dissipation caused by actuators (resistive) [W] | - |
| Input voltage | 24 VDC -15% / +20% |
| Input current | Max. 0.7 A |
| Fuse | Integrated, cannot be replaced |
| Reverse polarity protection | Yes |
| Nominal output power | 7 W |
| Parallel connection | Yes |
| Redundant operation | Yes |
| Overload characteristics | Short-circuit proof, temporary overload |
| Fuse | Required line fuse: Max. 10 A slow-blow |
| Reverse polarity protection | No |
| Nominal output voltage | 24 VDC |
| Behavior on short circuit | Required line fuse |
| Permissible contact load | 10 A |
| Electrical isolation | X2X Link supply isolated from X2X Link power supply I/O supply not isolated from I/O power supply |
| Mounting orientation | |
| Horizontal | Yes |
| Vertical | Yes |
| Installation elevation above sea level | |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
| Operation | |
| Horizontal mounting orientation | -25 to 60°C |
| Vertical mounting orientation | -25 to 50°C |
| Derating | See section "Derating". |
| Storage | -40 to 85°C |
| Transport | -40 to 85°C |
| Relative humidity | |
| Operation | 5 to 95%, non-condensing |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| Note | Order 1x terminal block X20TB12 separately. Order 1x power supply bus module X20BM01 separately |
| Pitch | 12.5 +0.2 mm |
| X20BM05 | X20 power supply bus module, with node number switch, 24 VDC keyed, internal I/O power supply interrupted to the left |
| X20BM01 | X20 power supply bus module, 24 VDC keyed, internal I/O power supply interrupted to the left |
| X20TB12 | X20 terminal block, 12-pin, 24 VDC keyed |
| X67CA0X99.5000 | Cable for custom assembly, 500 m |
| X67CA0X99.1000 | Cable for custom assembly, 100 m |
| Automation Studio HW Upgrades | Version (Date) |
| V2.7 HW Upgrade (X20BR9300) | 1.0.4.0 (07/12/2019) 1.0.3.0 (06/21/2016) |
| V3.0 HW Upgrade (X20BR9300) | 1.0.4.0 (07/12/2019) 1.0.3.0 (06/21/2016) |
| V4.0 HW Upgrade (X20BR9300) | 1.5.0.0 (07/30/2025) 1.4.0.0 (01/20/2025) 1.3.0.0 (01/26/2022) 1.2.0.0 (07/23/2021) 1.1.0.0 (10/25/2019) 1.0.4.0 (07/12/2019) 1.0.3.0 (06/21/2016) 1.0.2.3 (05/09/2014) 1.0.2.2 (07/09/2013) |
| V6.0 HW Upgrade (X20BR9300) | 1.5.0.1 (08/18/2026) 1.5.0.0 (07/30/2025) 1.4.0.0 (01/20/2025) |
| Certificates | Version (Date) |
| 2226379 CSA Certificate of Compliance X20 X67 | 2026_09 (09/21/2026) |
| E115267 UL Certificate of Compliance X20 | 2026_08_27 (08/27/2026) |
| EU Data Act - X20 IO - Connected Product Information Notice | 1.00 (09/30/2025) |
| EU Declaration ATEX X20 | 2023-07 (09/05/2023) |
| EU Declaration of conformity PLC X20 | 2021/10 (11/08/2021) |
| FTZU 09 ATEX 0083X | 3.00 (10/12/2021) |
| UK Declaration PLC X20 | 2024-01 (01/18/2024) |
| X20, X67 KC certificates | 2.00 (08/17/2026) |
| Documentation | Version (Date) |
| Datasheet X20(c)BR9300 | 3.20 (07/14/2025) - DE 3.20 (07/14/2025) - EN |
| X20 Package leaflet ATEX/CSA | 1.4 (09/17/2024) |
| X20 System User´s Manual | 4.40 (03/10/2026) - DE 4.40 (03/12/2026) - IT 4.40 (03/12/2026) - FR 4.40 (03/10/2026) - EN |
| E-CAD (Electro or EPLAN Templates) | Version (Date) |
| X20 EPLAN P8 from V2.4 | 4.0.5 (08/31/2023) 4.0.4 (10/27/2022) |
| M-CAD (Mechan. Templates) | Version (Date) |
| 3D File DXF/STEP X20 Electronic module | 1.0 (10/17/2005) |
| 3D File STEP X20 I/O-Slice | 1.1 (03/13/2019) |
| Dimensions PDF X20 Electronic module | 1.0 (10/17/2005) |
Model variants, options and firmware revisions can affect fitment. Before ordering the B&R X20BR9300-2 industrial automation component, share your existing part number or project requirements and our team will cross-reference comparable in-stock B&R units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.
