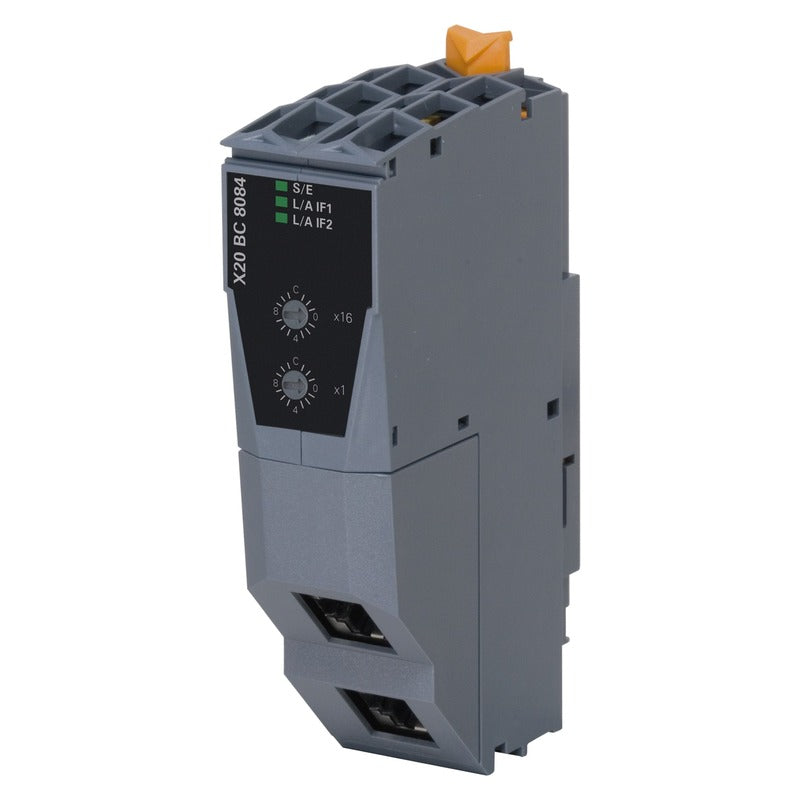

B&R X20BC8084 Bus Controller

SKU: X20BC8084
(0)
$1,238.90
Available
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

X20BC8084 Bus Controller Module | B&R

The B&R X20BC8084 is a bus controller module. pOWERLINK (V1/V2) controlled node with compact link selector. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Degree of protection per EN 60529: IP20.
  • Bus controller: POWERLINK (V1/V2) controlled node with compact link selector.
  • Type: Type 2.
  • Fieldbus: 200 μs.
  • RINA Type Approval Certificate - X20 / Power Panel T30: 1.00 (05/07/2021).
  • Module status: Yes, using LED status indicator and software.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
General
Bus controller POWERLINK (V1/V2) controlled node with compact link selector
Diagnostics
Module status Yes, using LED status indicator and software
Bus function Yes, using LED status indicator and software
Support
Dynamic node allocation (DNA) Yes
Power consumption
Bus 2 W
Certifications
CE Yes
UKCA Yes
CRA (Cyber Resilience Act) In preparation
ATEX Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL cULus E115267 Industrial control equipment
HazLoc cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
DNV Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
CCS Yes
LR ENV1
KR Yes
ABS Yes
BV EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
KC Yes
B&R ID code 0x2674
Status indicators Module status, bus function
Additional power dissipation caused by actuators (resistive) [W] -
Transfer
Physical layer 100BASE-TX
Half-duplex Yes
Full-duplex No
Autonegotiation Yes
Auto-MDI/MDIX Yes
Min. cycle time
Fieldbus 200 μs
X2X Link 200 μs
Fieldbus POWERLINK (V1/V2) controlled node
Type Type 2
Execution 2x shielded RJ45
Line length Max. 100 m between 2 stations (segment length)
Transfer rate 100 Mbit/s
Hub propagation delay 0.96 to 1 µs
Synchronization between bus systems possible Yes
Electrical isolation POWERLINK isolated from bus and I/O
Mounting orientation
Horizontal Yes
Vertical Yes
Installation elevation above sea level
0 to 2000 m No limitation
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529 IP20
Operation
Horizontal mounting orientation -25 to 60°C
Vertical mounting orientation -25 to 50°C
Derating -
Storage -40 to 85°C
Transport -40 to 85°C
Relative humidity
Operation 5 to 95%, non-condensing
Storage 5 to 95%, non-condensing
Transport 5 to 95%, non-condensing
Pitch
X20BB80 37.5 +0.2 mm
X20BB82 87.5 +0.2 mm
Note Order 1x terminal block X20TB12 separately. Order 1x power supply module X20PS9400 or X20PS9402 separately. Order 1x bus base X20BB80 or X20BB82 separately.
X20PS9402 X20 power supply module, for bus controller and internal I/O power supply, X2X Link supply, supply not galvanically isolated
X20PS9400 X20 power supply module, for bus controller and internal I/O power supply X2X Link power supply
X20BB80 X20 bus base, for X20 base module (BC, HB, etc.) and X20 power supply module, X20 end cover plates (left and right) X20AC0SL1/X20AC0SR1 included
X20BB82 X20 bus base, for X20 base module (BC, HB, etc.) and X20 power supply module, with 2 expansion slots for 2 X20 add-on modules (IF, HB, etc.), X20 end cover plates (left and right) X20AC0SL1/X20AC0SR1 included
X20TB12 X20 terminal block, 12-pin, 24 VDC keyed
X20HB2886 X20 hub expansion module, integrated active 2-port hub, 2x fiber optic connections
X20HB2885 X20 hub expansion module, integrated active 2-port hub, 2x RJ45
Automation Studio HW Upgrades Version (Date)
V2.6 HW Upgrade (X20BC8084) 2.5.4.0 (07/05/2017)
V3.0 HW Upgrade (X20BC8084) 2.11.0.0 (01/31/2020) 2.10.0.0 (07/10/2019) 2.9.0.0 (03/01/2019) 2.8.0.0 (12/05/2018) 2.7.0.0 (04/17/2018) 2.6.0.0 (02/02/2018)
V4.0 HW Upgrade (X20BC8084) 2.18.0.0 (08/07/2026) 2.17.0.0 (05/14/2025) 2.16.0.0 (09/01/2023) 2.15.0.0 (10/13/2022) 2.14.0.0 (10/18/2021) 2.12.0.0 (07/23/2021) 2.11.0.0 (01/31/2020) 2.10.0.0 (07/10/2019) 2.9.0.0 (03/01/2019) 2.8.0.0 (12/05/2018) 2.7.0.0 (04/17/2018) 2.6.0.0 (02/02/2018)
V6.0 HW Upgrade (X20BC8084) 2.18.0.1 (08/18/2026) 2.18.0.0 (08/07/2026) 2.17.0.0 (05/14/2025)
Certificates Version (Date)
2226379 CSA Certificate of Compliance X20 X67 2026_09 (09/21/2026)
64331_A1 BV Certificate of Compliance X20 2026_05 (05/05/2026) 1.00 (11/08/2022) - DE
ABS Certificate of Product Design Assessment - X20 IO Series 2.00 (01/13/2025)
CCS Type Approval Certificate - X20 1.00 (06/28/2024)
Compass Safe Distance Certificate - X20 1.21 (08/23/2021)
E115267 UL Certificate of Compliance X20 2026_08_27 (08/27/2026)
EU Data Act - X20 IO - Connected Product Information Notice 1.00 (09/30/2025)
EU Declaration ATEX X20 2023-07 (09/05/2023)
EU Declaration of conformity PLC X20 2021/10 (11/08/2021)
FTZU 09 ATEX 0083X 3.00 (10/12/2021)
KR Type Approval Certificate MIL39390-AC003 (X20 System) 2.0 (05/05/2025) 1.0 (07/10/2019)
Lloyds Register (X20 only) 1.30 (07/07/2025) 1.20 (07/20/2022)
RINA Type Approval Certificate - X20 / Power Panel T30 1.00 (05/07/2021)
TAA00000BJ DNV Type Approval Certificate X20 13.0 (05/04/2026) 12.0 (02/18/2026) 11.0 (02/27/2024)
UK Declaration PLC X20 2024-01 (01/18/2024)
X20, X67 KC certificates 2.00 (08/17/2026)
Documentation Version (Date)
Data sheet X20(c)BC8084 2.51 (08/05/2025) - DE 2.51 (08/05/2025) - EN
POWERLINK Bus Controller User's Manual 2.67 (05/07/2026) - DE 2.67 (05/07/2026) - EN
Redundancy for control systems 1.31 (07/03/2025) - DE 1.31 (07/03/2025) - EN
X20 Package leaflet ATEX/CSA 1.4 (09/17/2024)
X20 System User´s Manual 4.40 (03/10/2026) - DE 4.40 (03/12/2026) - IT 4.40 (03/12/2026) - FR 4.40 (03/10/2026) - EN
E-CAD (Electro or EPLAN Templates) Version (Date)
X20 EPLAN P8 from V2.4 4.0.5 (08/31/2023) 4.0.4 (10/27/2022)
M-CAD (Mechan. Templates) Version (Date)
3D File STEP/DXF X20BC and X20IF Module 2.3 (09/19/2019)

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the B&R X20BC8084 bus controller module, share your existing part number or project requirements and our team will cross-reference comparable in-stock B&R units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Network connectivity between field I/O and the controller over POWERLINK or other fieldbus networks.
  • Integration of distributed I/O stations in new and existing machine architectures.
  • Machine and line-level data exchange for control and coordination.
  • Spare or replacement bus controllers for installed automation systems.

Warranty

  • Availability: X20BC8084 is stocked for prompt shipment; contact us for current quantity and lead time.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping is available, and orders over $500 ship free.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: B&R part X20BC8084 is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What condition is the X20BC8084 supplied in?

A: Each unit is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.

Q: How quickly can the X20BC8084 ship?

A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.

Q: Can you confirm compatibility or a replacement for the X20BC8084?

A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
