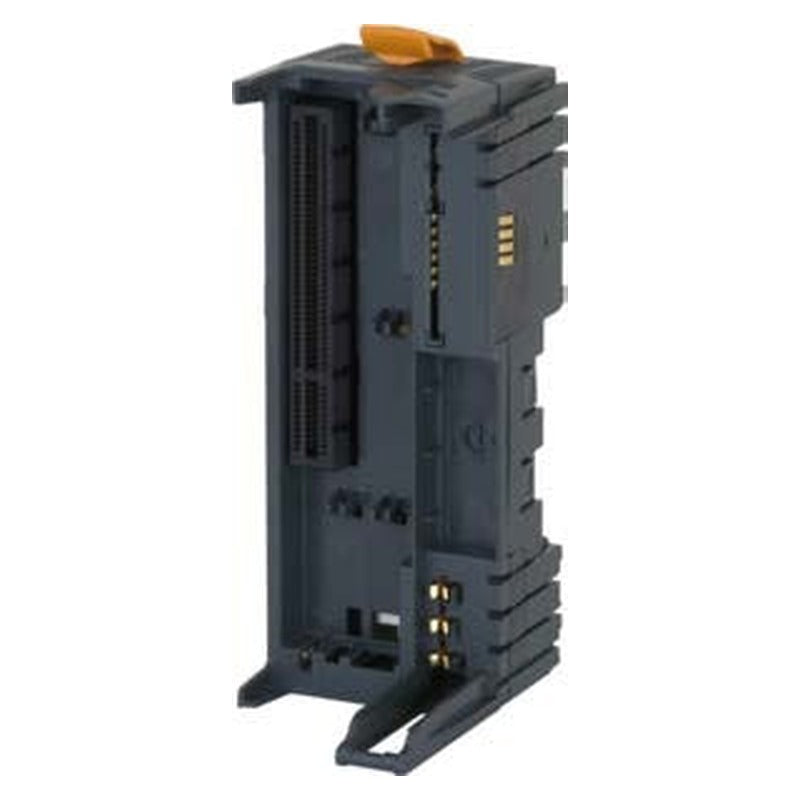

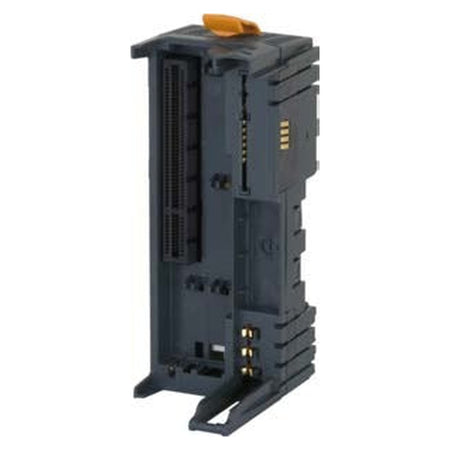

B&R X20BB27 Base Module

SKU: X20BB27
(0)
$164.96
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

X20BB27 Industrial Automation Component | B&R

The B&R X20BB27 is a industrial automation component. x20 Compact CPU base - Backplane for Compact CPU and Compact CPU power supply module. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Degree of protection per EN 60529: IP20.
  • CCS Type Approval Certificate - X20: 1.00 (06/28/2024).
  • RINA Type Approval Certificate - X20 / Power Panel T30: 1.00 (05/07/2021).
  • Interfaces: 1x RS232 connection, 1x CAN bus connection.
  • Bus module: X20 Compact CPU base - Backplane for Compact CPU and Compact CPU power supply module.
  • Bus: 0.53 W.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
General
Bus module X20 Compact CPU base - Backplane for Compact CPU and Compact CPU power supply module
Interfaces 1x RS232 connection, 1x CAN bus connection
Power consumption
Bus 0.53 W
Internal I/O -
Certifications
CE Yes
UKCA Yes
ATEX Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL cULus E115267 Industrial control equipment
HazLoc cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
DNV Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
CCS Yes
LR ENV1
KR Yes
ABS Yes
BV EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
KC Yes
Additional power dissipation caused by actuators (resistive) [W] -
Nominal voltage 24 VDC
Permissible contact load 10 A
Electrical isolation Bus, CAN bus and RS232 not isolated from each other
Mounting orientation
Horizontal Yes
Vertical Yes
Installation elevation above sea level
0 to 2000 m No limitation
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529 IP20
Operation
Horizontal mounting orientation -25 to 60°C
Vertical mounting orientation -25 to 50°C
Derating -
Storage -40 to 85°C
Transport -40 to 85°C
Relative humidity
Operation 5 to 95%, non-condensing
Storage 5 to 95%, non-condensing
Transport 5 to 95%, non-condensing
Note Left and right X20 end cover plates included in delivery
Pitch 37.5 +0.2 mm
Automation Studio HW Upgrades Version (Date)
V2.6 HW Upgrade (X20BB27) 1.0.2.0 (11/09/2017)
V3.0 HW Upgrade (X20BB27) 1.0.2.0 (11/09/2017)
V4.0 HW Upgrade (X20BB27) 1.0.1.4 (11/09/2017) 1.0.1.3 (05/08/2014)
V4.1 HW Upgrade (X20BB27) 1.1.0.0 (07/23/2021) 1.0.2.0 (11/09/2017)
Certificates Version (Date)
2226379 CSA Certificate of Compliance X20 X67 2026_09 (09/21/2026)
64331_A1 BV Certificate of Compliance X20 2026_05 (05/05/2026) 1.00 (11/08/2022) - DE
ABS Certificate of Product Design Assessment - X20 IO Series 2.00 (01/13/2025)
CCS Type Approval Certificate - X20 1.00 (06/28/2024)
E115267 UL Certificate of Compliance X20 2026_08_27 (08/27/2026)
FTZU 09 ATEX 0083X 3.00 (10/12/2021)
KR Type Approval Certificate MIL39390-AC003 (X20 System) 2.0 (05/05/2025) 1.0 (07/10/2019)
Lloyds Register (X20 only) 1.30 (07/07/2025) 1.20 (07/20/2022)
RINA Type Approval Certificate - X20 / Power Panel T30 1.00 (05/07/2021)
TAA00000BJ DNV Type Approval Certificate X20 13.0 (05/04/2026) 12.0 (02/18/2026) 11.0 (02/27/2024)
X20, X67 KC certificates 2.00 (08/17/2026)
Documentation Version (Date)
Data sheet X20BB27 2.23 (09/30/2019) - DE 2.23 (09/30/2019) - EN
X20 Package leaflet ATEX/CSA 1.4 (09/17/2024)
X20 System User´s Manual 4.40 (03/10/2026) - DE 4.40 (03/12/2026) - IT 4.40 (03/12/2026) - FR 4.40 (03/10/2026) - EN
E-CAD (Electro or EPLAN Templates) Version (Date)
X20 EPLAN P8 from V2.4 4.0.5 (08/31/2023) 4.0.4 (10/27/2022)
M-CAD (Mechan. Templates) Version (Date)
3D File DXF/STEP X20BB2x/5x/80 1.00 (01/10/2019)
