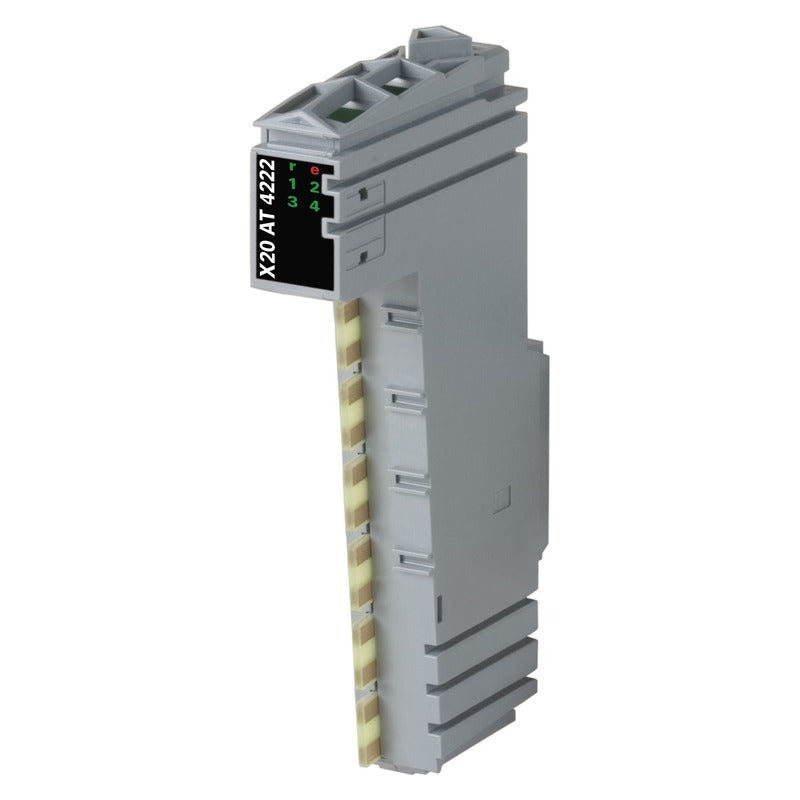

B&R X20AT4222 Temperature Input Module

SKU: X20AT4222
(0)
$361.53
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

X20AT4222 Temperature Input Module | B&R

The B&R X20AT4222 is a temperature input module. 4 inputs for Pt100 or Pt1000 resistance temperature measurement. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Degree of protection per EN 60529: IP20.
  • Sensor type: Configurable per channel.
  • Inputs: Yes, using LED status indicator and software.
  • 2 - 4 channels: 40 ms per channel with 50 Hz filter.
  • RINA Type Approval Certificate - X20 / Power Panel T30: 1.00 (05/07/2021).
  • Digital converter resolution: 16-bit.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
General
I/O module 4 inputs for Pt100 or Pt1000 resistance temperature measurement
Diagnostics
Module run/error Yes, using LED status indicator and software
Inputs Yes, using LED status indicator and software
Power consumption
Bus 0.01 W
Internal I/O 1.1 W
Certifications
CE Yes
UKCA Yes
CRA (Cyber Resilience Act) In preparation
ATEX Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL cULus E115267 Industrial control equipment
HazLoc cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
DNV Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
CCS Yes
LR ENV1
KR Yes
ABS Yes
BV EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
KC Yes
B&R ID code 0x1BA7
Status indicators I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W] -
Conversion time
1 channel 20 ms with 50 Hz filter
2 - 4 channels 40 ms per channel with 50 Hz filter
Sensor
Sensor type Configurable per channel
Pt100 -200 to 850°C
Pt1000 -200 to 850°C
Max. error at 25°C
Gain ±0.037%
Offset ±0.0015%
Temperature sensor resolution
Pt100 1 LSB = 0.1°C
Pt1000 1 LSB = 0.1°C
Resistance measurement resolution
G = 1 0.1 Ω
G = 2 0.05 Ω
Common-mode rejection
50 Hz >80 dB
DC >95 dB
Standardized range of values for resistance measurement
G = 1 0.1 to 4500 Ω
G = 2 0.05 to 2250 Ω
Temperature sensor normalization
Pt100 -200.0 to 850.0°C
Pt1000 -200.0 to 850.0°C
Temperature measurement monitoring
Range undershoot 0x8001
Range overshoot 0x7FFF
Open circuit 0x7FFF
General fault 0x8000
Open inputs 0x7FFF
Resistance measurement monitoring
Range overshoot 0xFFFF
Open circuit 0xFFFF
General fault 0xFFFF
Open inputs 0xFFFF
Input Resistance measurement with constant current supply for 2- or 3-wire connections
Digital converter resolution 16-bit
Filter time Configurable between 1 ms and 66.7 ms
Conversion procedure Sigma-delta
Output format INT or UINT for resistance measurement
Resistance measurement range 0.1 to 4500 Ω / 0.05 to 2250 Ω
Input filter First-order low-pass filter / cutoff frequency 500 Hz
Sensor standard EN 60751
Common-mode range >0.7 V
Insulation voltage between channel and bus 500 V eff
Linearization method Internal
Measuring current 250 µA ±1.25%
Reference 4530 Ω ±0.1%
Permissible input signal Short-term max. ±30 V
Max. gain drift ±0.004%/°C
Max. offset drift ±0.00015%/°C
Nonlinearity <0.001%
Crosstalk between channels <-93 dB
Electrical isolation Channel isolated from bus Channel not isolated from channel
Mounting orientation
Horizontal Yes
Vertical Yes
Installation elevation above sea level
0 to 2000 m No limitation
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529 IP20
Operation
Horizontal mounting orientation -25 to 60°C
Vertical mounting orientation -25 to 50°C
Derating -
Storage -40 to 85°C
Transport -40 to 85°C
Relative humidity
Operation 5 to 95%, non-condensing
Storage 5 to 95%, non-condensing
Transport 5 to 95%, non-condensing
Note Order 1x terminal block X20TB12 separately. Order 1x bus module X20BM11 separately.
Pitch 12.5 +0.2 mm
X20BM15 X20 bus module, with node number switch, 24 VDC keyed, internal I/O power supply connected through
X20BM11 X20 bus module, 24 VDC keyed, internal I/O power supply connected through
X20TB12 X20 terminal block, 12-pin, 24 VDC keyed
Automation Studio HW Upgrades Version (Date)
V2.7 HW Upgrade (X20AT4222) 1.2.4.0 (11/16/2018) 1.2.3.0 (08/03/2018) 1.2.2.0 (06/07/2017)
V3.0 HW Upgrade (X20AT4222) 1.2.4.0 (11/16/2018) 1.2.3.0 (08/03/2018) 1.2.2.0 (06/07/2017)
V4.0 HW Upgrade (X20AT4222) 1.6.0.0 (09/06/2022) 1.5.0.0 (06/14/2022) 1.4.0.0 (07/23/2021) 1.3.0.0 (10/25/2019) 1.2.4.0 (11/16/2018) 1.2.3.0 (08/03/2018) 1.2.2.0 (06/07/2017)
Certificates Version (Date)
2226379 CSA Certificate of Compliance X20 X67 2026_09 (09/21/2026)
64331_A1 BV Certificate of Compliance X20 2026_05 (05/05/2026) 1.00 (11/08/2022) - DE
ABS Certificate of Product Design Assessment - X20 IO Series 2.00 (01/13/2025)
CCS Type Approval Certificate - X20 1.00 (06/28/2024)
E115267 UL Certificate of Compliance X20 2026_08_27 (08/27/2026)
EU Data Act - X20 IO - Connected Product Information Notice 1.00 (09/30/2025)
EU Declaration ATEX X20 2023-07 (09/05/2023)
EU Declaration of conformity PLC X20 2021/10 (11/08/2021)
FTZU 09 ATEX 0083X 3.00 (10/12/2021)
KR Type Approval Certificate MIL39390-AC003 (X20 System) 2.0 (05/05/2025) 1.0 (07/10/2019)
Lloyds Register (X20 only) 1.30 (07/07/2025) 1.20 (07/20/2022)
RINA Type Approval Certificate - X20 / Power Panel T30 1.00 (05/07/2021)
TAA00000BJ DNV Type Approval Certificate X20 13.0 (05/04/2026) 12.0 (02/18/2026) 11.0 (02/27/2024)
UK Declaration PLC X20 2024-01 (01/18/2024)
X20, X67 KC certificates 2.00 (08/17/2026)
Documentation Version (Date)
Data sheet X20(c)AT4222 3.32 (10/08/2024) - DE 3.32 (10/08/2024) - EN
X20 Package leaflet ATEX/CSA 1.4 (09/17/2024)
X20 System User´s Manual 4.40 (03/10/2026) - DE 4.40 (03/12/2026) - IT 4.40 (03/12/2026) - FR 4.40 (03/10/2026) - EN
E-CAD (Electro or EPLAN Templates) Version (Date)
X20 EPLAN P8 from V2.4 4.0.5 (08/31/2023) 4.0.4 (10/27/2022)
M-CAD (Mechan. Templates) Version (Date)
3D File DXF/STEP X20 Electronic module 1.0 (10/17/2005)
3D File STEP X20 I/O-Slice 1.1 (03/13/2019)
Dimensions PDF X20 Electronic module 1.0 (10/17/2005)

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the B&R X20AT4222 temperature input module, share your existing part number or project requirements and our team will cross-reference comparable in-stock B&R units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Automation control and signal handling in industrial machinery.
  • Integration into new and existing control architectures.
  • Maintenance, spares and retrofit of installed equipment.
  • Machine and line-level use across manufacturing and process industries.

Warranty

  • Availability: X20AT4222 is stocked for prompt shipment; contact us for current quantity and lead time.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping is available, and orders over $500 ship free.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: B&R part X20AT4222 is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
