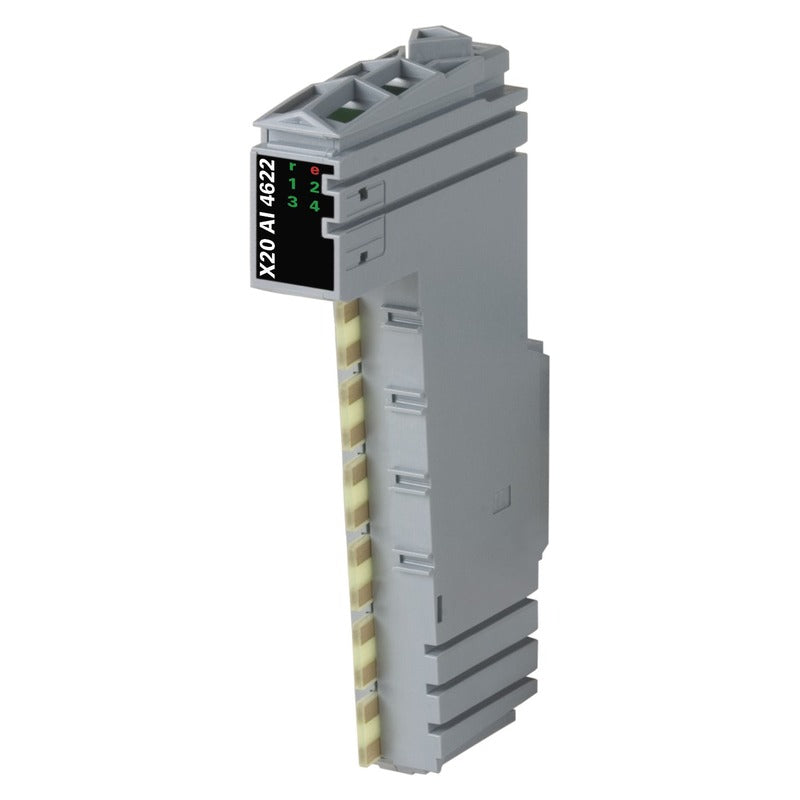

B&R X20AI46223 Analog Input Module

SKU: X20AI46223
(0)
$706.24
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

X20AI46223 Analog Input Module | B&R

The B&R X20AI46223 is a analog input module. 4 analog inputs ±10 V or 0 to 20 mA / 4 to 20 mA. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Degree of protection per EN 60529: IP20.
  • Channel type: Yes, using software.
  • Inputs: Yes, using LED status indicator and software.
  • Crosstalk between channels: <-70 dB.
  • RINA Type Approval Certificate - X20 / Power Panel T30: 1.00 (05/07/2021).
  • I/O module: 4 analog inputs ±10 V or 0 to 20 mA / 4 to 20 mA.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
General
I/O module 4 analog inputs ±10 V or 0 to 20 mA / 4 to 20 mA
Diagnostics
Module run/error Yes, using LED status indicator and software
Inputs Yes, using LED status indicator and software
Channel type Yes, using software
Power consumption
Bus 0.01 W
Internal I/O 1.1 W
Certifications
CE Yes
UKCA Yes
CRA (Cyber Resilience Act) In preparation
ATEX Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL cULus E115267 Industrial control equipment
HazLoc cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
DNV Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
CCS Yes
LR ENV1
KR Yes
ABS Yes
BV EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
KC Yes
B&R ID code 0x1BAA
Status indicators I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W] -
Digital converter resolution
Voltage ±12-bit
Current 12-bit
Output format
Voltage INT 0x8001 - 0x7FFF / 1 LSB = 0x0008 = 2.441 mV
Current INT 0x0000 - 0x7FFF / 1 LSB = 0x0008 = 4.883 µA
Input impedance in signal range
Voltage 20 MΩ
Current -
Load
Voltage -
Current <400 Ω
Permissible input signal
Voltage Max. ±30 V
Current Max. ±50 mA
Voltage
Gain 0.08%
Offset 0.015%
Current
Gain 0 to 20 mA = 0.08% / 4 to 20 mA = 0.1%
Offset 0 to 20 mA = 0.03% / 4 to 20 mA = 0.0375%
Max. gain drift
Voltage 0.006%/°C
Current 0 to 20 mA = 0.009 %/°C 4 to 20 mA = 0.0113 %/°C
Max. offset drift
Voltage 0.002%/°C
Current 0 to 20 mA = 0.004 %/°C 4 to 20 mA = 0.005 %/°C
Common-mode rejection
DC 70 dB
50 Hz 70 dB
Nonlinearity
Voltage <0.025%
Current <0.05%
Input ±10 V or 0 to 20 mA / 4 to 20 mA, via different terminal connections
Input type Differential input
Conversion time 400 μs for all inputs
Output format INT
Input protection Protection against wiring with supply voltage
Output of digital value during overload Configurable
Conversion procedure SAR
Input filter Third-order low-pass filter / Cutoff frequency 1 kHz
Common-mode range ±12 V
Crosstalk between channels <-70 dB
Insulation voltage between channel and bus 500 V eff
Electrical isolation Channel isolated from bus Channel not isolated from channel
Mounting orientation
Horizontal Yes
Vertical Yes
Installation elevation above sea level
0 to 2000 m No limitation
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529 IP20
Operation
Horizontal mounting orientation -25 to 60°C
Vertical mounting orientation -25 to 50°C
Derating -
Storage -40 to 85°C
Transport -40 to 85°C
Relative humidity
Operation 5 to 95%, non-condensing
Storage 5 to 95%, non-condensing
Transport 5 to 95%, non-condensing
Note Order 1x terminal block X20TB12 separately. Order 1x bus module X20BM11 separately.
Pitch 12.5 +0.2 mm
X20BM15 X20 bus module, with node number switch, 24 VDC keyed, internal I/O power supply connected through
X20BM11 X20 bus module, 24 VDC keyed, internal I/O power supply connected through
X20TB12 X20 terminal block, 12-pin, 24 VDC keyed
Automation Studio HW Upgrades Version (Date)
V2.6 HW Upgrade (X20AI4622) 1.0.5.0 (11/14/2017) 1.0.2.0 (09/22/2008)
V3.0 HW Upgrade (X20AI4622) 1.0.2.0 (09/22/2008)
V3.0 HW Upgrade (X20AI4622) 1.0.5.0 (11/14/2017)
V4.0 HW Upgrade (X20AI4622) 1.7.0.0 (07/27/2026) 1.6.0.0 (09/24/2025) 1.5.0.0 (11/10/2023) 1.4.0.0 (09/14/2023) 1.3.0.0 (06/22/2022) 1.2.0.0 (07/23/2021) 1.1.0.0 (10/25/2019) 1.0.5.0 (11/14/2017)
V6.0 HW Upgrade (X20AI4622) 1.7.0.1 (08/18/2026) 1.7.0.0 (07/27/2026) 1.6.0.0 (09/24/2025)
Certificates Version (Date)
2226379 CSA Certificate of Compliance X20 X67 2026_09 (09/21/2026)
64331_A1 BV Certificate of Compliance X20 2026_05 (05/05/2026) 1.00 (11/08/2022) - DE
ABS Certificate of Product Design Assessment - X20 IO Series 2.00 (01/13/2025)
CCS Type Approval Certificate - X20 1.00 (06/28/2024)
E115267 UL Certificate of Compliance X20 2026_08_27 (08/27/2026)
EU Data Act - X20 IO - Connected Product Information Notice 1.00 (09/30/2025)
EU Declaration ATEX X20 2023-07 (09/05/2023)
EU Declaration of conformity PLC X20 2021/10 (11/08/2021)
FTZU 09 ATEX 0083X 3.00 (10/12/2021)
KR Type Approval Certificate MIL39390-AC003 (X20 System) 2.0 (05/05/2025) 1.0 (07/10/2019)
Lloyds Register (X20 only) 1.30 (07/07/2025) 1.20 (07/20/2022)
RINA Type Approval Certificate - X20 / Power Panel T30 1.00 (05/07/2021)
TAA00000BJ DNV Type Approval Certificate X20 13.0 (05/04/2026) 12.0 (02/18/2026) 11.0 (02/27/2024)
UK Declaration PLC X20 2024-01 (01/18/2024)
X20, X67 KC certificates 2.00 (08/17/2026)
Documentation Version (Date)
Data sheet X20(c)AI4622 3.42 (07/30/2025) - DE 3.42 (07/30/2025) - EN
X20 Package leaflet ATEX/CSA 1.4 (09/17/2024)
X20 System User´s Manual 4.40 (03/10/2026) - DE 4.40 (03/12/2026) - IT 4.40 (03/12/2026) - FR 4.40 (03/10/2026) - EN
E-CAD (Electro or EPLAN Templates) Version (Date)
X20 EPLAN P8 from V2.4 4.0.5 (08/31/2023) 4.0.4 (10/27/2022)
M-CAD (Mechan. Templates) Version (Date)
3D File DXF/STEP X20 Electronic module 1.0 (10/17/2005)
3D File STEP X20 I/O-Slice 1.1 (03/13/2019)
Dimensions PDF X20 Electronic module 1.0 (10/17/2005)

Compatibility & Cross-References
