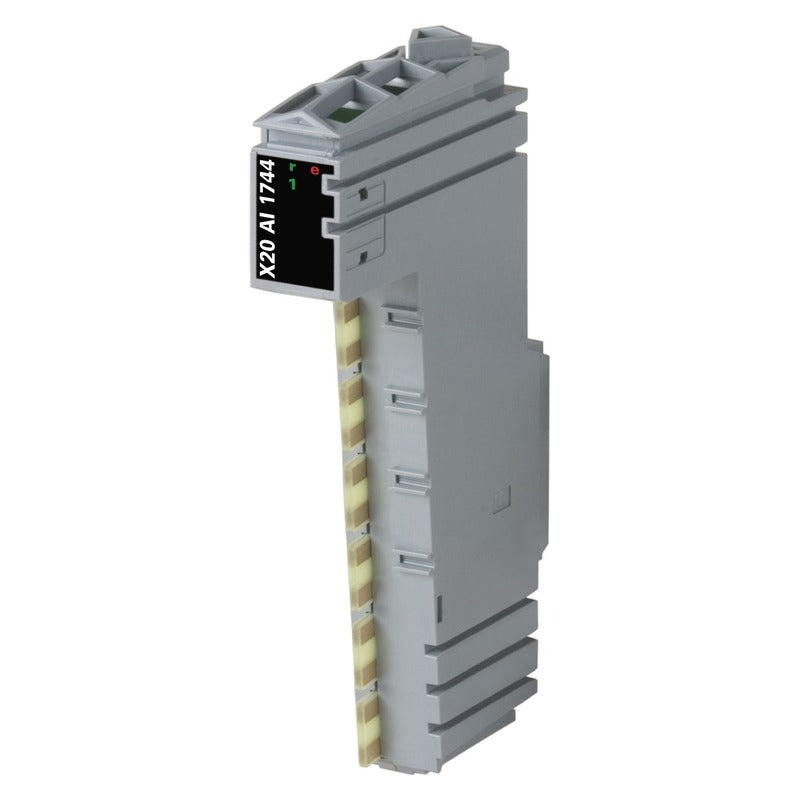

| Technical Specifications |
| General |
| I/O module |
1 full-bridge strain gauge input |
| Diagnostics |
| Module run/error |
Yes, using LED status indicator and software |
| Open circuit |
Yes, using LED status indicator and software |
| Input |
Yes, using LED status indicator and software |
| Power consumption |
| Bus |
0.01 W |
| Internal I/O |
0.5 W |
| Certifications |
| CE |
Yes |
| UKCA |
Yes |
| CRA (Cyber Resilience Act) |
In preparation |
| ATEX |
Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| UL |
cULus E115267 Industrial control equipment |
| HazLoc |
cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| KC |
Yes |
| B&R ID code |
0x1CDE |
| Status indicators |
Channel status, operating state, module status |
| Additional power dissipation caused by actuators (resistive) [W] |
Max. +0.36 |
| Input filter |
| Cutoff frequency |
5 kHz |
| Order |
3 |
| Slope |
60 dB |
| Output of digital value |
| Broken bridge supply line |
Value approaching 0 |
| Broken sensor line |
Value approaching ±end value (status bit "Line monitoring" is set in register "Module status") |
| Valid range of values |
0xFF800001 to 0x007FFFFF (-8,388,607 to 8,388,607) |
| Strain gauge supply |
| Voltage |
5.5 VDC / Max. 65 mA |
| Short-circuit and overload-proof |
Yes |
| Voltage drop for short-circuit protection |
Max. 0.2 VDC at 65 mA and 25°C |
| LSB value (16-bit) |
| 2 mV/V |
336 nV |
| 4 mV/V |
671 nV |
| 8 mV/V |
1.343 µV |
| 16 mV/V |
2.686 µV |
| 32 mV/V |
5.371 μV |
| 64 mV/V |
10.74 μV |
| 128 mV/V |
21.48 μV |
| 256 mV/V |
42.97 μV |
| LSB value (24-bit) |
| 2 mV/V |
1.31 nV |
| 4 mV/V |
2.62 nV |
| 8 mV/V |
5.25 nV |
| 16 mV/V |
10.49 nV |
| 32 mV/V |
20.98 nV |
| 64 mV/V |
41.96 nV |
| 128 mV/V |
83.92 nV |
| 256 mV/V |
167.85 nV |
| Strain gauge factor |
2 to 256 mV/V, configurable using software |
| Connection |
4- or 6-wire connections |
| Input type |
Differential, used to evaluate a full-bridge strain gauge |
| Digital converter resolution |
24-bit |
| Conversion time |
Depends on the configured data output rate |
| Data output rate |
0.1 - 7500 samples per second, configurable using software (f DATA ) |
| ADC filter characteristics |
Sigma-delta, see section "Filter characteristics of the sigma-delta A/D converter" |
| Operating range / Measurement sensor |
85 to 5000 Ω |
| Influence of cable length |
See section "Calculation example". |
| Input protection |
RC protection |
| Common-mode range |
0 to 3 VDC Permissible input voltage range (with regard to the electric potential strain gauge GND) on inputs "Input +" and "Input -" |
| Insulation voltage between input and bus |
500 V eff |
| Conversion procedure |
Sigma-delta |
| Max. gain drift |
12 ppm/°C |
| Max. offset drift |
2 ppm/°C |
| Nonlinearity |
<10 ppm |
| Electrical isolation |
Bus isolated from analog input and strain gauge supply voltage Channel not isolated from I/O power supply |
| Mounting orientation |
| Horizontal |
Yes |
| Vertical |
Yes |
| Installation elevation above sea level |
| 0 to 2000 m |
No limitation |
| >2000 m |
Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 |
IP20 |
| Operation |
| Horizontal mounting orientation |
-25 to 60°C |
| Vertical mounting orientation |
-25 to 50°C |
| Derating |
See section "Hardware configuration" |
| Storage |
-40 to 85°C |
| Transport |
-40 to 85°C |
| Relative humidity |
| Operation |
5 to 95%, non-condensing |
| Storage |
5 to 95%, non-condensing |
| Transport |
5 to 95%, non-condensing |
| Note |
Order 1x terminal block X20TB12 separately. Order 1x bus module X20BM11 separately. |
| Pitch |
12.5 +0.2 mm |
| X20BM15 |
X20 bus module, with node number switch, 24 VDC keyed, internal I/O power supply connected through |
| X20BM11 |
X20 bus module, 24 VDC keyed, internal I/O power supply connected through |
| X20TB12 |
X20 terminal block, 12-pin, 24 VDC keyed |
| Automation Studio HW Upgrades |
Version (Date) |
| V2.7 HW Upgrade (X20AI1744) |
1.8.4.0 (04/25/2019) 1.8.3.0 (07/18/2018) 1.8.2.0 (05/03/2018) 1.8.0.0 (06/12/2017) |
| V3.0 HW Upgrade (X20AI1744) |
1.8.4.0 (04/25/2019) 1.8.3.0 (07/18/2018) 1.8.2.0 (05/03/2018) 1.8.0.0 (06/12/2017) |
| V4.0 HW Upgrade (X20AI1744) |
1.10.0.0 (07/23/2021) 1.9.0.0 (10/25/2019) 1.8.4.0 (04/25/2019) 1.8.3.0 (07/18/2018) 1.8.2.0 (05/03/2018) 1.8.0.0 (06/12/2017) |
| Certificates |
Version (Date) |
| E115267 UL Certificate of Compliance X20 |
2026_08_27 (08/27/2026) |
| EU Data Act - X20 IO - Connected Product Information Notice |
1.00 (09/30/2025) |
| EU Declaration ATEX X20 |
2023-07 (09/05/2023) |
| EU Declaration of conformity PLC X20 |
2021/10 (11/08/2021) |
| FTZU 09 ATEX 0083X |
3.00 (10/12/2021) |
| UK Declaration PLC X20 |
2024-01 (01/18/2024) |
| X20, X67 KC certificates |
2.00 (08/17/2026) |
| Documentation |
Version (Date) |
| Data sheet X20AI1744 |
4.40 (07/31/2025) - DE 4.40 (07/31/2025) - EN |
| X20 Package leaflet ATEX/CSA |
1.4 (09/17/2024) |
| X20 System User´s Manual |
4.40 (03/10/2026) - DE 4.40 (03/12/2026) - IT 4.40 (03/12/2026) - FR 4.40 (03/10/2026) - EN |
| E-CAD (Electro or EPLAN Templates) |
Version (Date) |
| X20 EPLAN P8 from V2.4 |
4.0.5 (08/31/2023) 4.0.4 (10/27/2022) |
| M-CAD (Mechan. Templates) |
Version (Date) |
| 3D File DXF/STEP X20 Electronic module |
1.0 (10/17/2005) |
| 3D File STEP X20 I/O-Slice |
1.1 (03/13/2019) |
| Dimensions PDF X20 Electronic module |
1.0 (10/17/2005) |
