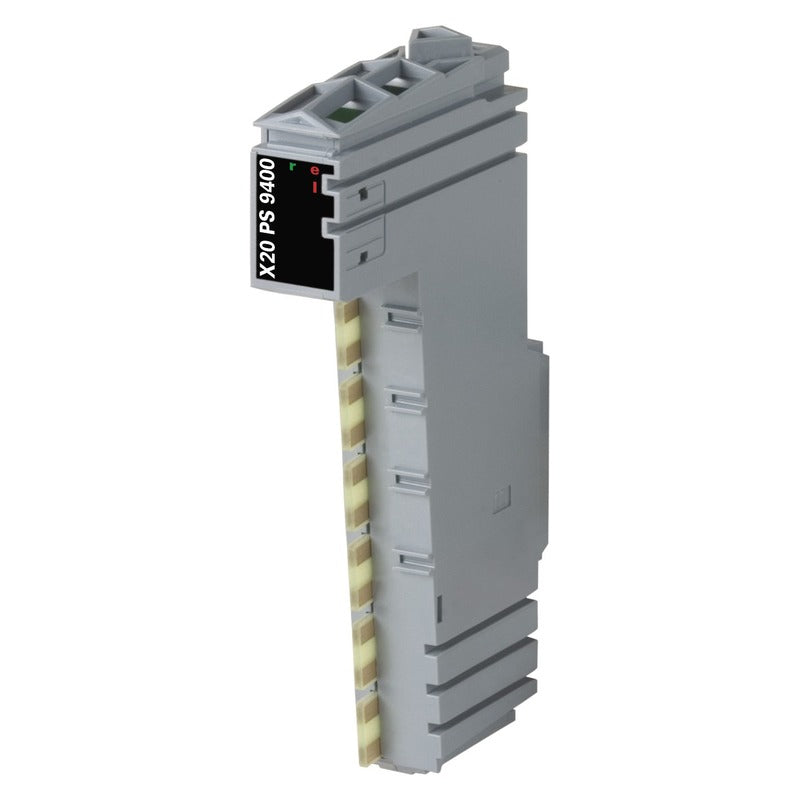

The B&R BRX20PS9400 is a industrial automation component. 24 VDC supply module for bus controller, X2X Link power supply and I/O. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| General | |
| Power supply module | 24 VDC supply module for bus controller, X2X Link power supply and I/O |
| Interfaces | 1x RS232 service interface |
| Diagnostics | |
| Module run/error | Yes, using LED status indicator and software |
| RS232 data transfer | Yes, using LED status indicator |
| Overload | Yes, using LED status indicator and software |
| Power consumption | |
| Internal I/O | 0.6 W |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| DNV | Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck) |
| CCS | Yes |
| LR | ENV1 |
| KR | Yes |
| ABS | Yes |
| BV | EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck |
| KC | Yes |
| B&R ID code | 0x1F8C |
| Status indicators | Overload, operating status, module status, RS232 |
| Power consumption for X2X Link power supply | 1.42 W |
| Additional power dissipation caused by actuators (resistive) [W] | - |
| Input voltage | 24 VDC -15% / +20% |
| Input current | Max. 0.7 A |
| Fuse | Integrated, cannot be replaced |
| Reverse polarity protection | Yes |
| Nominal output power | 7 W |
| Parallel connection | Yes |
| Redundant operation | Yes |
| Overload characteristics | Short-circuit proof, temporary overload |
| Fuse | Required line fuse: Max. 10 A, slow-blow |
| Reverse polarity protection | No |
| Nominal output voltage | 24 VDC |
| Behavior on short circuit | Required line fuse |
| Permissible contact load | 10 A |
| Service interface | |
| Signal | RS232 |
| Variant | Connection made using 12-pin terminal block X20TB12 |
| Max. transfer rate | 115.2 kbit/s |
| Electrical isolation | BC/X2X Link supply isolated from BC/X2X Link power supply I/O supply not isolated from I/O power supply, and RS232 not isolated from bus |
| Mounting orientation | |
| Horizontal | Yes |
| Vertical | Yes |
| Installation elevation above sea level | |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
| Operation | |
| Horizontal mounting orientation | -25 to 60°C |
| Vertical mounting orientation | -25 to 50°C |
| Derating | See section "Derating". |
| Storage | -40 to 85°C |
| Transport | -40 to 85°C |
| Relative humidity | |
| Operation | 5 to 95%, non-condensing |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| Note | Order 1x terminal block X20TB12 separately. Order 1x bus base X20BB8x separately. |
| Pitch | 12.5 +0.2 mm |
| X20BB80 | X20 bus base, for X20 base module (BC, HB, etc.) and X20 power supply module, X20 end cover plates (left and right) X20AC0SL1/X20AC0SR1 included |
| X20BB82 | X20 bus base, for X20 base module (BC, HB, etc.) and X20 power supply module, with 2 expansion slots for 2 X20 add-on modules (IF, HB, etc.), X20 end cover plates (left and right) X20AC0SL1/X20AC0SR1 included |
| X20BB81 | X20 bus base, for X20 base module (BC, HB, etc.) and X20 power supply module, with one expansion slot for X20 add-on module (IF, HB, etc.), X20 end cover plates (left and right) X20AC0SL1/X20AC0SR1 included |
| X20TB12 | X20 terminal block, 12-pin, 24 VDC keyed |
| Automation Studio HW Upgrades | Version (Date) |
| V2.6 HW Upgrade (X20PS9400) | 1.2.0.0 (10/01/2019) 1.0.2.3 (03/09/2015) 1.0.2.1 (04/11/2019) |
| V3.0 HW Upgrade (X20PS9400) | 1.6.0.0 (01/29/2021) 1.5.0.0 (12/17/2020) 1.4.0.0 (09/18/2020) 1.2.0.0 (10/01/2019) 1.0.2.3 (03/09/2015) 1.0.2.1 (04/11/2019) |
| V4.0 HW Upgrade (X20PS9400) | 1.9.0.0 (07/30/2025) 1.8.0.0 (01/20/2022) 1.7.0.0 (07/23/2021) 1.6.0.0 (01/29/2021) 1.5.0.0 (12/17/2020) 1.4.0.0 (09/18/2020) 1.3.0.0 (10/25/2019) 1.2.0.0 (10/01/2019) 1.0.2.3 (03/09/2015) 1.0.2.1 (04/11/2019) |
| V6.0 HW Upgrade (X20PS9400) | 1.9.0.1 (08/18/2026) 1.9.0.0 (07/30/2025) |
| Certificates | Version (Date) |
| 2226379 CSA Certificate of Compliance X20 X67 | 2026_09 (09/21/2026) |
| 64331_A1 BV Certificate of Compliance X20 | 2026_05 (05/05/2026) 1.00 (11/08/2022) - DE |
| ABS Certificate of Product Design Assessment - X20 IO Series | 2.00 (01/13/2025) |
| CCS Type Approval Certificate - X20 | 1.00 (06/28/2024) |
| Compass Safe Distance Certificate - X20 | 1.21 (08/23/2021) |
| E115267 UL Certificate of Compliance X20 | 2026_08_27 (08/27/2026) |
| EU Data Act - X20 IO - Connected Product Information Notice | 1.00 (09/30/2025) |
| EU Declaration ATEX X20 | 2023-07 (09/05/2023) |
| EU Declaration of conformity PLC X20 | 2021/10 (11/08/2021) |
| FTZU 09 ATEX 0083X | 3.00 (10/12/2021) |
| KR Type Approval Certificate MIL39390-AC003 (X20 System) | 2.0 (05/05/2025) 1.0 (07/10/2019) |
| Lloyds Register (X20 only) | 1.30 (07/07/2025) 1.20 (07/20/2022) |
| RINA Type Approval Certificate - X20 / Power Panel T30 | 1.00 (05/07/2021) |
| Safe cutoff of potential groups | 2.4 (11/29/2023) - EN |
| TAA00000BJ DNV Type Approval Certificate X20 | 13.0 (05/04/2026) 12.0 (02/18/2026) 11.0 (02/27/2024) |
| UK Declaration PLC X20 | 2024-01 (01/18/2024) |
| X20, X67 KC certificates | 2.00 (08/17/2026) |
| Documentation | Version (Date) |
| Datasheet X20(c)PS9400 | 3.20 (07/14/2025) - DE 3.20 (07/14/2025) - EN |
| X20 Package leaflet ATEX/CSA | 1.4 (09/17/2024) |
| X20 System User´s Manual | 4.40 (03/10/2026) - DE 4.40 (03/12/2026) - IT 4.40 (03/12/2026) - FR 4.40 (03/10/2026) - EN |
| E-CAD (Electro or EPLAN Templates) | Version (Date) |
| X20 EPLAN P8 from V2.4 | 4.0.5 (08/31/2023) 4.0.4 (10/27/2022) |
| M-CAD (Mechan. Templates) | Version (Date) |
| 3D File DXF/STEP X20 Electronic module | 1.0 (10/17/2005) |
| 3D File STEP X20 I/O-Slice | 1.1 (03/13/2019) |
| Dimensions PDF X20 Electronic module | 1.0 (10/17/2005) |
