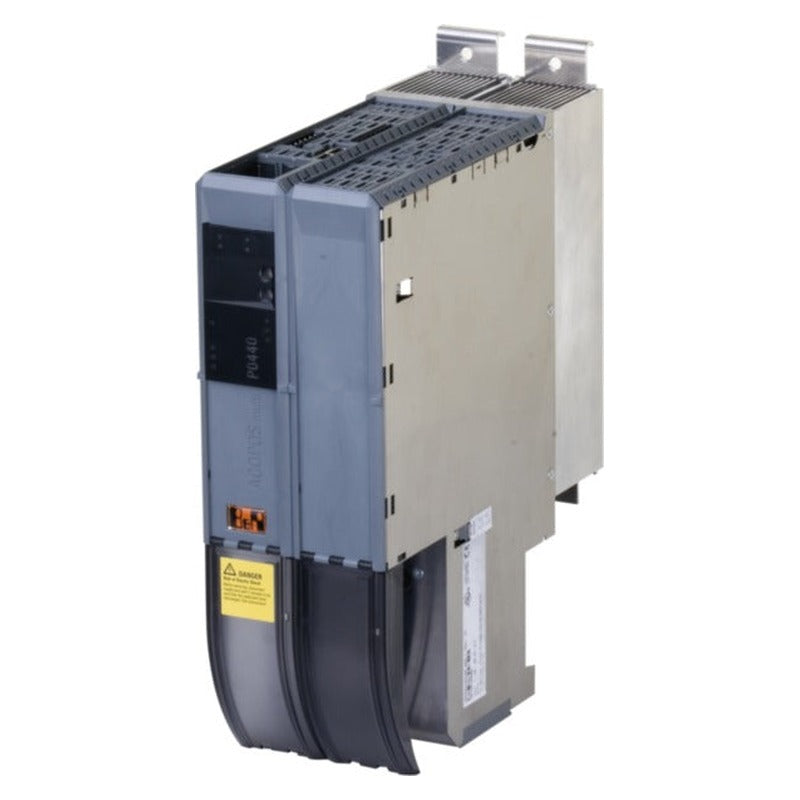

B&R 8BVP0440HW00.000-1 Power Supply

SKU: 8BVP0440HW00.000-1
(0)
$11,476.93
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

8BVP0440HW00.000-1 Industrial Automation Component | B&R

The B&R 8BVP0440HW00.000-1 is a industrial automation component. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Degree of protection per EN 60529: IP20.
  • Cooling and mounting type: Wall mounting.
  • Mains input voltage: 3x 220 to 3x 480 VAC ±10%.
  • Integrated line filter per EN 61800-3, category C3: No.
  • Power factor correction (PFC): Yes.
  • Nominal switching frequency: 5 kHz.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
Support
Dynamic node allocation (DNA) Yes
Certifications
CE Yes
UKCA Yes
CRA (Cyber Resilience Act) Evaluation ongoing
UL cULus E225616 Power conversion equipment
KC Yes
B&R ID code 0xA074
Cooling and mounting type Wall mounting
Slots for plug-in modules 2
Max. chargeable DC bus capacitance depending on mains voltage
230 VAC 17.4 mF
400 VAC 5.8 mF
480 VAC 4 mF
Execution
L1, L2, L3, PE Connector
PE M5 threaded bolt
Shield connection Yes
Flexible and fine-stranded wires
With wire end sleeve 0.5 to 16 mm²
Approbation data
UL/C-UL-US 20 to 6 AWG
CSA 20 to 6 AWG
Network configurations TT, TN-S, TN-C-S
Mains input voltage 3x 220 to 3x 480 VAC ±10%
Frequency 50 / 60 Hz ±4%
Installed load Max. 31.1 kW
Inrush current at 400 VAC Max. 67 A
Switch-on interval >300 s
Nominal switching frequency 5 kHz
Possible switching frequencies 5 / 10 kHz
Integrated line filter per EN 61800-3, category C3 No
Integrated regeneration choke No
Regenerative Yes
Power factor correction (PFC) Yes
Line fuse Max. 132 A (gG fuses per IEC 60269-1 or Class CC, J, T) Max. 110 A (circuit breaker per EN 60947-2 or UL 489)
Terminal cable cross section dimension of shield connection 23 to 35 mm
Voltage
Nominal 750 VDC
Reduction of continuous power depending on mains input voltage
Mains input voltage <3x 400 VAC 75 W/V * (400 V - Mains input voltage)
Reduction of continuous power depending on DC bus voltage (U DC )
U DC <750 VDC P * (1 - U DC /750)
Reduction of continuous power depending on switching frequency
Switching frequency 5 kHz 1.11 kW/K (starting at 40°C)
Switching frequency 10 kHz 0.35 kW/K (starting at -10°C)
Reduction of continuous power depending on installation elevation
Starting at 500 m above sea level 3 kW per 1000 m
Reduction of peak power depending on mains input voltage
Mains input voltage <3x 400 VAC 150 W/V * (400 V - Mains input voltage)
Power dissipation depending on switching frequency
Switching frequency 5 kHz [0.15*P²+10.5*P+40] W
Switching frequency 10 kHz [0.42*P²+16*P+130] W
Protective measures
Overload protection Yes
Short-circuit and ground fault protection No
Continuous power (supply and regeneration) 30 kW
Peak power (supply and regeneration) 60 kW
DC bus capacitance 825 µF
Execution ACOPOSmulti backplane
Input voltage 25 VDC ±1.6%
Input capacitance 4.7 µF
Max. power consumption 25 W + P SLOT1 + P SLOT2 + P 24 V Out + P Fan8BVF...
Overload protection No
Short-circuit proof Yes
Open-circuit monitoring No
Undervoltage monitoring No
Output voltage 24 V +5.8% / -0.1%
Continuous current 4.2 A
Max. overcurrent limiting 10 A
Output voltage
DC bus voltage (U DC ): 260 to 315 VDC 25 VDC * (U DC / 315)
DC bus voltage (U DC ): 315 to 800 VDC 24 VDC ±6%
Quantity 2
Fuse protection 250 mA (slow-blow) electronic, automatic reset
Electrical isolation
Input - Power supply module Yes
Input - Input Yes
Input voltage
Nominal 24 VDC
Maximum 30 VDC
Switching threshold
Low <5 V
High >15 V
Switching delay
Rising edge 52 μs ±0.5 μs (digitally filtered)
Falling edge 53 μs ±0.5 μs (digitally filtered)
Circuit Sink
Input current at nominal voltage Approx. 10 mA
Modulation compared to ground potential Max. ±38 V
Energy efficiency (IE classification)
Power dissipation relative to continuous apparent power IE2 (10,25) 0.6% IE2 (50,25) 0.6% IE2 (10,50) 0.6% IE2 (50,50) 0.8% IE2 (90,50) 1.3% IE2 (10,100) 0.6% IE2 (50,100) 1.3% IE2 (90,100) 2.4%
Nominal losses in standby mode 10.8 W
Discharge capacitance 0.9 µF
Permissible mounting orientations
Hanging vertically Yes
Horizontal, face up Yes
Standing horizontally No
Installation elevation above sea level
Nominal 0 to 500 m
Maximum 4000 m
Pollution degree per EN 61800-5-1 2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1 III
Degree of protection per EN 60529 IP20
Operation
Nominal 5 to 40°C
Maximum 55°C
Storage -25 to 55°C
Transport -25 to 70°C
Relative humidity
Operation 5 to 85%
Storage 5 to 95%
Transport Max. 95% at 40°C
Depth
Wall mounting 263 mm
Width 106.5 mm
Height 317 mm
Weight Approx. 5.5 kg
Module width 2
8BZVP044000.000-1A Screw clamp terminal block set for ACOPOSmulti 8BVP0220Hx00 and 8BVP0440Hx00 modules: 1x 8TB2106.2010-00, 1x 8TB2108.2010-00, 1x 8TB2104.204A-00, 1x 8TB4104.202L-10
8BXB000.0000-00 ACOPOSmulti accessory set for encoder buffering consisting of: 1x battery AA 3.6 V, 1x protective cover for battery holder
8BXF001.0000-00 ACOPOSmulti fan module, replacement fan for ACOPOSmulti modules (8BxP/8B0C/8BVI/8BVE/8B0K)
X20CA0E61.00100 POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1 m
X20CA0E61.00050 POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.5 m
X20CA0E61.00035 POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.35 m
X20CA0E61.00030 POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.3 m
X20CA0E61.00025 POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.25 m
X20CA0E61.00020 POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.2 m
8BAC0133.000-1 ACOPOSmulti plug-in module, 3 RS422 outputs for ABR encoder emulation, 1 MHz
8BAC0132.000-1 ACOPOSmulti plug-in module, 4 analog inputs ±10 V
8BAC0130.001-1 ACOPOSmulti plug-in module, 2 digital outputs, 50 mA, max. 62.5 kHz, 4 digital outputs, 500 mA, max 1.25 kHz
8BAC0130.000-1 ACOPOSmulti plug-in module, 2 digital outputs, 50 mA, max. 62.5 kHz, 2 digital outputs, 500 mA, max. 1.25 kHz, 2 digital inputs 24 VDC
8BAC0125.000-1 ACOPOSmulti plug-in module, SinCos EnDat 2.1/SSI/BiSS interface
8BAC0124.000-1 ACOPOSmulti plug-in module, SinCos interface
8BAC0123.002-1 ACOPOSmulti plug-in module, incremental encoder interface for 24 V single-ended and 24 V differential signals
8BAC0123.001-1 ACOPOSmulti plug-in module, incremental encoder interface for 5 V single-ended and 5 V differential signals
8BAC0123.000-1 ACOPOSmulti plug-in module, incremental encoder and SSI absolute encoder interface for RS422 signals
8BAC0122.000-1 ACOPOSmulti plug-in module, resolver interface 10 kHz
8BAC0121.000-1 ACOPOSmulti plug-in module, HIPERFACE interface
8BAC0120.001-2 ACOPOSmulti plug-in module, EnDat 2.2 interface
8BAC0120.000-1 ACOPOSmulti plug-in module, EnDat 2.1 interface
8SCS010.0000-00 ACOPOSmulti shield component set: 1x ACOPOSmulti holding plate SK14-20, 1x shield connection clamp SK20
8SCS008.0000-00 ACOPOSmulti shield component set: 1x shield plate 2x type 0, 1x hose clamp, B 9 mm, D 23-35 mm
8SCS007.0000-00 ACOPOSmulti shield component set: 1x shield mounting plate 2x 45°, 4x screws
8SCS005.0000-00 ACOPOSmulti shield component set: 1x slot cover / shield plate
8SCS002.0000-00 ACOPOSmulti shield component set: 1x clamping plate, 2x clamp D 4-13.5 mm, 2x screws
8TB4104.202L-10 Screw clamp terminal block 4-pin, one-row, pitch: 10.16 mm, label 2: PE L3 L2 L1, coding L: 1010
8TB2108.2010-00 8-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
8TB2106.2010-00 6-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
8TB2104.204A-00 4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 4: T- T+ F- F+, coding A: 0000
Automation Studio HW Upgrades Version (Date)
V3.0 HW Upgrade (8B0PXXXXXXXX.XXX-X) 1.0.0.0 (05/24/2011)
V4.0 HW Upgrade (8BVP0440HW00.000-1) 2.3.0.1 (09/09/2020) 2.3.0.0 (09/18/2018) 2.2.0.0 (09/01/2017)
V4.0 HW Upgrade (8BVPxxxxxxxx.xxx-1) 2.3.0.2 (03/06/2024)
V4.0 HW Upgrade (8BVPxxxxxxxx.xxx-x) 2.3.0.1 (09/09/2020) 2.3.0.0 (09/18/2018) 2.2.0.0 (09/01/2017)
V6.0 HW Upgrade (8BVP0440HW00.000-1) 2.3.1.0 (04/22/2026) 2.3.0.3 (09/30/2024)
V6.0 HW Upgrade (8BVPxxxxxxxx.xxx-1) 2.3.1.0 (04/22/2026) 2.3.0.3 (05/08/2024)
V6.0 HW Upgrade (8BVPxxxxxxxx.xxx-x) 2.3.1.0 (04/22/2026) 2.3.0.3 (02/26/2025)
Certificates Version (Date)
ACOPOSmulti KC certificates 1.10 (03/18/2024)
E225616 UL Certificate of Compliance ACOPOSmulti (UL 508C) 1.30 (07/20/2022)
EU Declaration Servos ACOPOSmulti 2026-06 (06/30/2026)
UK Declaration Servos ACOPOSmulti 2026-06 (06/29/2026)
Documentation Version (Date)
ACOPOSmulti User´s Manual 1.30 (08/18/2025) - DE 1.30 (08/18/2025) - EN 1.20 (10/09/2023) - DE 1.20 (12/05/2024) - IT 1.20 (12/05/2024) - FR 1.20 (10/09/2023) - EN
Datasheet 8BVP0440HW00.000-1 1.8 (12/07/2018) - DE 1.8 (12/07/2018) - EN
E-CAD (Electro or EPLAN Templates) Version (Date)
ACOPOSmulti EPLAN P8 from V2.4 4.0.1 (12/18/2020)
M-CAD (Mechan. Templates) Version (Date)
3D file STEP 8BVP0xx0HW00.000-x 3.1 (04/24/2024)

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the B&R 8BVP0440HW00.000-1 industrial automation component, share your existing part number or project requirements and our team will cross-reference comparable in-stock B&R units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Automation control and signal handling in industrial machinery.
  • Integration into new and existing control architectures.
  • Maintenance, spares and retrofit of installed equipment.
  • Machine and line-level use across manufacturing and process industries.

Warranty

  • Availability: 8BVP0440HW00.000-1 is stocked for prompt shipment; contact us for current quantity and lead time.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping is available, and orders over $500 ship free.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: B&R part 8BVP0440HW00.000-1 is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
