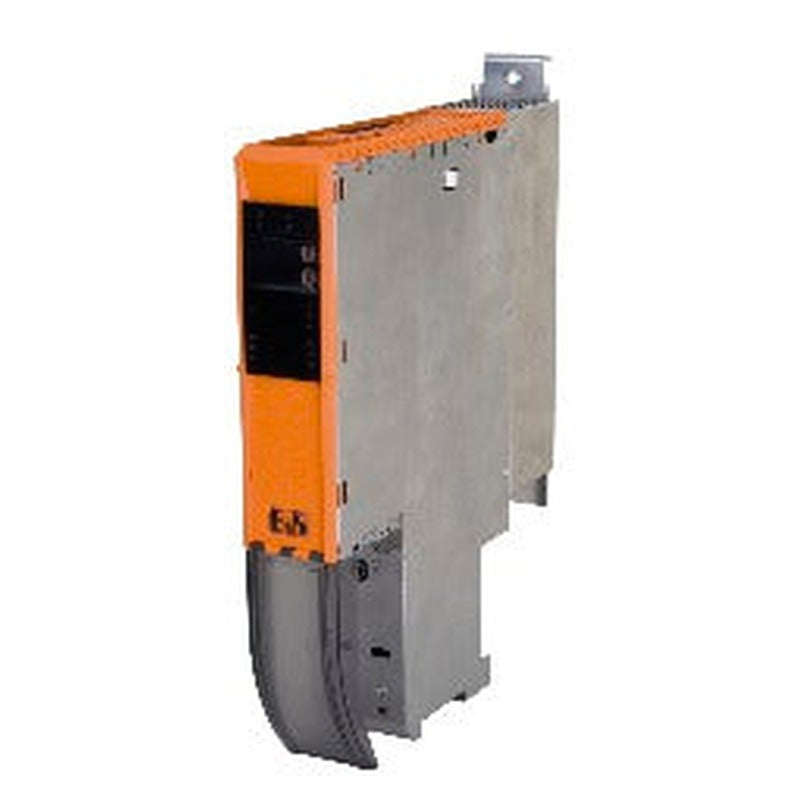

Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications |
| Support |
| Dynamic node allocation (DNA) |
Yes |
| Certifications |
| CE |
Yes |
| UKCA |
Yes |
| CRA (Cyber Resilience Act) |
Evaluation ongoing |
| Functional safety |
Yes |
| UL |
cULus E225616 Power conversion equipment |
| KC |
Yes |
| B&R ID code |
0x20B5 |
| Cooling and mounting type |
Wall mounting |
| Slots for plug-in modules |
2 |
| Voltage |
| Nominal |
750 VDC |
| Power dissipation depending on switching frequency |
| Switching frequency 5 kHz |
[1.2 * I M ² + 2.62 * I M + 100] W |
| Switching frequency 10 kHz |
[2.56 * I M ² + 2.8 * I M + 200] W |
| Switching frequency 20 kHz |
[6 * I M ² - 9.4 * I M + 430] W |
| Continuous power consumption |
11.19 kW |
| DC bus capacitance |
330 µF |
| Variant |
ACOPOSmulti backplane |
| Input voltage |
25 VDC ±1.6% |
| Input capacitance |
23.5 µF |
| Max. power consumption |
16 W + P SLOT1 + P SLOT2 + P 24 V Out + P HoldingBrake(s) |
| Output voltage |
| DC bus voltage (U DC ): 260 to 315 VDC |
25 VDC * (U DC /315) |
| DC bus voltage (U DC ): 315 to 800 VDC |
24 VDC ±6% |
| Quantity |
2 |
| Fuse protection |
250 mA (slow-blow) electronic, automatic reset |
| Reduction of continuous current depending on switching frequency |
| Switching frequency 5 kHz |
No reduction |
| Switching frequency 10 kHz |
0.22 A/K (starting at 43°C) |
| Switching frequency 20 kHz |
0.15 A/K (starting at -14°C) |
| Reduction of continuous current depending on installation elevation |
| Starting at 500 m above sea level |
0.76 A eff per 1000 m |
| Protective measures |
| Overload protection |
Yes |
| Short-circuit and ground fault protection |
Yes |
| Overload and short-circuit protection |
Yes |
| Open-circuit monitoring |
Yes |
| Undervoltage monitoring |
Yes |
| Output voltage |
24 VDC +5.8% / -0% |
| Continuous current per connection |
1.1 A |
| Max. internal resistance |
0.5 Ω |
| Extinction potential |
Approx. 30 V |
| Max. extinction energy per switching operation |
1.5 Ws |
| Max. switching frequency |
0.5 Hz |
| Response threshold for open-circuit monitoring |
Approx. 0.25 A |
| Response threshold for undervoltage monitoring |
24 VDC +0% / -4% |
| Variant |
| U, V, W, PE |
Connector |
| Shield connection |
Yes |
| Flexible and fine-stranded wires |
| With wire end sleeve |
0.25 to 6 mm² |
| Approbation data |
| UL/C-UL-US |
30 to 10 AWG |
| CSA |
28 to 10 AWG |
| Max. motor line length depending on switching frequency |
| Switching frequency 5 kHz |
25 m |
| Switching frequency 10 kHz |
25 m |
| Switching frequency 20 kHz |
10 m |
| Continuous power per motor connection |
5.5 kW |
| Continuous current per motor connection |
7.6 A eff |
| Peak current per motor connection |
18.9 A eff |
| Nominal switching frequency |
5 kHz |
| Possible switching frequencies |
5 / 10 / 20 kHz |
| Insulation stress of the connected motor per IEC TS 60034-25:2004 |
Limit value curve A |
| Max. output frequency |
598 Hz |
| Terminal cable cross section dimension of shield connection |
12 to 22 mm |
| Electrical isolation |
| Input - Inverter module |
Yes |
| Input - Input |
Yes |
| Input voltage |
| Nominal |
24 VDC |
| Maximum |
30 VDC |
| Switching threshold |
| Low |
<5 V |
| High |
>15 V |
| Switching delay at nominal input voltage |
| Enable 1 → 0, PWM off |
Max. 20.5 ms |
| Enable 0 → 1, ready for PWM |
Max. 100 µs |
| Quantity |
4 (2 per axis) |
| Circuit |
Sink |
| Input current at nominal voltage |
Approx. 30 mA |
| Modulation compared to ground potential |
Max. ±38 V |
| OSSD signal connections |
Permitted Max. test pulse length: 500 µs |
| Switching delay |
| Rising edge |
52 µs ±0.5 µs (digitally filtered) |
| Falling edge |
53 µs ±0.5 µs (digitally filtered) |
| Input current at nominal voltage |
Approx. 10 mA |
| Resistance range |
500 Ω to 5 kΩ |
| Energy efficiency (IE classification) |
| Power dissipation relative to continuous apparent power |
IE2 (10,25) 2.5% IE2 (50,25) 2.5% IE2 (10,50) 2.8% IE2 (50,50) 2.8% IE2 (90,50) 2.8% IE2 (10,100) 3.3% IE2 (50,100) 3.3% IE2 (90,100) 3.3% |
| Nominal losses in standby mode |
8.8 W |
| Discharge capacitance |
0.2 µF |
| Permissible mounting orientations |
| Hanging vertically |
Yes |
| Horizontal, face up |
Yes |
| Standing horizontally |
No |
| Installation elevation above sea level |
| Nominal |
0 to 500 m |
| Maximum |
4000 m |
| Pollution degree per EN 61800-5-1 |
2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 |
III |
| Degree of protection per EN 60529 |
IP20 |
| Operation |
| Nominal |
5 to 40°C |
| Maximum |
55°C |
| Storage |
-25 to 55°C |
| Transport |
-25 to 70°C |
| Relative humidity |
| Operation |
5 to 85% |
| Storage |
5 to 95% |
| Transport |
Max. 95% at 40°C |
| Depth |
| Wall mounting |
263 mm |
| Width |
53 mm |
| Height |
317 mm |
| Weight |
Approx. 2.9 kg |
| Module width |
1 |
| 8BZVI0055D0.000-1A |
Screw clamp terminal block set for ACOPOSmulti 8BVI00xxHxD0 modules: 1x 8TB2112.2010-00, 1x 8TB2108.2010-00, 1x 8TB2104.203L-00, 1x 8TB2104.203F-00, 1x 8TB3104.204G-11, 1x 8TB3104.204K-11 |
| 8BXB000.0000-00 |
ACOPOSmulti accessory set for encoder buffering consisting of: 1x battery AA 3.6 V, 1x protective cover for battery holder |
| 8BXF001.0000-00 |
ACOPOSmulti fan module, replacement fan for ACOPOSmulti modules (8BxP/8B0C/8BVI/8BVE/8B0K) |
| X20CA0E61.00100 |
POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1 m |
| X20CA0E61.00050 |
POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.5 m |
| X20CA0E61.00035 |
POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.35 m |
| X20CA0E61.00030 |
POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.3 m |
| X20CA0E61.00025 |
POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.25 m |
| X20CA0E61.00020 |
POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.2 m |
| 8BAC0133.000-1 |
ACOPOSmulti plug-in module, 3 RS422 outputs for ABR encoder emulation, 1 MHz |
| 8BAC0132.000-1 |
ACOPOSmulti plug-in module, 4 analog inputs ±10 V |
| 8BAC0130.001-1 |
ACOPOSmulti plug-in module, 2 digital outputs, 50 mA, max. 62.5 kHz, 4 digital outputs, 500 mA, max 1.25 kHz |
| 8BAC0130.000-1 |
ACOPOSmulti plug-in module, 2 digital outputs, 50 mA, max. 62.5 kHz, 2 digital outputs, 500 mA, max. 1.25 kHz, 2 digital inputs 24 VDC |
| 8BAC0125.000-1 |
ACOPOSmulti plug-in module, SinCos EnDat 2.1/SSI/BiSS interface |
| 8BAC0124.000-1 |
ACOPOSmulti plug-in module, SinCos interface |
| 8BAC0123.002-1 |
ACOPOSmulti plug-in module, incremental encoder interface for 24 V single-ended and 24 V differential signals |
| 8BAC0123.001-1 |
ACOPOSmulti plug-in module, incremental encoder interface for 5 V single-ended and 5 V differential signals |
| 8BAC0123.000-1 |
ACOPOSmulti plug-in module, incremental encoder and SSI absolute encoder interface for RS422 signals |
| 8BAC0122.000-1 |
ACOPOSmulti plug-in module, resolver interface 10 kHz |
| 8BAC0121.000-1 |
ACOPOSmulti plug-in module, HIPERFACE interface |
| 8BAC0120.001-2 |
ACOPOSmulti plug-in module, EnDat 2.2 interface |
| 8BAC0120.000-1 |
ACOPOSmulti plug-in module, EnDat 2.1 interface |
| 8SCS009.0000-00 |
ACOPOSmulti shield component set: 1x ACOPOSmulti holding plate SK8-14, 1x shield connection clamp SK14 |
| 8SCS005.0000-00 |
ACOPOSmulti shield component set: 1x slot cover / shield plate |
| 8SCS002.0000-00 |
ACOPOSmulti shield component set: 1x clamping plate, 2x clamp D 4-13.5 mm, 2x screws |
| 8SCS000.0000-00 |
ACOPOSmulti shield component set: 1x shield plate 1x type 0, 1x hose clamp, B 9 mm, D 12-22 mm |
| 8TB3104.204K-11 |
4-pin screw clamp terminal block, 1-row, pitch: 7.62 mm, label 4: PE W V U, coding K: 1001 |
| 8TB3104.204G-11 |
4-pin screw clamp terminal block, 1-row, pitch: 7.62 mm, label 4: PE W V U, coding G: 0110 |
| 8TB2112.2010-00 |
12-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively |
| 8TB2108.2010-00 |
8-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively |
| 8TB2104.203L-00 |
4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 3: T- T+ B- B+, coding L: 1010 |
| 8TB2104.203F-00 |
4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 3: T- T+ B- B+, coding F: 0101 |
| Automation Studio HW Upgrades |
Version (Date) |
| V3.0 HW Upgrade (8B0PXXXXXXXX.XXX-X) |
1.0.0.0 (05/24/2011) |
| V3.0 HW Upgrade (8BVIxxxxxxDx.xxx-x) |
1.0.0.6 (03/10/2014) |
| V4.0 HW Upgrade (8BVI0055HWD0.000-1) |
2.3.0.1 (09/09/2020) 2.3.0.0 (09/18/2018) 2.2.0.0 (09/01/2017) |
| V4.0 HW Upgrade (8BVIxxxxxxDx.xxx-1) |
2.3.0.2 (03/06/2024) |
| V4.0 HW Upgrade (8BVIxxxxxxDx.xxx-x) |
2.3.0.1 (09/09/2020) 2.3.0.0 (09/18/2018) 2.2.0.0 (09/01/2017) |
| V6.0 HW Upgrade (8BVI0055HWD0.000-1) |
2.3.1.0 (04/22/2026) 2.3.0.2 (09/30/2024) |
| V6.0 HW Upgrade (8BVIxxxxxxDx.xxx-1) |
2.3.1.0 (04/22/2026) 2.3.0.2 (09/30/2024) |
| V6.0 HW Upgrade (8BVIxxxxxxDx.xxx-x) |
2.3.1.0 (04/22/2026) 2.3.0.2 (02/26/2025) |
| Certificates |
Version (Date) |
| ACOPOSmulti KC certificates |
1.10 (03/18/2024) |
| E225616 UL Certificate of Compliance ACOPOSmulti (UL 508C) |
1.30 (07/20/2022) |
| E225616 UL Certificate of Compliance ACOPOSmulti (UL 61800-5-1) |
2.10 (07/20/2022) |
| EU Declaration FS Servos ACOPOSmulti |
2026-06 (07/08/2026) - EN 2026-06 (06/30/2026) |
| EU Declaration Servos ACOPOSmulti |
2026-06 (06/30/2026) |
| TÜV-certificate - function "Safe Pulse Disabling" for ACOPOSmulti |
2.10 (06/26/2026) |
| UK Declaration FS Servos ACOPOSmulti |
2026-06 (07/08/2026) - EN 2026-06 (06/29/2026) |
| UK Declaration Servos ACOPOSmulti |
2026-06 (06/29/2026) |
| Documentation |
Version (Date) |
| ACOPOSmulti User´s Manual |
1.30 (08/18/2025) - DE 1.30 (08/18/2025) - EN 1.20 (10/09/2023) - DE 1.20 (12/05/2024) - IT 1.20 (12/05/2024) - FR 1.20 (10/09/2023) - EN |
| Datasheet 8BVI0055HWD0.000-1 |
1.9 (02/19/2024) - DE 1.9 (02/19/2024) - EN |
| E-CAD (Electro or EPLAN Templates) |
Version (Date) |
| ACOPOSmulti EPLAN P8 from V2.4 |
4.0.1 (12/18/2020) |
| M-CAD (Mechan. Templates) |
Version (Date) |
| 3D file STEP 8BVI0055HWD0.000-x |
1.1 (04/28/2016) |
| Tools / Utilities / Examples |
Version (Date) |
| Sistema (VDMA) library |
6.8.1 (09/22/2026) 6.5.0 (02/02/2026) 3.7 (12/05/2022) 3.6 (08/26/2021) 3.5 (05/12/2020) 3.4 (02/17/2020) 3.3 (10/14/2019) 2.5 (10/03/2016) 2.4 (05/03/2016) 2.3 (09/04/2015) 2.2 (03/05/2015) 2.1 (03/02/2015) 2.0 (12/06/2012) 1.00 (05/06/2010) |
