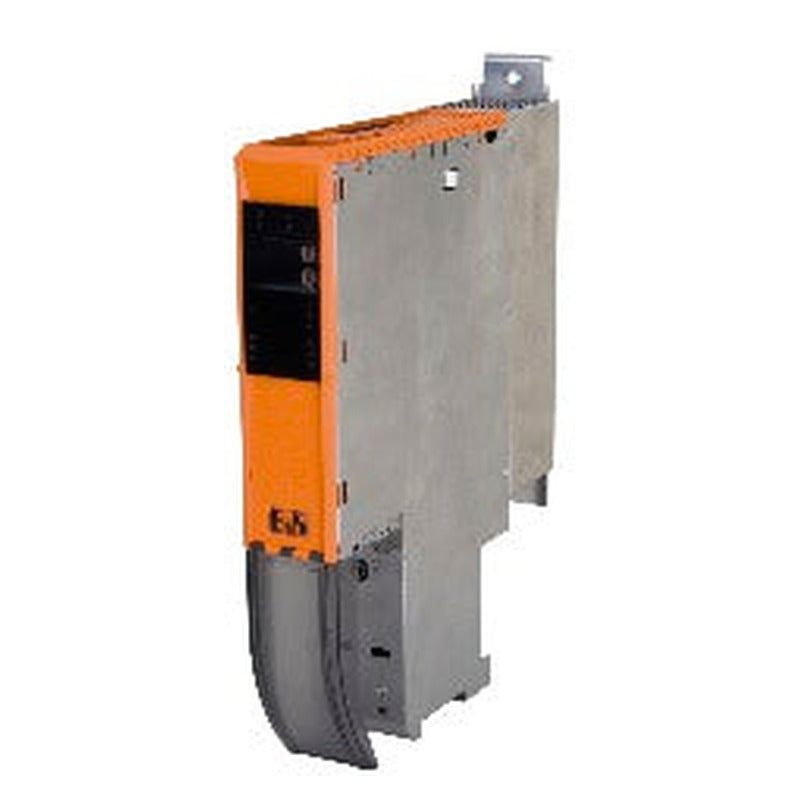

B&R 8BVI0055HWD0-000-1 Power Supply

SKU: 8BVI0055HWD0-000-1
(0)
$6,930.00
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

8BVI0055HWD0-000-1 Industrial Automation Component | B&R

The B&R 8BVI0055HWD0-000-1 is a industrial automation component. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Degree of protection per EN 60529: IP20.
  • Cooling and mounting type: Wall mounting.
  • Input voltage: 25 VDC ±1.6%.
  • Continuous power consumption: 11.19 kW.
  • Switching frequency 5 kHz: [1.2 * I M ² + 2.62 * I M + 100] W.
  • Continuous power per motor connection: 5.5 kW.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
Support
Dynamic node allocation (DNA) Yes
Certifications
CE Yes
UKCA Yes
CRA (Cyber Resilience Act) Evaluation ongoing
Functional safety Yes
UL cULus E225616 Power conversion equipment
KC Yes
B&R ID code 0x20B5
Cooling and mounting type Wall mounting
Slots for plug-in modules 2
Voltage
Nominal 750 VDC
Power dissipation depending on switching frequency
Switching frequency 5 kHz [1.2 * I M ² + 2.62 * I M + 100] W
Switching frequency 10 kHz [2.56 * I M ² + 2.8 * I M + 200] W
Switching frequency 20 kHz [6 * I M ² - 9.4 * I M + 430] W
Continuous power consumption 11.19 kW
DC bus capacitance 330 µF
Variant ACOPOSmulti backplane
Input voltage 25 VDC ±1.6%
Input capacitance 23.5 µF
Max. power consumption 16 W + P SLOT1 + P SLOT2 + P 24 V Out + P HoldingBrake(s)
Output voltage
DC bus voltage (U DC ): 260 to 315 VDC 25 VDC * (U DC /315)
DC bus voltage (U DC ): 315 to 800 VDC 24 VDC ±6%
Quantity 2
Fuse protection 250 mA (slow-blow) electronic, automatic reset
Reduction of continuous current depending on switching frequency
Switching frequency 5 kHz No reduction
Switching frequency 10 kHz 0.22 A/K (starting at 43°C)
Switching frequency 20 kHz 0.15 A/K (starting at -14°C)
Reduction of continuous current depending on installation elevation
Starting at 500 m above sea level 0.76 A eff per 1000 m
Protective measures
Overload protection Yes
Short-circuit and ground fault protection Yes
Overload and short-circuit protection Yes
Open-circuit monitoring Yes
Undervoltage monitoring Yes
Output voltage 24 VDC +5.8% / -0%
Continuous current per connection 1.1 A
Max. internal resistance 0.5 Ω
Extinction potential Approx. 30 V
Max. extinction energy per switching operation 1.5 Ws
Max. switching frequency 0.5 Hz
Response threshold for open-circuit monitoring Approx. 0.25 A
Response threshold for undervoltage monitoring 24 VDC +0% / -4%
Variant
U, V, W, PE Connector
Shield connection Yes
Flexible and fine-stranded wires
With wire end sleeve 0.25 to 6 mm²
Approbation data
UL/C-UL-US 30 to 10 AWG
CSA 28 to 10 AWG
Max. motor line length depending on switching frequency
Switching frequency 5 kHz 25 m
Switching frequency 10 kHz 25 m
Switching frequency 20 kHz 10 m
Continuous power per motor connection 5.5 kW
Continuous current per motor connection 7.6 A eff
Peak current per motor connection 18.9 A eff
Nominal switching frequency 5 kHz
Possible switching frequencies 5 / 10 / 20 kHz
Insulation stress of the connected motor per IEC TS 60034-25:2004 Limit value curve A
Max. output frequency 598 Hz
Terminal cable cross section dimension of shield connection 12 to 22 mm
Electrical isolation
Input - Inverter module Yes
Input - Input Yes
Input voltage
Nominal 24 VDC
Maximum 30 VDC
Switching threshold
Low <5 V
High >15 V
Switching delay at nominal input voltage
Enable 1 → 0, PWM off Max. 20.5 ms
Enable 0 → 1, ready for PWM Max. 100 µs
Quantity 4 (2 per axis)
Circuit Sink
Input current at nominal voltage Approx. 30 mA
Modulation compared to ground potential Max. ±38 V
OSSD signal connections Permitted Max. test pulse length: 500 µs
Switching delay
Rising edge 52 µs ±0.5 µs (digitally filtered)
Falling edge 53 µs ±0.5 µs (digitally filtered)
Input current at nominal voltage Approx. 10 mA
Resistance range 500 Ω to 5 kΩ
Energy efficiency (IE classification)
Power dissipation relative to continuous apparent power IE2 (10,25) 2.5% IE2 (50,25) 2.5% IE2 (10,50) 2.8% IE2 (50,50) 2.8% IE2 (90,50) 2.8% IE2 (10,100) 3.3% IE2 (50,100) 3.3% IE2 (90,100) 3.3%
Nominal losses in standby mode 8.8 W
Discharge capacitance 0.2 µF
Permissible mounting orientations
Hanging vertically Yes
Horizontal, face up Yes
Standing horizontally No
Installation elevation above sea level
Nominal 0 to 500 m
Maximum 4000 m
Pollution degree per EN 61800-5-1 2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1 III
Degree of protection per EN 60529 IP20
Operation
Nominal 5 to 40°C
Maximum 55°C
Storage -25 to 55°C
Transport -25 to 70°C
Relative humidity
Operation 5 to 85%
Storage 5 to 95%
Transport Max. 95% at 40°C
Depth
Wall mounting 263 mm
Width 53 mm
Height 317 mm
Weight Approx. 2.9 kg
Module width 1
8BZVI0055D0.000-1A Screw clamp terminal block set for ACOPOSmulti 8BVI00xxHxD0 modules: 1x 8TB2112.2010-00, 1x 8TB2108.2010-00, 1x 8TB2104.203L-00, 1x 8TB2104.203F-00, 1x 8TB3104.204G-11, 1x 8TB3104.204K-11
8BXB000.0000-00 ACOPOSmulti accessory set for encoder buffering consisting of: 1x battery AA 3.6 V, 1x protective cover for battery holder
8BXF001.0000-00 ACOPOSmulti fan module, replacement fan for ACOPOSmulti modules (8BxP/8B0C/8BVI/8BVE/8B0K)
X20CA0E61.00100 POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1 m
X20CA0E61.00050 POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.5 m
X20CA0E61.00035 POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.35 m
X20CA0E61.00030 POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.3 m
X20CA0E61.00025 POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.25 m
X20CA0E61.00020 POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.2 m
8BAC0133.000-1 ACOPOSmulti plug-in module, 3 RS422 outputs for ABR encoder emulation, 1 MHz
8BAC0132.000-1 ACOPOSmulti plug-in module, 4 analog inputs ±10 V
8BAC0130.001-1 ACOPOSmulti plug-in module, 2 digital outputs, 50 mA, max. 62.5 kHz, 4 digital outputs, 500 mA, max 1.25 kHz
8BAC0130.000-1 ACOPOSmulti plug-in module, 2 digital outputs, 50 mA, max. 62.5 kHz, 2 digital outputs, 500 mA, max. 1.25 kHz, 2 digital inputs 24 VDC
8BAC0125.000-1 ACOPOSmulti plug-in module, SinCos EnDat 2.1/SSI/BiSS interface
8BAC0124.000-1 ACOPOSmulti plug-in module, SinCos interface
8BAC0123.002-1 ACOPOSmulti plug-in module, incremental encoder interface for 24 V single-ended and 24 V differential signals
8BAC0123.001-1 ACOPOSmulti plug-in module, incremental encoder interface for 5 V single-ended and 5 V differential signals
8BAC0123.000-1 ACOPOSmulti plug-in module, incremental encoder and SSI absolute encoder interface for RS422 signals
8BAC0122.000-1 ACOPOSmulti plug-in module, resolver interface 10 kHz
8BAC0121.000-1 ACOPOSmulti plug-in module, HIPERFACE interface
8BAC0120.001-2 ACOPOSmulti plug-in module, EnDat 2.2 interface
8BAC0120.000-1 ACOPOSmulti plug-in module, EnDat 2.1 interface
8SCS009.0000-00 ACOPOSmulti shield component set: 1x ACOPOSmulti holding plate SK8-14, 1x shield connection clamp SK14
8SCS005.0000-00 ACOPOSmulti shield component set: 1x slot cover / shield plate
8SCS002.0000-00 ACOPOSmulti shield component set: 1x clamping plate, 2x clamp D 4-13.5 mm, 2x screws
8SCS000.0000-00 ACOPOSmulti shield component set: 1x shield plate 1x type 0, 1x hose clamp, B 9 mm, D 12-22 mm
8TB3104.204K-11 4-pin screw clamp terminal block, 1-row, pitch: 7.62 mm, label 4: PE W V U, coding K: 1001
8TB3104.204G-11 4-pin screw clamp terminal block, 1-row, pitch: 7.62 mm, label 4: PE W V U, coding G: 0110
8TB2112.2010-00 12-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
8TB2108.2010-00 8-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
8TB2104.203L-00 4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 3: T- T+ B- B+, coding L: 1010
8TB2104.203F-00 4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 3: T- T+ B- B+, coding F: 0101
Automation Studio HW Upgrades Version (Date)
V3.0 HW Upgrade (8B0PXXXXXXXX.XXX-X) 1.0.0.0 (05/24/2011)
V3.0 HW Upgrade (8BVIxxxxxxDx.xxx-x) 1.0.0.6 (03/10/2014)
V4.0 HW Upgrade (8BVI0055HWD0.000-1) 2.3.0.1 (09/09/2020) 2.3.0.0 (09/18/2018) 2.2.0.0 (09/01/2017)
V4.0 HW Upgrade (8BVIxxxxxxDx.xxx-1) 2.3.0.2 (03/06/2024)
V4.0 HW Upgrade (8BVIxxxxxxDx.xxx-x) 2.3.0.1 (09/09/2020) 2.3.0.0 (09/18/2018) 2.2.0.0 (09/01/2017)
V6.0 HW Upgrade (8BVI0055HWD0.000-1) 2.3.1.0 (04/22/2026) 2.3.0.2 (09/30/2024)
V6.0 HW Upgrade (8BVIxxxxxxDx.xxx-1) 2.3.1.0 (04/22/2026) 2.3.0.2 (09/30/2024)
V6.0 HW Upgrade (8BVIxxxxxxDx.xxx-x) 2.3.1.0 (04/22/2026) 2.3.0.2 (02/26/2025)
Certificates Version (Date)
ACOPOSmulti KC certificates 1.10 (03/18/2024)
E225616 UL Certificate of Compliance ACOPOSmulti (UL 508C) 1.30 (07/20/2022)
E225616 UL Certificate of Compliance ACOPOSmulti (UL 61800-5-1) 2.10 (07/20/2022)
EU Declaration FS Servos ACOPOSmulti 2026-06 (07/08/2026) - EN 2026-06 (06/30/2026)
EU Declaration Servos ACOPOSmulti 2026-06 (06/30/2026)
TÜV-certificate - function "Safe Pulse Disabling" for ACOPOSmulti 2.10 (06/26/2026)
UK Declaration FS Servos ACOPOSmulti 2026-06 (07/08/2026) - EN 2026-06 (06/29/2026)
UK Declaration Servos ACOPOSmulti 2026-06 (06/29/2026)
Documentation Version (Date)
ACOPOSmulti User´s Manual 1.30 (08/18/2025) - DE 1.30 (08/18/2025) - EN 1.20 (10/09/2023) - DE 1.20 (12/05/2024) - IT 1.20 (12/05/2024) - FR 1.20 (10/09/2023) - EN
Datasheet 8BVI0055HWD0.000-1 1.9 (02/19/2024) - DE 1.9 (02/19/2024) - EN
E-CAD (Electro or EPLAN Templates) Version (Date)
ACOPOSmulti EPLAN P8 from V2.4 4.0.1 (12/18/2020)
M-CAD (Mechan. Templates) Version (Date)
3D file STEP 8BVI0055HWD0.000-x 1.1 (04/28/2016)
Tools / Utilities / Examples Version (Date)
Sistema (VDMA) library 6.8.1 (09/22/2026) 6.5.0 (02/02/2026) 3.7 (12/05/2022) 3.6 (08/26/2021) 3.5 (05/12/2020) 3.4 (02/17/2020) 3.3 (10/14/2019) 2.5 (10/03/2016) 2.4 (05/03/2016) 2.3 (09/04/2015) 2.2 (03/05/2015) 2.1 (03/02/2015) 2.0 (12/06/2012) 1.00 (05/06/2010)

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the B&R 8BVI0055HWD0-000-1 industrial automation component, share your existing part number or project requirements and our team will cross-reference comparable in-stock B&R units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Automation control and signal handling in industrial machinery.
  • Integration into new and existing control architectures.
  • Maintenance, spares and retrofit of installed equipment.
  • Machine and line-level use across manufacturing and process industries.

Warranty

  • Availability: 8BVI0055HWD0-000-1 is stocked for prompt shipment; contact us for current quantity and lead time.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping is available, and orders over $500 ship free.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: B&R part 8BVI0055HWD0-000-1 is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
