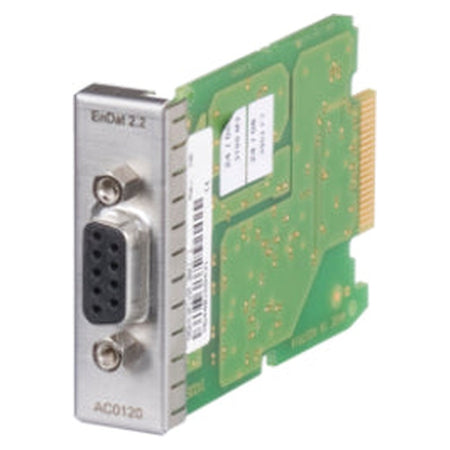

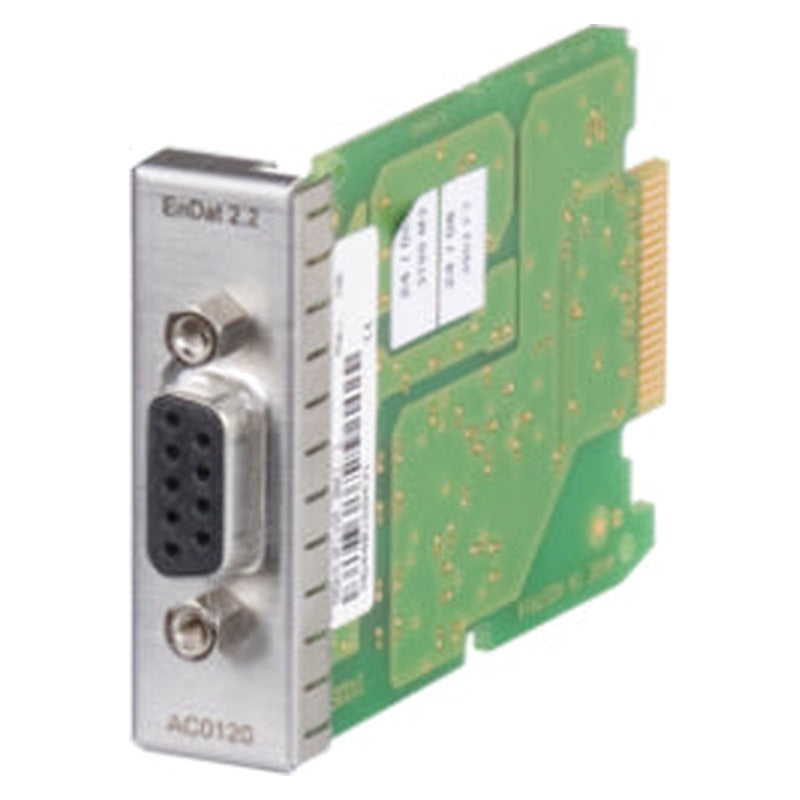

The B&R 8BAC0120.001-2 is a industrial automation component. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| UL | cULus E225616 Power conversion equipment |
| KC | Yes |
| Module type | ACOPOSmulti plug-in module |
| B&R ID code | 0xB0BF |
| Slot | Slots 1 and 2 |
| Max. power consumption | P Module [mW] = 500 mW + 19 V * I Encoder [mA] |
| Electrical isolation | |
| Encoder - ACOPOSmulti | No |
| Module-side connection | 9-pin male DSUB connector |
| Status indicators | UP/DN LEDs |
| Encoder monitoring | Yes |
| Max. encoder cable length | 100 m Depends on the cross section of the power supply wires in the encoder cable |
| Protective measures | |
| Overload-proof | Yes |
| Short-circuit proof | Yes |
| Output voltage | Typ. 12.5 V |
| Load capacity | 350 mA |
| Signal transmission | RS485 |
| Baud rate | 6.25 Mbit/s |
| Operation | |
| Nominal | 5 to 40°C |
| Maximum | 55°C |
| Storage | -25 to 55°C |
| Transport | -25 to 70°C |
| Relative humidity | |
| Operation | 5 to 85% |
| Storage | 5 to 95% |
| Transport | Max. 95% at 40°C |
| 8BCF0025.1221B-0 | EnDat 2.2 cable, length 25 m, 4x 4x 0.14 mm² + 4x 0.35 mm², 12-pin female series 615 signal connector, 9-pin male DSUB servo connector, can be used in cable drag chains |
| 8BCF0020.1221B-0 | EnDat 2.2 cable, length 20 m, 4x 4x 0.14 mm² + 4x 0.35 mm², 12-pin female series 615 signal connector, 9-pin male DSUB servo connector, can be used in cable drag chains |
| 8BCF0015.1221B-0 | EnDat 2.2 cable, length 15 m, 4x 4x 0.14 mm² + 4x 0.35 mm², 12-pin female series 615 signal connector, 9-pin male DSUB servo connector, can be used in cable drag chains |
| 8BCF0010.1221B-0 | EnDat 2.2 cable, length 10 m, 4x 4x 0.14 mm² + 4x 0.35 mm², 12-pin female series 615 signal connector, 9-pin male DSUB servo connector, can be used in cable drag chains |
| 8BCF0007.1221B-0 | EnDat 2.2 cable, length 7 m, 4x 4x 0.14 mm² + 4x 0.35 mm², 12-pin female series 615 signal connector, 9-pin male DSUB servo connector, can be used in cable drag chains |
| 8BCF0005.1221B-0 | EnDat 2.2 cable, length 5 m, 4x 4x 0.14 mm² + 4x 0.35 mm², 12-pin female series 615 signal connector, 9-pin male DSUB servo connector, can be used in cable drag chains |
| Automation Studio HW Upgrades | Version (Date) |
| V3.0 Upgrade (8BAC0120.001-2) | 1.0.0.0 (02/11/2010) |
| V4.0 HW Upgrade (8BAC0120.001-2) | 2.2.0.0 (09/01/2017) |
| V6.0 HW Upgrade (8BAC0120.001-2) | 2.2.1.0 (04/22/2026) 2.2.0.0 (09/30/2024) |
| Certificates | Version (Date) |
| ACOPOSmulti KC certificates | 1.10 (03/18/2024) |
| E225616 UL Certificate of Compliance ACOPOSmulti (UL 508C) | 1.30 (07/20/2022) |
| E225616 UL Certificate of Compliance ACOPOSmulti (UL 61800-5-1) | 2.10 (07/20/2022) |
| EU Declaration Servos ACOPOSmulti | 2026-06 (06/30/2026) |
| UK Declaration Servos ACOPOSmulti | 2026-06 (06/29/2026) |
| Documentation | Version (Date) |
| ACOPOSmulti User´s Manual | 1.30 (08/18/2025) - DE 1.30 (08/18/2025) - EN 1.20 (10/09/2023) - DE 1.20 (12/05/2024) - IT 1.20 (12/05/2024) - FR 1.20 (10/09/2023) - EN |
| Datasheet 8BAC0120.001-2 | 1.3 (09/20/2018) - DE 1.3 (11/09/2018) - EN |
| E-CAD (Electro or EPLAN Templates) | Version (Date) |
| ACOPOSmulti EPLAN P8 from V2.4 | 4.0.1 (12/18/2020) |
Model variants, options and firmware revisions can affect fitment. Before ordering the B&R 8BAC0120.001-2 industrial automation component, share your existing part number or project requirements and our team will cross-reference comparable in-stock B&R units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.
