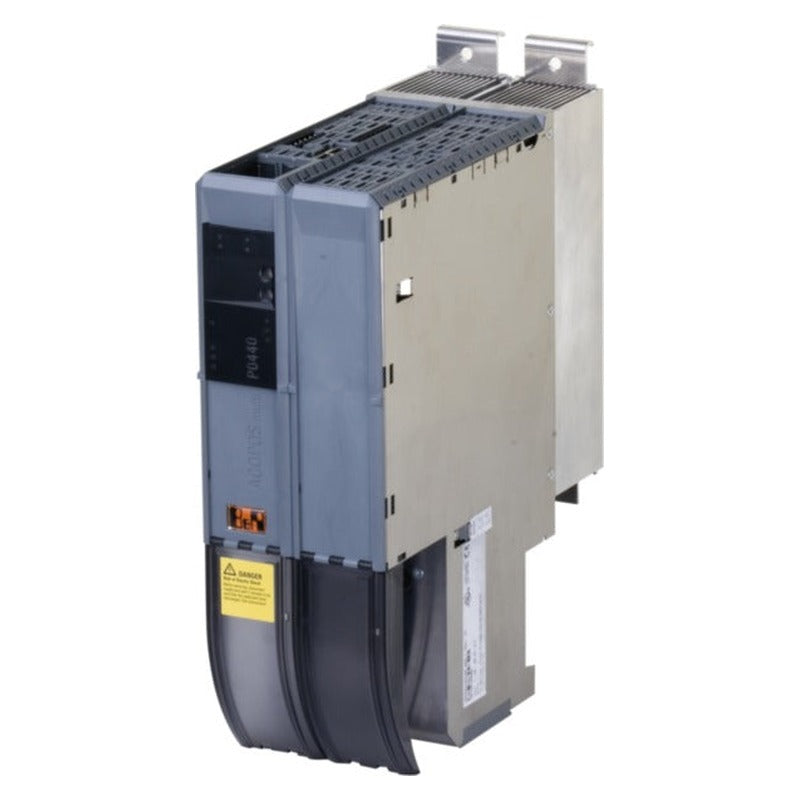

The B&R 8B0P0440HW00-0001 is a industrial automation component. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| Support | |
| Dynamic node allocation (DNA) | Yes |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| UL | cULus E225616 Power conversion equipment |
| KC | Yes |
| B&R ID code | 0xA8EA |
| Cooling and mounting type | Wall mounting |
| Max. chargeable DC bus capacitance depending on mains voltage | |
| 400 VAC | 14.4 mF |
| 480 VAC | 10 mF |
| Variant | |
| L1, L2, L3, PE | Connector |
| PE | M5 threaded bolt |
| Shield connection | Yes |
| RB+, RB-, PE | Connector |
| Flexible and fine-stranded wires | |
| With wire end sleeve | 0.5 to 16 mm² |
| With wire end sleeve | 0.5 to 6 mm² |
| Approbation data | |
| UL/C-UL-US | 20 to 6 AWG |
| CSA | 20 to 6 AWG |
| Network configurations | TT, TN-S, TN-C-S |
| Mains input voltage | 3x 380 to 3x 500 VAC ±10% |
| Frequency | 50 / 60 Hz ±4% |
| Installed load | Max. 30.4 kVA |
| Power dissipation with continuous power | Approx. 300 W |
| Inrush current at 400 VAC | 10 A |
| Switch-on interval | >120 s |
| Integrated line filter per EN 61800-3, category C3 | No |
| Integrated regeneration choke | No |
| Regenerative | No |
| Power factor correction (PFC) | No |
| Line fuse | Max. 132 A (gG fuses per IEC 60269-1 or Class CC, J, T) Max. 110 A (circuit breaker per EN 60947-2 or UL 489) |
| Terminal cable cross section dimension of shield connection | 23 to 35 mm |
| UL/C-UL-US | 20 to 8 AWG |
| CSA | 20 to 8 AWG |
| Voltage | |
| Nominal | 537 to 707 VDC |
| Reduction of continuous power depending on mains input voltage | |
| Mains input voltage <3x 400 VAC | 40 W/V * (400 V - Mains input voltage) |
| Reduction of continuous power depending on installation elevation | |
| Starting at 500 m above sea level | 1.6 kW per 1000 m |
| Protective measures | |
| Overload protection | Yes |
| Short-circuit and ground fault protection | No |
| Continuous power | 16 kW |
| Reduction of continuous power depending on cooling method | In preparation |
| Peak power output (supply) | 48 kW |
| Power dissipation with continuous power | In preparation |
| DC bus capacitance | 1320 µF |
| Variant | ACOPOSmulti backplane |
| Input voltage | 25 VDC ±1.6% |
| Input capacitance | 23.5 µF |
| Max. power consumption | 12 W |
| Short-circuit and ground fault protection | Yes (with RB+ by externally replaceable melting fuse) |
| Peak power output | 65 kW (max. 1 s) |
| Continuous power | 3 kW |
| Min. braking resistance | 7.5 Ω |
| Rated current of built-in fuse | 30 A (fast-acting) |
| Energy efficiency (IE classification) | |
| Power dissipation relative to continuous apparent power | IE2 (10;25) 0.2% IE2 (50;25) 0.3% IE2 (10;50) 0.2% IE2 (50;50) 0.3% IE2 (90;50) 0.6% IE2 (10;100) 0.3% IE2 (50;100) 0.6% IE2 (90;100) 1.3% |
| Nominal losses in standby mode | 6 W |
| Discharge capacitance | 0.9 µF |
| Permissible mounting orientations | |
| Hanging vertically | Yes |
| Horizontal, face up | Yes |
| Standing horizontally | No |
| Installation elevation above sea level | |
| Nominal | 0 to 500 m |
| Maximum | 4000 m |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 | III |
| Degree of protection per EN 60529 | IP20 |
| Operation | |
| Nominal | 5 to 40°C |
| Maximum | 55°C |
| Storage | -25 to 55°C |
| Transport | -25 to 70°C |
| Relative humidity | |
| Operation | 5 to 85% |
| Storage | 5 to 95% |
| Transport | Max. 95% at 40°C |
| Depth | |
| Wall mounting | 263 mm |
| Width | 106.5 mm |
| Height | 317 mm |
| Weight | Approx. 6.1 kg |
| Module width | 2 |
| 8BZ0P044000.000-1A | Screw clamp terminal block set for ACOPOSmulti 8B0P0220Hx00.00x-1 and 8B0P0440Hx00.00x-1 modules: 1x 8TB4104.202L-10, 1x 8TB4103.202A-00, 1x 8TB2106.2010-00 |
| 8B0W0079H000.001-1 | Braking resistor, 790 W, 33 R, IP65, terminals |
| 8B0W0079H000.000-1 | Braking resistor, 790 W, 33 R, IP20, terminals |
| 8B0W0045H000.001-1 | Braking resistor, 450 W, 50 R, IP65, terminals |
| 8BXF001.0000-00 | ACOPOSmulti fan module, replacement fan for ACOPOSmulti modules (8BxP/8B0C/8BVI/8BVE/8B0K) |
| 8BXS003.0000-00 | ACOPOSmulti fuse set: 1x fuse 10 x 38 mm, 30 A, fast-acting |
| X20CA0E61.00100 | POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1 m |
| X20CA0E61.00050 | POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.5 m |
| X20CA0E61.00035 | POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.35 m |
| X20CA0E61.00030 | POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.3 m |
| X20CA0E61.00025 | POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.25 m |
| X20CA0E61.00020 | POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.2 m |
| 8SCS010.0000-00 | ACOPOSmulti shield component set: 1x ACOPOSmulti holding plate SK14-20, 1x shield connection clamp SK20 |
| 8SCS009.0000-00 | ACOPOSmulti shield component set: 1x ACOPOSmulti holding plate SK8-14, 1x shield connection clamp SK14 |
| 8SCS002.0000-00 | ACOPOSmulti shield component set: 1x clamping plate, 2x clamp D 4-13.5 mm, 2x screws |
| 8SCS000.0000-00 | ACOPOSmulti shield component set: 1x shield plate 1x type 0, 1x hose clamp, B 9 mm, D 12-22 mm |
| 8TB4104.202L-10 | Screw clamp terminal block 4-pin, one-row, pitch: 10.16 mm, label 2: PE L3 L2 L1, coding L: 1010 |
| 8TB4103.202A-00 | 3-pin screw clamp terminal block, one-row, pitch: 10.16 mm, label 2: PE RB- RB+, coding A: 000 |
| 8TB2106.2010-00 | 6-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively |
| 8B0W0045H000.000-1 | Braking resistor, 450 W, 50 R, IP20, terminals |
| Automation Studio HW Upgrades | Version (Date) |
| V3.0 HW Upgrade (8B0PXXXXXXXX.XXX-X) | 1.0.0.0 (05/24/2011) |
| V4.0 HW Upgrade (8B0P0440HW00.000-1) | 2.3.0.1 (09/09/2020) 2.3.0.0 (09/18/2018) 2.2.0.0 (09/01/2017) |
| V4.0 HW Upgrade (8B0Pxxxxxxxx.xxx-1) | 2.3.0.2 (03/06/2024) |
| V4.0 HW Upgrade (8B0Pxxxxxxxx.xxx-x) | 2.3.0.1 (09/09/2020) 2.3.0.0 (09/18/2018) 2.2.0.1 (04/13/2018) 2.2.0.0 (09/01/2017) |
| V6.0 HW Upgrade (8B0P0440HW00.000-1) | 2.3.1.0 (04/22/2026) 2.3.0.3 (05/08/2024) |
| V6.0 HW Upgrade (8B0Pxxxxxxxx.xxx-1) | 2.3.1.0 (04/22/2026) 2.3.0.3 (05/08/2024) |
| Certificates | Version (Date) |
| ACOPOSmulti KC certificates | 1.10 (03/18/2024) |
| E225616 UL Certificate of Compliance ACOPOSmulti (UL 508C) | 1.30 (07/20/2022) |
| E225616 UL Certificate of Compliance ACOPOSmulti (UL 61800-5-1) | 2.10 (07/20/2022) |
| EU Declaration Servos ACOPOSmulti | 2026-06 (06/30/2026) |
| UK Declaration Servos ACOPOSmulti | 2026-06 (06/29/2026) |
| Documentation | Version (Date) |
| ACOPOSmulti User´s Manual | 1.30 (08/18/2025) - DE 1.30 (08/18/2025) - EN 1.20 (10/09/2023) - DE 1.20 (12/05/2024) - IT 1.20 (12/05/2024) - FR 1.20 (10/09/2023) - EN |
| Datasheet 8B0P0440HW00.000-1 | 1.9 (04/23/2019) - DE 1.9 (04/23/2019) - EN |
| E-CAD (Electro or EPLAN Templates) | Version (Date) |
| ACOPOSmulti EPLAN P8 from V2.4 | 4.0.1 (12/18/2020) |
| M-CAD (Mechan. Templates) | Version (Date) |
| 3D file STEP 8B0P0xx0HW00.00x-1 | 3.0 (04/09/2011) |
