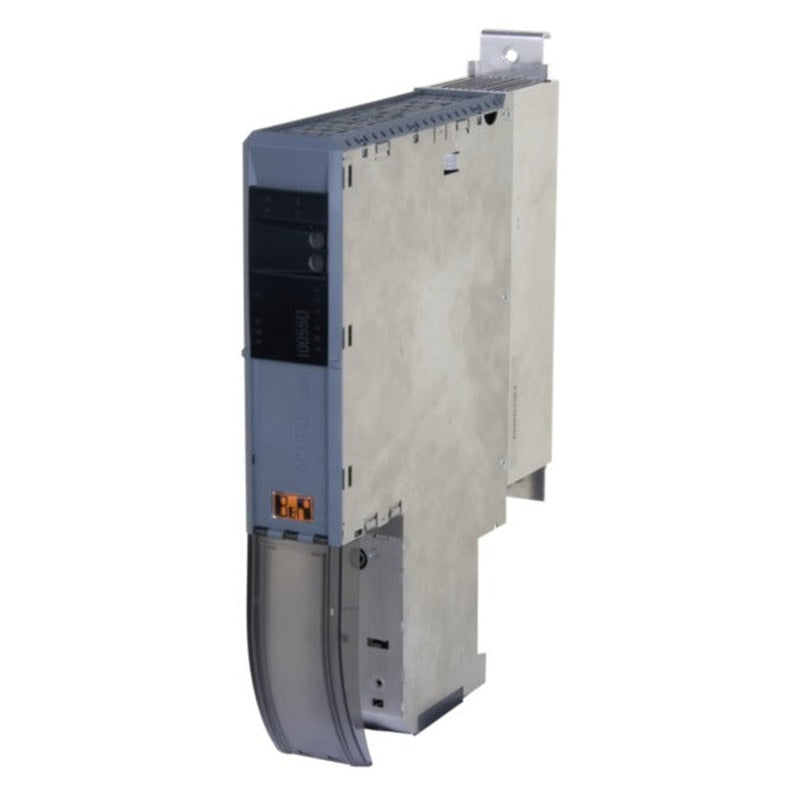

B&R 8B0C0320HW00-000-1 Power Supply

SKU: 8B0C0320HW00-000-1
(0)
$3,927.55
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

8B0C0320HW00-000-1 Industrial Automation Component | B&R

The B&R 8B0C0320HW00-000-1 is a industrial automation component. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Degree of protection per EN 60529: IP20.
  • Cooling and mounting type: Wall mounting.
  • Full continuous power: 315 to 800 VDC.
  • CE: Yes.
  • UKCA: Yes.
  • CRA (Cyber Resilience Act): In preparation.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
Certifications
CE Yes
UKCA Yes
CRA (Cyber Resilience Act) In preparation
UL cULus E225616 Power conversion equipment
KC Yes
Cooling and mounting type Wall mounting
Voltage
Nominal 750 VDC
Operating range in continuous operation 260 to 800 VDC
Full continuous power 315 to 800 VDC
Continuous power consumption Max. 880 W
Power dissipation with continuous power 22 W (0% continuous power) 35 W (50% continuous power) 80 W (100% continuous power)
DC bus capacitance 220 nF
Variant ACOPOSmulti backplane
Output voltage
DC bus voltage (U DC ): 260 to 315 VDC 25 VDC * (U DC / 315)
DC bus voltage (U DC ): 315 to 800 VDC 24 VDC ±6%
Reduction of continuous power depending on installation elevation
Starting at 500 m above sea level 80 W per 1000 m
Continuous power 800 W
Continuous current 32 ADC
Reduction of continuous power at ambient temperatures starting at 40°C No reduction
Reduction of continuous power depending on cooling method No reduction
Startup delay Max. 1 s
Startup time Approx. 5 to 20 ms
Residual ripple Typ. 50 mV SS
Peak current (<4 s)
DC bus voltage (U DC ): 350 to 800 VDC 42 ADC
Protective measures
No-load proof Yes
Overload-proof Yes
Short-circuit proof Yes
Feedback protection Max. 26 VDC (also when the power is switched off)
Overtemperature protection Yes
Dielectric strength to ground ±50 VDC
Output/Input isolation SELV / PELV requirements
Output voltage 25 VDC ±1.6%
Permissible mounting orientations
Hanging vertically Yes
Horizontal, face up Yes
Standing horizontally No
Installation elevation above sea level
Nominal 0 to 500 m
Maximum 4000 m
Pollution degree per EN 61800-5-1 2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1 III
Degree of protection per EN 60529 IP20
Operation
Nominal 5 to 40°C
Maximum 55°C
Storage -25 to 55°C
Transport -25 to 70°C
Relative humidity
Operation 5 to 85%
Storage 5 to 95%
Transport Max. 95% at 40°C
Depth
Wall mounting 263 mm
Width 53 mm
Height 317 mm
Weight Approx. 3 kg
Module width 1
8BZ0C032000.000-1A Screw clamp terminal block set for ACOPOSmulti 8B0C0xx0Hx00.000-1 modules: 1x 8TB2106.2010-00
8BXF001.0000-00 ACOPOSmulti fan module, replacement fan for ACOPOSmulti modules (8BxP/8B0C/8BVI/8BVE/8B0K)
8TB2106.2010-00 6-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
Certificates Version (Date)
ACOPOSmulti KC certificates 1.10 (03/18/2024)
E225616 UL Certificate of Compliance ACOPOSmulti (UL 508C) 1.30 (07/20/2022)
E225616 UL Certificate of Compliance ACOPOSmulti (UL 61800-5-1) 2.10 (07/20/2022)
EU Declaration Servos ACOPOSmulti 2026-06 (06/30/2026)
UK Declaration Servos ACOPOSmulti 2026-06 (06/29/2026)
Documentation Version (Date)
ACOPOSmulti User´s Manual 1.30 (08/18/2025) - DE 1.30 (08/18/2025) - EN 1.20 (10/09/2023) - DE 1.20 (12/05/2024) - IT 1.20 (12/05/2024) - FR 1.20 (10/09/2023) - EN
Datasheet 8B0C0320HW00.000-1 1.5 (09/13/2018) - DE 1.5 (10/18/2018) - EN
E-CAD (Electro or EPLAN Templates) Version (Date)
ACOPOSmulti EPLAN P8 from V2.4 4.0.1 (12/18/2020)
M-CAD (Mechan. Templates) Version (Date)
3D file STEP 8B0C0xx0HW00.000-1 3.0 (04/09/2011)
