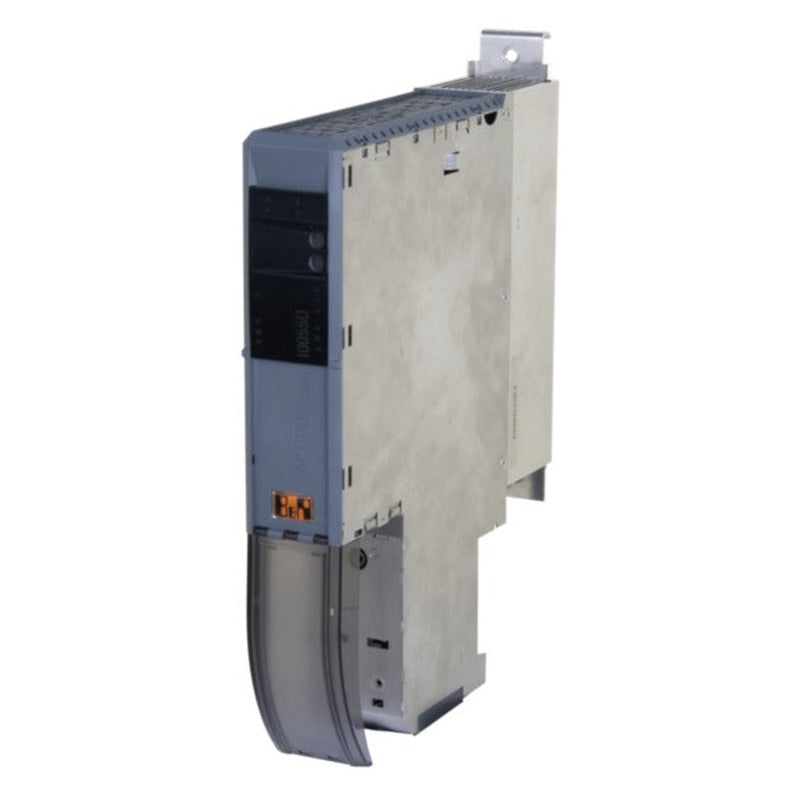

The B&R 8B0C0160HW00-0011 is a industrial automation component. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| UL | cULus E225616 Power conversion equipment |
| KC | Yes |
| Cooling and mounting type | Wall mounting |
| Voltage | |
| Nominal | 750 VDC |
| Operating range in continuous operation | 260 to 800 VDC |
| Full continuous power | 315 to 800 VDC |
| Continuous power consumption | Max. 445 W |
| Power dissipation with continuous power | 22 W (0% continuous power) 27 W (50% continuous power) 45 W (100% continuous power) |
| DC bus capacitance | 220 nF |
| Variant | ACOPOSmulti backplane |
| Output voltage | |
| DC bus voltage (U DC ): 260 to 315 VDC | 25 VDC * (U DC / 315) |
| DC bus voltage (U DC ): 315 to 800 VDC | 24 VDC ±6% |
| Reduction of continuous power depending on installation elevation | |
| Starting at 500 m above sea level | 40 W per 1000 m |
| Flexible and fine-stranded wires | |
| With wire end sleeve | 0.5 to 6 mm² |
| With wire end sleeve | 0.2 to 2.5 mm² |
| Approbation data | |
| UL/C-UL-US | 22 to 10 AWG |
| CSA | 22 to 10 AWG |
| UL/C-UL-US | 22 to 12 AWG |
| CSA | 22 to 12 AWG |
| Continuous power | 400 W |
| Continuous current | 16 ADC |
| Reduction of continuous power at ambient temperatures starting at 40°C | No reduction |
| Reduction of continuous power depending on cooling method | No reduction |
| Startup delay | Max. 1 s |
| Startup time | Approx. 5 to 20 ms |
| Residual ripple | Typ. 50 mV SS |
| UL/C-UL-US | 30 to 12 AWG |
| Circuit | Sink |
| Modulation compared to ground potential | Max. ±50 V |
| Input current at nominal voltage | Approx. 10 mA |
| Variant | Connector |
| Peak current (<4 s) | |
| DC bus voltage (U DC ): 350 to 800 VDC | 21 ADC |
| Protective measures | |
| No-load proof | Yes |
| Overload-proof | Yes |
| Short-circuit proof | Yes |
| Feedback protection | Max. 26 VDC (also when the power is switched off) |
| Overtemperature protection | Yes |
| Dielectric strength to ground | ±50 VDC |
| Output/Input isolation | SELV / PELV requirements |
| Output voltage | 25 VDC ±1.6% |
| Feedback protection | Max. 35 VDC (also when the power is switched off) |
| Variant | |
| 24 VDC, COM | Connector |
| Protection of 24 VDC Out 1 output | 16 A (slow-blow) electronic, automatic reset |
| Protection of 24 VDC Out 2 output | 5 A (slow-blow) electronic, automatic reset |
| Electrical isolation | |
| Input - 24 VDC | Yes |
| Input voltage | |
| Nominal | 24 VDC |
| Maximum | 30 VDC |
| Switching threshold | |
| Low (24 VDC Out 1 is switched on) | <5 V |
| High (24 VDC Out 1 is switched off) | >15 V |
| Switching delay | |
| ON (24 VDC Out 1 is switched on) | Max. 25 ms |
| OFF (24 VDC Out 1 is switched off) | Max. 0.25 ms |
| Permissible mounting orientations | |
| Hanging vertically | Yes |
| Horizontal, face up | Yes |
| Standing horizontally | No |
| Installation elevation above sea level | |
| Nominal | 0 to 500 m |
| Maximum | 4000 m |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 | III |
| Degree of protection per EN 60529 | IP20 |
| Operation | |
| Nominal | 5 to 40°C |
| Maximum | 55°C |
| Storage | -25 to 55°C |
| Transport | -25 to 70°C |
| Relative humidity | |
| Operation | 5 to 85% |
| Storage | 5 to 95% |
| Transport | Max. 95% at 40°C |
| Depth | |
| Wall mounting | 263 mm |
| Width | 53 mm |
| Height | 317 mm |
| Weight | Approx. 3.2 kg |
| Module width | 1 |
| 8BZ0C016000.001-1A | Screw clamp terminal block set for ACOPOSmulti 8B0C0160Hx00.001-1 modules: 1x 8TB3104.201M-11, 1x 8TB2104.2010-00, 1x 8TB2106.2010-00 |
| 8BXF001.0000-00 | ACOPOSmulti fan module, replacement fan for ACOPOSmulti modules (8BxP/8B0C/8BVI/8BVE/8B0K) |
| 8TB3104.201M-11 | 4-pin screw clamp terminal block, 1-row, pitch: 7.62 mm, label 1: Numbered consecutively, coding M: 1011 |
| 8TB2106.2010-00 | 6-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively |
| 8TB2104.2010-00 | 4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively |
| Certificates | Version (Date) |
| ACOPOSmulti KC certificates | 1.10 (03/18/2024) |
| E225616 UL Certificate of Compliance ACOPOSmulti (UL 508C) | 1.30 (07/20/2022) |
| E225616 UL Certificate of Compliance ACOPOSmulti (UL 61800-5-1) | 2.10 (07/20/2022) |
| EU Declaration Servos ACOPOSmulti | 2026-06 (06/30/2026) |
| UK Declaration Servos ACOPOSmulti | 2026-06 (06/29/2026) |
| Documentation | Version (Date) |
| ACOPOSmulti User´s Manual | 1.30 (08/18/2025) - DE 1.30 (08/18/2025) - EN 1.20 (10/09/2023) - DE 1.20 (12/05/2024) - IT 1.20 (12/05/2024) - FR 1.20 (10/09/2023) - EN |
| Datasheet 8B0C0160HW00.001-1 | 1.6 (09/13/2018) - DE 1.6 (10/18/2018) - EN |
| E-CAD (Electro or EPLAN Templates) | Version (Date) |
| ACOPOSmulti EPLAN P8 from V2.4 | 4.0.1 (12/18/2020) |
| M-CAD (Mechan. Templates) | Version (Date) |
| 3D file STEP 8B0C0xx0HW00.xxx-1 | 3.0 (04/09/2011) |
