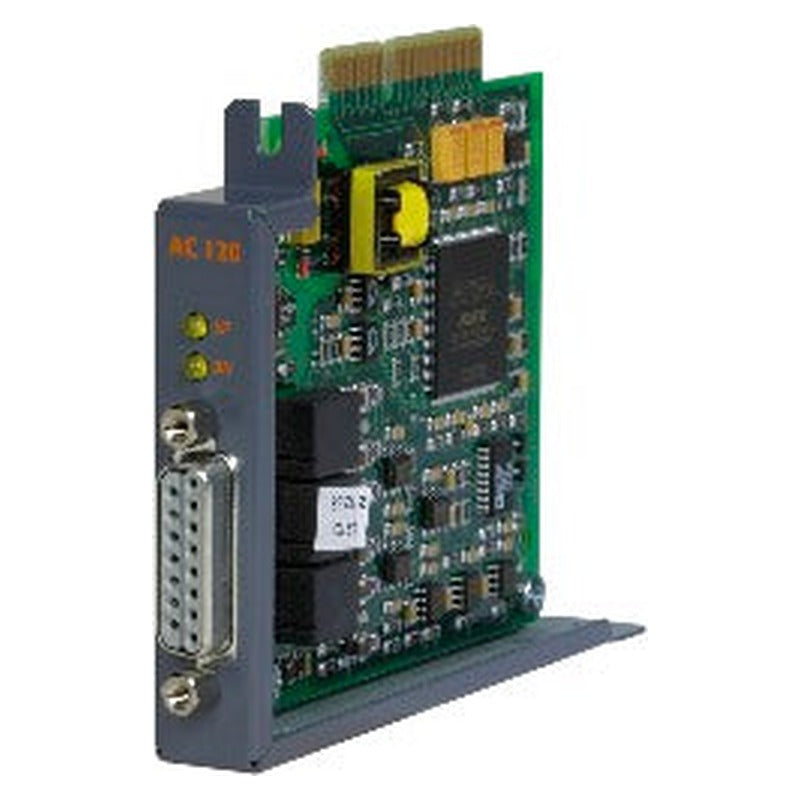

The B&R 8AC120-60-1 is a industrial automation component. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| Power consumption | |
| Depends on connected encoder | Yes |
| E0 ... EnDat single-turn, 512 lines | Max. 2.3 W |
| E1 ... EnDat multi-turn, 512 lines | Max. 3.1 W |
| E2 ... EnDat single-turn, 32 lines (inductive) | Max. 3.1 W |
| E3 ... EnDat multi-turn, 32 lines (inductive) | Max. 3.1 W |
| E4 ... EnDat single-turn, 512 lines | Max. 2.4 W |
| E5 ... EnDat multi-turn, 512 lines | Max. 2.7 W |
| E8 ... EnDat single-turn, 16 lines (inductive) | Max. 2.9 W |
| E9 ... EnDat multi-turn, 16 lines (inductive) | Max. 3.1 W |
| EA ... EnDat single-turn, 32 lines (inductive) | Max. 2.7 W |
| EB ... EnDat multi-turn, 32 lines (inductive) | Max. 3.0 W |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Non-compliant |
| UL | cULus E225616 Power conversion equipment |
| KC | Yes |
| Module type | ACOPOS plug-in module |
| B&R ID code | 0x0FCC |
| Slot | Slots 2, 3 and 4 |
| Electrical isolation | |
| Encoder - ACOPOS | No |
| Encoder power supply | |
| Output voltage | Typ. 5 V |
| Load capacity | 250 mA |
| Sense lines | 2, compensation of max. 2x 0.7 V |
| Sine/Cosine inputs | |
| Signal transmission | Differential signals, symmetrical |
| Signal frequency (-3 dB) | DC up to 300 kHz |
| Signal frequency (-5 dB) | DC up to 400 kHz |
| Differential voltage | 0.5 to 1.25 V ss |
| Common-mode voltage | Max. ±7 V |
| Terminating resistor | 120 Ω |
| Resolution | 16384 * Number of encoder lines |
| Accuracy | - |
| Reference input | |
| Signal transmission | Differential signal, symmetrical |
| Differential voltage for low | ≤-0.2 V |
| Differential voltage for high | ≥+0.2 V |
| Serial interface | |
| Signal transmission | Synchronous |
| Protocol | RS485 |
| Baud rate | 625 kbaud |
| Quantity | 1 |
| Module-side connection | 15-pin female DSUB |
| Status indicators | UP/DN LEDs |
| Encoder monitoring | Yes |
| Max. encoder cable length | 50 m |
| Operation | |
| Nominal | 5 to 40°C |
| Maximum | 55°C |
| Storage | -25 to 55°C |
| Transport | -25 to 70°C |
| Relative humidity | |
| Operation | 5 to 85% |
| Storage | 5 to 95% |
| Transport | Max. 95% at 40°C |
| 8CE025.12-1 | EnDat 2.1 cable, length 25 m, 10x 0.14 mm² + 2x 0.5 mm², 17-pin female Intercontec EnDat connector, 15-pin male DSUB servo connector, can be used in cable drag chains |
| 8CE020.12-1 | EnDat 2.1 cable, length 20 m, 10x 0.14 mm² + 2x 0.5 mm², 17-pin female Intercontec EnDat connector, 15-pin male DSUB servo connector, can be used in cable drag chains |
| 8CE015.12-1 | EnDat 2.1 cable, length 15 m, 10x 0.14 mm² + 2x 0.5 mm², 17-pin female Intercontec EnDat connector, 15-pin male DSUB servo connector, can be used in cable drag chains |
| 8CE010.12-1 | EnDat 2.1 cable, length 10 m, 10x 0.14 mm² + 2x 0.5 mm², 17-pin female Intercontec EnDat connector, 15-pin male DSUB servo connector, can be used in cable drag chains |
| 8CE007.12-1 | EnDat 2.1 cable, length 7 m, 10x 0.14 mm² + 2x 0.5 mm², 17-pin female Intercontec EnDat connector, 15-pin male DSUB servo connector, can be used in cable drag chains |
| 8CE005.12-1 | EnDat 2.1 cable, length 5 m, 10x 0.14 mm² + 2x 0.5 mm², 17-pin female Intercontec EnDat connector, 15-pin male DSUB servo connector, can be used in cable drag chains |
| Automation Studio HW Upgrades | Version (Date) |
| V4.0 HW Upgrade (8AC120.60-1) | 2.2.0.0 (09/01/2017) |
| V6.0 HW Upgrade (8AC120.60-1) | 2.2.1.0 (04/22/2026) 2.2.0.0 (09/30/2024) |
| Certificates | Version (Date) |
| ACOPOS KC certificates | 1.00 (04/03/2019) |
| E225616 UL Certificate of Compliance ACOPOS | 1.1 (09/11/2019) |
| EU Declaration Servos ACOPOS | 2024-02 (10/29/2025) |
| UK Declaration Servos ACOPOS | 2022-09 (09/08/2022) |
| Documentation | Version (Date) |
| ACOPOS User´s Manual | 2.10 (07/15/2020) - DE 2.10 (05/23/2022) - EN |
| Datasheet 8AC120.60-1 | 1.6 (04/24/2020) - DE 1.6 (04/24/2020) - EN |
| E-CAD (Electro or EPLAN Templates) | Version (Date) |
| ACOPOS EPLAN P8 from V2.4 | 4.0.0 (09/26/2019) |
| M-CAD (Mechan. Templates) | Version (Date) |
| 3D Datei STEP 8AC120.60-1 | 1.0 (03/04/2013) |
Model variants, options and firmware revisions can affect fitment. Before ordering the B&R 8AC120-60-1 industrial automation component, share your existing part number or project requirements and our team will cross-reference comparable in-stock B&R units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.
