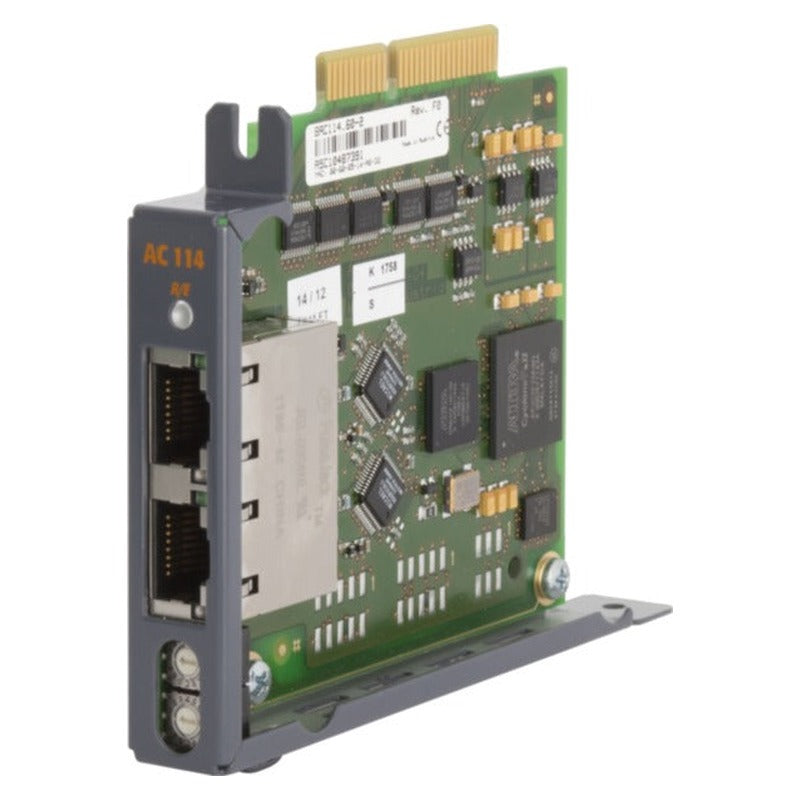

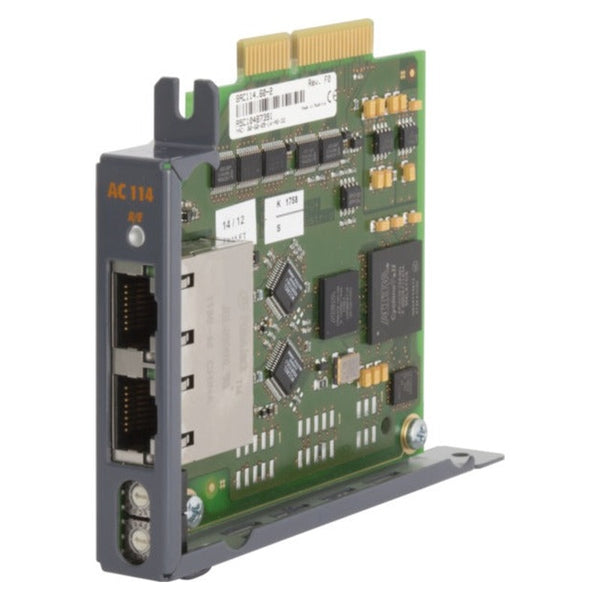

The B&R 8AC114.60-2 is a industrial automation component. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| Support | |
| Dynamic node allocation (DNA) | No |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Non-compliant |
| UL | cULus E225616 Power conversion equipment |
| KC | Yes |
| Module type | ACOPOS plug-in module |
| B&R ID code | 0xA5C1 |
| Slot | Slot 1 |
| Power consumption | Max. 3 W |
| Watchdog functionality | |
| Hardware | Yes (via ACOPOS servo drive) |
| Software | Yes (via ACOPOS servo drive) |
| Quantity | 1 |
| Module-side connection | 2x RJ45 port |
| Status indicators | Status LED + 2x Link LED |
| Transfer rate | 100 Mbit/s |
| 2-port hub | Yes |
| Possible station operating modes | Synchronous to the POWERLINK cycle |
| Electrical isolation | Yes |
| Cabling topology | Star or tree with level 2 hubs |
| Maximum number of hub levels | 10 |
| Line length | Max. 100 m between two stations (segment length) |
| Network-capable | Yes |
| Operation | |
| Nominal | 5 to 40°C |
| Maximum | 55°C |
| Storage | -25 to 55°C |
| Transport | -25 to 70°C |
| Relative humidity | |
| Operation | 5 to 85% |
| Storage | 5 to 95% |
| Transport | Max. 95% at 40°C |
| X20CA0E61.01800 | POWERLINK/Ethernet connection cable, RJ45 to RJ45, 18 m |
| X20CA0E61.01000 | POWERLINK/Ethernet connection cable, RJ45 to RJ45, 10 m |
| X20CA0E61.00600 | POWERLINK/Ethernet connection cable, RJ45 to RJ45, 6 m |
| X20CA0E61.00500 | POWERLINK/Ethernet connection cable, RJ45 to RJ45, 5 m |
| X20CA0E61.00200 | POWERLINK/Ethernet connection cable, RJ45 to RJ45, 2 m |
| X20CA0E61.00100 | POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1 m |
| X20CA0E61.00050 | POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.5 m |
| X20CA0E61.00020 | POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.2 m |
| Automation Studio HW Upgrades | Version (Date) |
| V2.6 HW Upgrade (8AC114.60-2) | 1.0.0.2 (01/15/2009) |
| V3.0 HW Upgrade (8AC114.60-2) | 1.0.0.4 (07/12/2010) |
| V4.1 HW Upgrade (8AC114.60-2) | 1.0.0.6 (12/09/2013) |
| V6.0 HW Upgrade (8AC114.60-2) | 2.2.1.0 (04/22/2026) 2.2.0.0 (09/30/2024) |
| Certificates | Version (Date) |
| ACOPOS KC certificates | 1.00 (04/03/2019) |
| E225616 UL Certificate of Compliance ACOPOS | 1.1 (09/11/2019) |
| EU Declaration Servos ACOPOS | 2024-02 (10/29/2025) |
| UK Declaration Servos ACOPOS | 2022-09 (09/08/2022) |
| Documentation | Version (Date) |
| ACOPOS User´s Manual | 2.10 (07/15/2020) - DE 2.10 (05/23/2022) - EN |
| Datasheet 8AC114.60-2 | 1.7 (04/24/2020) - DE 1.7 (04/24/2020) - EN |
| E-CAD (Electro or EPLAN Templates) | Version (Date) |
| ACOPOS EPLAN P8 from V2.4 | 4.0.0 (09/26/2019) |
| M-CAD (Mechan. Templates) | Version (Date) |
| 3D file STEP 8AC114.60-2 | 1.0 (03/04/2013) |
