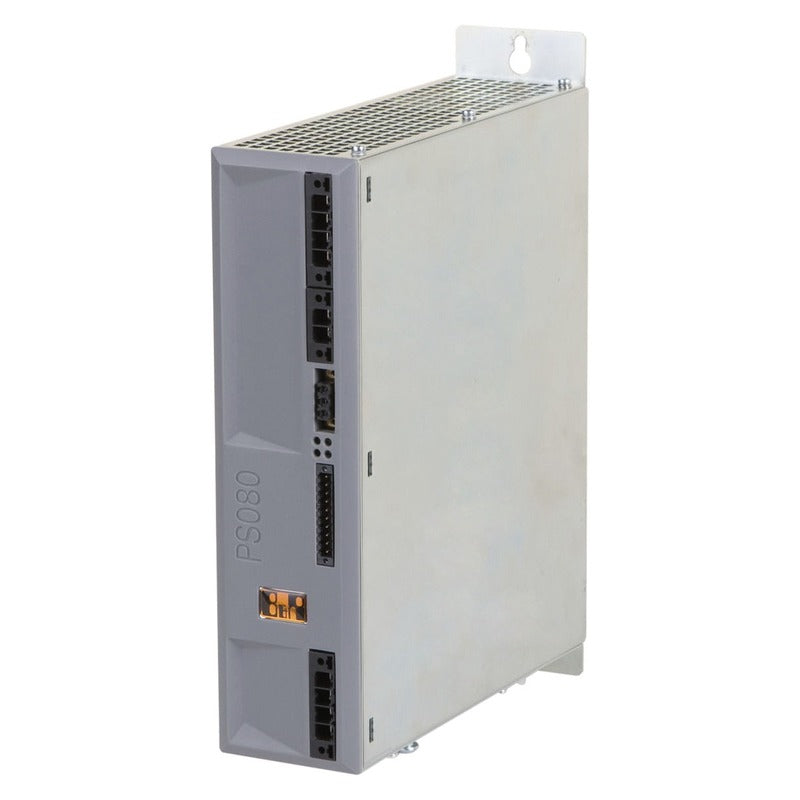

The B&R 80PS080X3-1001 is a industrial automation component. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| Power consumption | |
| Bus | 0.8 W |
| Electrical isolation | |
| Mains input - Power output | Yes |
| Mains input - 24 VDC | Yes |
| Power output - 24 VDC | No |
| X2X Link - Mains input | Yes |
| X2X Link - Power output | Yes |
| X2X Link - 24 VDC | Yes |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| UL | cULus E225616 Power conversion equipment |
| KC | Yes |
| B&R ID code | 0xA7A9 |
| Status LED | Yes |
| Connection type | Maximum 25 m line length to the power supply module |
| Fuse protection | |
| Internal | Each phase internally fused (5 A) |
| External | External fuse required for line protection |
| Input voltage range | 3x 380 to 480 VAC ±10% |
| Input current at full load | 3x 2.2 A at 400 VAC 3x 1.8 A at 480 VAC |
| Frequency range of mains voltage | 50 to 60 Hz ±5% |
| Phase failure detector | Yes |
| Power failure bypass | 10 ms (at full load) |
| Power factor (cos φ) | 0.72 @ 400 V 1 kW 0.69 @ 480 V 1 kW |
| Leakage current to PE | <3.5 mA |
| Protective circuit | Transient surge protection with varistor |
| Output current | |
| 24 to 60 VDC | Max. 16.6 A continuous current |
| 60 to 80 VDC | Max. 16.6 to 12.5 A continuous current |
| Overload/Pulse capacity | |
| Overload current | 20% overcurrent |
| Overload duration | 2 s |
| Output power | Max. 1000 W continuous power |
| Output protection | Short-circuit, overload and no-load proof |
| Control accuracy | ±2% |
| Power back immunity | Yes, <100 VDC |
| Output voltage | 24 to 80 VDC |
| Switch-on time | <5 s (does not apply during firmware update) |
| Parallel connection | Yes, max. 3 power supply units, for redundancy and increased power |
| Series connection | No |
| Max. capacitive load | Unlimited |
| Voltage range | 24 VDC ±10% |
| Output current | Max. 2 A continuous current |
| Parallel connection | No |
| Output current / Output power | |
| Continuous current / Continuous power | 30 A |
| Maximum current / Maximum power | 40 A |
| Response threshold for chopper activation | 29 to 95 VDC (adjustable) |
| Overtemperature protection (chopper-internal) | Yes |
| User interface | |
| Variant | 10-pin terminal block |
| Type | X2X Link |
| Min. X2X Link cycle time | 250 µs |
| Power dissipation | |
| Rated load | 90 W |
| No-load operation | 30 W |
| Efficiency | >92% |
| Mounting orientation | |
| Vertical | Yes |
| Ventilation/Cooling | Internally controlled fan |
| Degree of protection per EN 60529 | IP20 |
| Temperature | |
| Operation | 0 to 50°C |
| Storage | -25 to 85°C |
| Transport | -25 to 85°C |
| Relative humidity | |
| Operation | 5 to 95%, non-condensing |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| Dimensions | |
| Width | 67.5 mm |
| Height | 257 mm |
| Depth | 219 mm |
| Material | Robust metal housing |
| Weight | 3.75 kg |
| 80XPS080X3.10-01A | Screw clamp terminal block set for 80PS080X3.10-01: 1x 0TB3104-7021, 1x 0TB3104-7022, 1x 0TB3102-7010, 1x 0TB1110.8010, 1x 0TB103.3 |
| 80XBR0025.010-11 | Braking resistor for power supply module 80PS080X3.10-01 2.5 Ω 100 W |
| Automation Studio HW Upgrades | Version (Date) |
| V2.6 HW Upgrade (80PS080X3.10-01) | 1.3.0.0 (11/10/2017) 1.2.3.0 (03/28/2013) |
| V3.0 HW Upgrade (80PS080X3.10-01) | 1.5.0.0 (02/08/2022) 1.3.0.0 (11/10/2017) 1.2.3.0 (03/28/2013) |
| V4.0 HW Upgrade (80PS080X3.10-01) | 1.7.0.0 (11/29/2023) 1.6.0.0 (06/02/2022) 1.5.0.0 (02/08/2022) 1.3.0.0 (11/10/2017) 1.2.3.0 (03/28/2013) |
| Certificates | Version (Date) |
| E225616 UL Certificate of Compliance ACOPOSmicro | 1.0 (02/24/2017) |
| EU Declaration ACOPOSmicro | 2024-04 (04/23/2024) |
| UK Declaration ACOPOSmicro | 2022-09 (09/12/2022) |
| Documentation | Version (Date) |
| ACOPOSmicro User's Manual | 1.36 (07/17/2026) - DE 1.36 (07/17/2026) - EN |
| Data sheet 80PS080X3.10-01 | 1.09 (07/08/2025) - DE 1.09 (07/08/2025) - EN |
| E-CAD (Electro or EPLAN Templates) | Version (Date) |
| Power supplies EPLAN P8 | V1.21 (04/01/2014) |
| M-CAD (Mechan. Templates) | Version (Date) |
| 3D file STEP 80PS080X3.10-01 | 1.0 (07/27/2010) |
