B&R 7DO722-7
B&R 7DO722-7

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

B&R

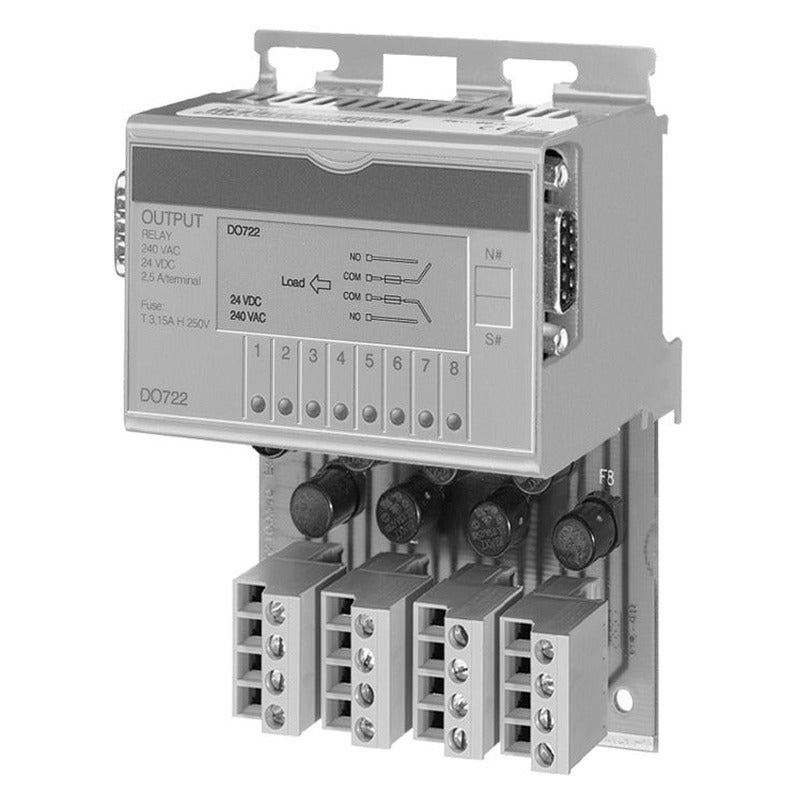

B&R 7DO722-7 I/O Module

SKU: 7DO722-7
(0)
$1,637.85
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

7DO722-7 Digital Output Module | B&R

The B&R 7DO722-7 is a digital output module. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Module Type: B&R 2003 I/O Module.
  • Type: Relay / N.O..
  • Number of Outputs: 8 isolated channels.
  • Maximum Switching Power (AC): 625 VA.
  • Module ID: DO722.
  • Model Number: 7DO722.7.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
General
Module ID DO722
General Information
Model Number 7DO722.7
Short Description 2003 digital output module, 8 relay outputs 240 VAC / 24 VDC, 2.5 A
C-UL-US Listed Yes
B&R ID Code $F2
Amount
EX270 2
CP430 4
CP470, CP770 CP474, CP476, CP774 EX470, EX770 EX477, EX777 8
Static Characteristics
Module Type B&R 2003 I/O Module
Number of Outputs 8 isolated channels
Type Relay / N.O.
Switching Voltage
Nominal at 2.5 A 240 VAC / 24 VDC
Maximum 264 VAC / 125 VDC
Maximum Voltage Relay-Relay 460 VAC
Continuous Current per
Output 2.5 A
Module 20 A
Maximum Switching Power (AC) 625 VA
Maximum Switching Power (DC) 75 W at 30 VDC
Power Consumption Max. 1.4 W
Protection Characteristics
Short Circuit Protection Dynamic Characteristics Fuse T 3.15A H / 250 V per output
Switching Delay
log 0 - log 1 Max. 10 ms
log 1 - log 0 Max. 10 ms
Electrical Isolation
Output - PCC Yes
Output - Output Yes
Mechanical Characteristics
Dimensions B&R 2003 single width
Certifications
CE Yes
UKCA Yes
UL cULus E115267 Industrial control equipment
7AC011.9 2003 cable safety device, 5 pcs., including installation material
Documentation Version (Date)
Datasheet 7DO722.7 1.0 (06/08/2004) - DE 1.0 (06/08/2004) - FR 1.0 (06/08/2004) - EN

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the B&R 7DO722-7 digital output module, share your existing part number or project requirements and our team will cross-reference comparable in-stock B&R units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Automation control and signal handling in industrial machinery.
  • Integration into new and existing control architectures.
  • Maintenance, spares and retrofit of installed equipment.
  • Machine and line-level use across manufacturing and process industries.

Warranty

  • Availability: 7DO722-7 is stocked for prompt shipment; contact us for current quantity and lead time.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping is available, and orders over $500 ship free.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: B&R part 7DO722-7 is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What condition is the 7DO722-7 supplied in?

A: Each unit is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.

Q: How quickly can the 7DO722-7 ship?

A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.

Q: Can you confirm compatibility or a replacement for the 7DO722-7?

A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
