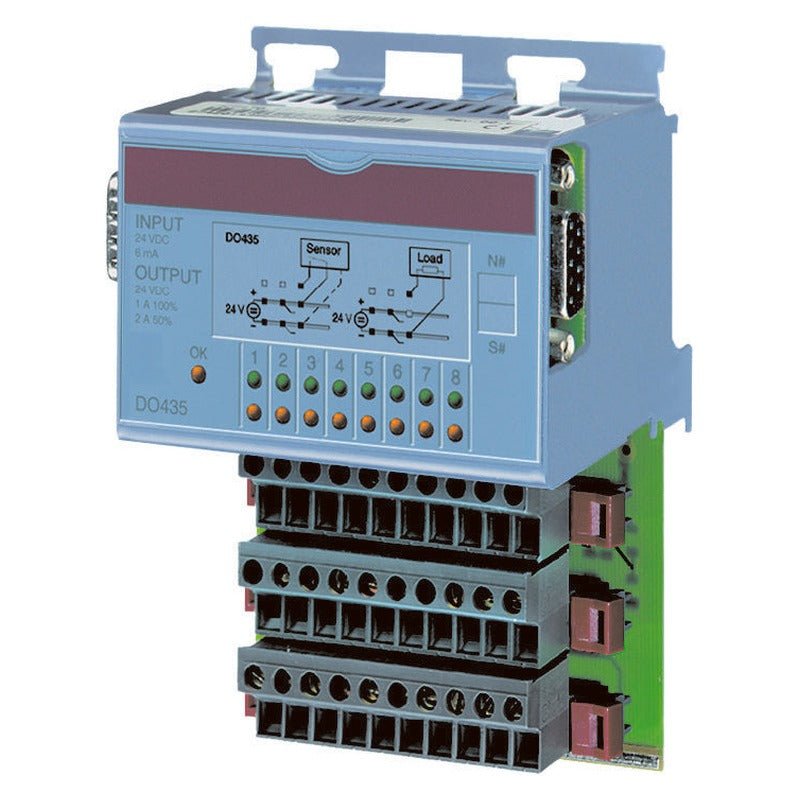

B&R 7DO435-7 I/O Module

SKU: 7DO435-7
(0)
$725.73
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

7DO435-7 Digital Output Module | B&R

The B&R 7DO435-7 is a digital output module. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Module type: B&R 2003 I/O module, single-width.
  • Type: FET.
  • Number of outputs: Max. 8.
  • Rated: 24 VDC.
  • Power consumption: Max. 0.5 W.
  • Product ID: DO435.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
General
Product ID DO435
General information
C-UL-US listed Yes
B&R ID code $EB
Module type B&R 2003 I/O module, single-width
Number
CP430, EX270 4
CP470, CP770, CP474, CP476, CP774, EX470, EX770 EX477, EX777 8
Voltage monitoring (LED: U OK) Yes Supply voltage >18 V
Power consumption Max. 0.5 W
Outputs
Number of outputs Max. 8
Type FET
Switching voltage/supply
Minimum 18 VDC
Rated 24 VDC
Maximum 30 VDC
Continuous current per
Output Max. 2 A
Module Max. 8 A
Simultaneousness
at 1 A 100 %
at 2 A 50 % (note derating curve on page 10)
Residual voltage Max. 1 V at 2 A
Protection
Short circuit protection Yes
Overload protection Yes
Short circuit current at 24 V Approx. 20 A until switched off
Braking voltage when switching off inductive loads Approx. 46 V
Switching delay Approx. 200 µs
log. 0 - log. 1 Typ. 50 µs / max. 250 µs
log. 1 - log. 0 Typ. 170 µs / max. 250 µs
Maximum switching frequency
Resistive load 100 Hz
Inductive load See section 1.8 "Switching inductive loads" on page 9
Electrical isolation Output - PLC
Certifications
CE Yes
UKCA Yes
UL cULus E115267 Industrial control equipment
7TB710.91 Accessory terminal block, 10-pin, push-in terminal block 2.5 mm²
7TB710.9 Accessory terminal block, 10-pin, screw clamp terminal block 2.5 mm²
Documentation Version (Date)
Datasheet 7DO435.7 1.20 (11/16/2007) - DE 1.20 (11/30/2007) - EN 1.1 (05/23/2005) - DE 1.1 (06/01/2005) - EN 1.0 (06/08/2004) - DE 1.0 (06/08/2004) - FR 1.0 (06/08/2004) - EN
