B&R 7AI774.70
B&R 7AI774.70

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

B&R

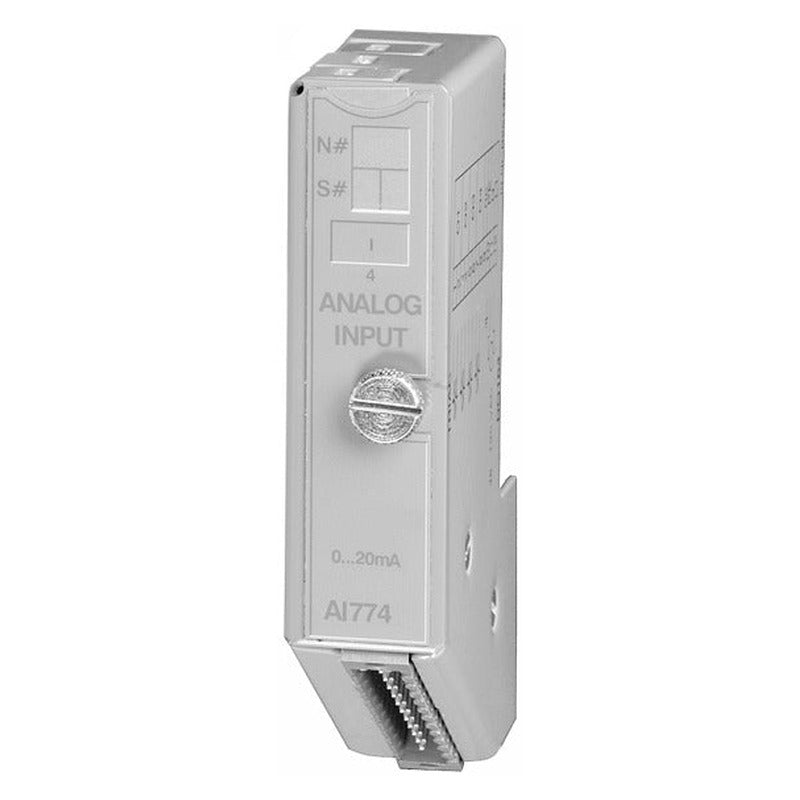

B&R 7AI774.70 I/O Module

SKU: 7AI774.70
(0)
$541.20
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

7AI774.70 Analog Input Module | B&R

The B&R 7AI774.70 is a analog input module. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Module Type: B&R 2003 screw-in module.
  • Number of Inputs: 4 differential inputs.
  • Power Consumption: Max. 0.4 W.
  • Digital Converter Resolution: 12 Bit.
  • Module ID: AI774.
  • Model Number: 7AI774.70.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
Chapter 3
Module ID AI774
General Information
Model Number 7AI774.70
Short Description 2003 Analog Input Module, 4 inputs, 0 to 20 mA, 12 Bit,
screw-in module, Order TB712 terminal block separately!
C-UL-US Listed Yes
B&R ID Code $06
Slot AF101 adapter module, CP interface
Static Characteristics
Module Type B&R 2003 screw-in module
Number of Inputs 4 differential inputs
Input Signal 0 - 20 mA (also ±20 mA)
Digital Converter Resolution 12 Bit
Differential Input Resistance (load) 130 - 200 Ω
Measurement Precision at 25 °C
Offset Max. ±5 µA
Gain Max. 0.05 % of final value
Linearity Error Max. 0.05 % of final value
Temperature Drift ±0.012 %/°C ±0.4 µA/°C
Power Consumption Max. 0.4 W
Input Filter
Cut-off Frequency 225 Hz
Attenuation 60 dB
Electrical Isolation
Input - PCC No
Input - Input No
Mechanical Characteristics
Dimensions B&R 2003 screw-in module
B&R 2003 Modules AI774 299
Certifications
CE Yes
UKCA Yes
HazLoc cULus HazLoc E180196 Industrial control equipment for hazardous locations Class I, Division 2, Groups ABCD
7TB712.91 Accessory terminal block, 12-pin, cage clamp terminal block 1.5 mm²
7TB712.9 Accessory terminal block, 12-pin, screw clamp terminal block 1.5 mm²
Documentation Version (Date)
Datasheet 7AI774.70 1.0 (06/08/2004) - DE 1.0 (06/08/2004) - FR 1.0 (06/08/2004) - EN

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the B&R 7AI774.70 analog input module, share your existing part number or project requirements and our team will cross-reference comparable in-stock B&R units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Automation control and signal handling in industrial machinery.
  • Integration into new and existing control architectures.
  • Maintenance, spares and retrofit of installed equipment.
  • Machine and line-level use across manufacturing and process industries.

Warranty

  • Availability: 7AI774.70 is stocked for prompt shipment; contact us for current quantity and lead time.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping is available, and orders over $500 ship free.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: B&R part 7AI774.70 is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What condition is the 7AI774.70 supplied in?

A: Each unit is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.

Q: How quickly can the 7AI774.70 ship?

A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.

Q: Can you confirm compatibility or a replacement for the 7AI774.70?

A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.

7AI774.70 · Technical reference data · Independently supplied by SHLY-PLC
