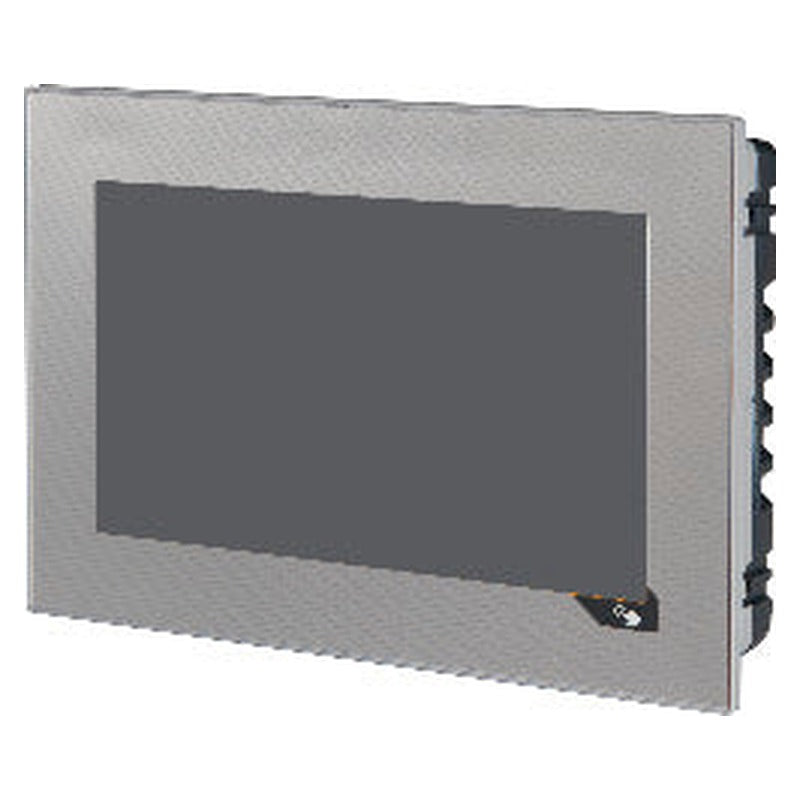

B&R 6PPT30-0702-20W HMI Panel

SKU: 6PPT30-0702-20W
(0)
$3,920.45
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

6PPT30-0702-20W Industrial Automation Component | B&R

The B&R 6PPT30-0702-20W is a industrial automation component. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Degree of protection per EN 60529: Front: IP65, Back: IP20.
  • Type: ARM Cortex-A8.
  • Power button: No.
  • Resolution: WVGA, 800 x 480 pixels.
  • Current-carrying capacity: 0.5 A.
  • Screen rotation: Yes.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
Support
mapp View Yes
Certifications
CE Yes
UKCA Yes
CRA (Cyber Resilience Act) In preparation
UL cULus E115267 Industrial control equipment
DNV Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: A (0.7 g) EMC: B (bridge and open deck)
CCS Yes
LR ENV1
KR Yes
ABS Yes
BV EC31B Temperature: 5 - 55°C Vibration: 0.7 g EMC: Bridge and open deck
LEDs Ethernet
B&R ID code 0xE591
Cooling Passive
Power button No
Reset button No
Buzzer Yes
Processor
Type ARM Cortex-A8
Clock frequency 1 GHz
L1 cache 64 kB
L2 cache 256 kB
Operating system PPT30 system
Real-time clock No
Flash 512 MB
Mode/Node switches No
DRAM 256 MB
Viewing angles
Horizontal Direction L / Direction R = Typ. 70°
Vertical Revision ≥ G3: Direction U / Direction D = Typ. 50° Revision < G3: Direction U / Direction D = Typ. 60°
Backlight
Type LED
Brightness Typ. 500 cd/m²
Half-brightness time 50,000 h
Touch screen
Type AMT
Technology Analog resistive
Controller B&R, 12-bit
Transmittance 80% ±3%
Type TFT color
Diagonal 7.0"
Colors 16.7 million (RGB, 8 bits per channel)
Resolution WVGA, 800 x 480 pixels
Contrast Rev. ≥ G3: Typ. 550:1 Rev. < G3: Typ. 600:1
Screen rotation Yes
Transfer
Physical layer 10BASE-T / 100BASE-TX
Half-duplex Yes
Full-duplex Yes
Autonegotiation Yes
Auto-MDI/MDIX Yes
Connection ETH1 (IF1) and ETH2 (IF2)
Type Ethernet
Variant Shielded RJ45 (integrated 2-port switch)
Line length Max. 100 m between 2 stations (segment length)
Max. transfer rate 10/100 Mbit/s
Interface IF3
Type USB 2.0
Variant Type A
Current-carrying capacity 0.5 A
Interface IF4
Current-carrying capacity 0.2 A
Nominal voltage 24 VDC
Max. current at nominal voltage 389 mA
Max. power consumption 9.34 W
Fuse 4 A slow-blow, internal
Voltage range 8 to 32 VDC
Reverse polarity protection Yes
Electrical isolation Ethernet (ETH1/IF1 and ETH2/IF2) to other interfaces, power supply and ground
Permissible mounting orientations
Standard mounting orientation Vertical
Inclination ±25°
Rotation In 90° increments (portrait/landscape)
Installation elevation above sea level
0 to 2000 m No limitation
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529 Front: IP65, Back: IP20
Degree of protection per UL 50 Front: Type 4X indoor use only
Temperature
Operation -20 to 60°C
Storage -20 to 70°C
Transport -20 to 70°C
Relative humidity See temperature/humidity diagram.
Front
Design Aluminum white pinstripe
Dimensions
Width 197 mm
Height 140 mm
Depth 47.8 mm
Weight 0.6 kg
0TB6102.2110-01 Accessory terminal block, 2-pin (3.81), cage clamp terminal block 1.5 mm²
9A0013.01 Stylus pen for resistive touch screen
6ACCRPP1.0000-000 Installation kit for Power Panel T-Series variants: 6x retaining clips (orange), 1x 2-pin cage clamp terminal block, 1x 2-pin screw clamp terminal block. See the accessories of the Power Panel variant in the corresponding data sheet or on the website.
0TB6102.2010-01 Accessory terminal block, 2-pin (3.81), screw clamp terminal block 1.5 mm²
5MMUSB.4096-01 USB 2.0 flash drive 4096 MB B&R
5MMUSB.2048-01 USB 2.0 flash drive 2048 MB B&R
Automation Studio HW Upgrades Version (Date)
V4.0 HW Upgrade (6PPT30.0702-20W) 1.1.0.0 (12/15/2015)
V4.1 HW Upgrade (6PPT30.0702-20W) 1.4.4.0 (05/20/2026) 1.4.3.0 (11/15/2024) 1.4.2.0 (12/22/2022) 1.4.1.0 (11/16/2022) 1.3.5.0 (12/09/2021) 1.3.3.0 (02/18/2021) 1.3.2.0 (09/17/2020) 1.3.1.0 (12/10/2019) 1.3.0.0 (12/05/2018)
V6.0 HW Upgrade (6PPT30.0702-20W) 1.4.4.0 (05/20/2026) 1.4.3.0 (11/15/2024)
Certificates Version (Date)
ABS Certificate of Product Design Assessment - Power Panel T-Series 3.00 (03/05/2025)
BV Type Approval Certificate - Power Panel T-Series 2.00 (04/17/2026)
DNV Type Approval Certificate - Power Panel T-Series 2.00 (06/18/2024)
KR Type Approval Certificate - Power Panel T30 2.00 (04/29/2025)
Lloyds Register (X20 only) 1.30 (07/07/2025) 1.20 (07/20/2022)
Lloyds Register T-Series 1.30 (07/11/2025)
RINA Type Approval Certificate - X20 / Power Panel T30 1.00 (05/07/2021)
UL61010-1 Certificate of Compliance C70, T30 Series 1.2 (11/06/2018)
Documentation Version (Date)
Installation- / EMC-Guide 1.43 (12/20/2022) - DE 1.43 (12/20/2022) - EN
Power Panel T30 User's manual 2.01 (12/14/2022) - DE 2.01 (12/14/2022) - EN
E-CAD (Electro or EPLAN Templates) Version (Date)
Panel EPLAN P8 from V2.4 4.0.2 (12/14/2020)
Firmware Upgrades Version (Date)
Power Panel T30 - Firmware Upgrade 1.0.1.0 (07/31/2024)
Linux Images Version (Date)
V4.2 LX Upgrade PPT30 1.8.0.0 (05/21/2026) 1.7.1.0 (08/01/2025) 1.7.0.0 (11/19/2024) 1.6.2.0 (12/14/2022) 1.5.1.0 (12/02/2021) 1.4.3.0 (02/18/2021)
V4.2 LX Upgrade PPT30 ZIP 1.8.0.0 (05/21/2026) 1.7.1.0 (08/01/2025) 1.7.0.0 (11/19/2024) 1.6.2.0 (12/14/2022) 1.5.1.0 (12/02/2021) 1.4.3.0 (02/19/2021)
V6.0 LX Upgrade PPT30 1.8.0.0 (05/21/2026) 1.7.1.0 (08/01/2025) 1.7.0.0 (11/18/2024)
V6.0 LX Upgrade PPT30 ZIP 1.8.0.0 (05/21/2026) 1.7.1.0 (08/01/2025) 1.7.0.0 (11/19/2024)
M-CAD (Mechan. Templates) Version (Date)
3D file DXF/STEP T30 7.0" landscape 1.00 (10/14/2014)

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the B&R 6PPT30-0702-20W industrial automation component, share your existing part number or project requirements and our team will cross-reference comparable in-stock B&R units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Automation control and signal handling in industrial machinery.
  • Integration into new and existing control architectures.
  • Maintenance, spares and retrofit of installed equipment.
  • Machine and line-level use across manufacturing and process industries.

Warranty

  • Availability: 6PPT30-0702-20W is stocked for prompt shipment; contact us for current quantity and lead time.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping is available, and orders over $500 ship free.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
