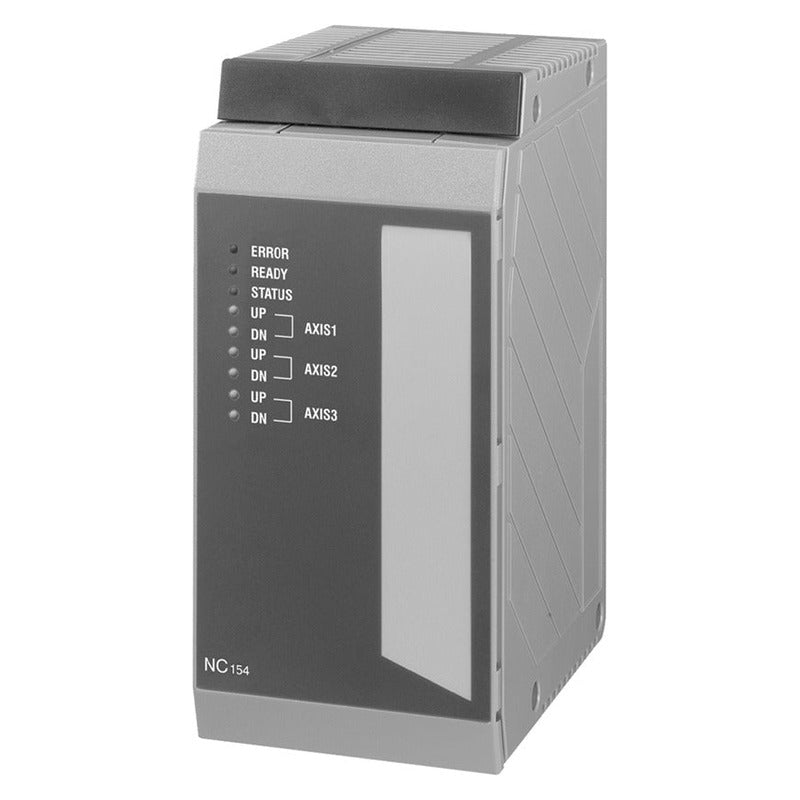

The B&R 3NC154-60-2 is a programmable logic controller. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| General | |
| Product ID | NC154 |
| C-UL-US Listed | Yes |
| B&R ID Code | $61 |
| RAM | 2 MB DRAM |
| System PROM | 2 MB FlashPROM |
| NC154 Axis Coupling over Multiple Modules Supported by | CP260, IF260 |
| Status Display | LEDs |
| Number of Axes | 3 |
| Operating Temperature | 0 to 55° C |
| Power Consumption | |
| Total | Max. 6 W |
| Axis Data | Entries are Valid for all Three Axes |
| Encoder Input | 15-pin DSUB socket Incremental encoder or SSI absolute encoder (both electrically isolated) |
| Incremental encoder | |
| Signal Form | Square wave pulse |
| Evaluation | 4-fold |
| Input Frequency | Max. 150 kHz |
| Count Frequency | Max. 600 kHz |
| Counter Size | 32-bit |
| Inputs | A, A\, B, B\, R, R\ |
| Input Level | 5 V (differential input) |
| Distance between Edges | Min. 0.8 µs |
| Monitoring | Broken Connection, Signal Disturbance |
| SSI Absolute Encoder | |
| Coding | Gray, Binary |
| Word Size | Max. 31-bit |
| Chapter 3 | |
| Baud Rate | 230 kBaud |
| Data Input Level | 5 V (differential signal) |
| Clock Output Level | 5 V (differential signal) |
| Encoder Supply | |
| External Input Voltage | 24 VDC |
| Load at Output Level | |
| Protection | Short circuit and overload protection |
| Servo Output | Entries are Valid for all Three Axes |
| Output Voltage | ±10 V, electrically isolated |
| Load | 5 mA |
| Resolution | 12-bit |
| Output Filter | Low pass 1st order |
| Disturbance Suppression | Disturbance compensation |
| Digital Inputs | Entries are Valid for all Three Axes |
| Amount | 5 |
| Electrical Isolation | Yes (optocoupler) |
| Input Voltage | 24 VDC |
| Input Current | Approx. 10 mA |
| Wiring | Sink |
| Certifications | |
| CE | Yes |
| UL | cULus E115267 Industrial control equipment |
| 3TB162.9 | 2005 terminal block, 12-pin Screw clamp terminal block |
| 1A3502.01 | 2005 Positioning Software NC154.60-2 Standard Operating System |
| Documentation | Version (Date) |
| Datasheet 3NC154.60-2 | 1.0 (06/08/2004) - DE 1.0 (01/17/2005) - FR 1.0 (06/08/2004) - EN |
Model variants, options and firmware revisions can affect fitment. Before ordering the B&R 3NC154-60-2 programmable logic controller, share your existing part number or project requirements and our team will cross-reference comparable in-stock B&R units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Each unit is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.
A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.
A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
