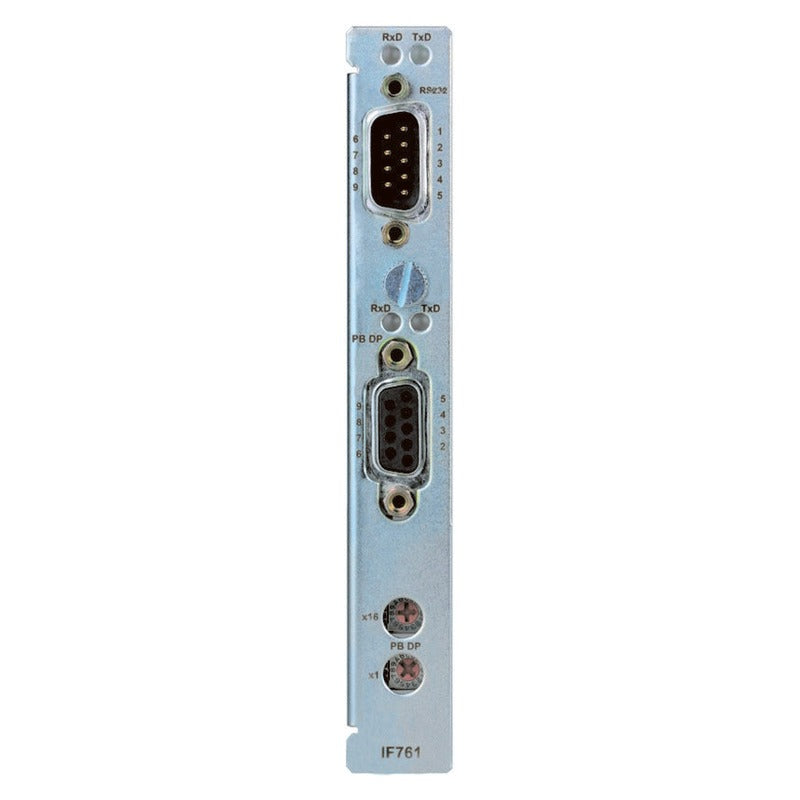

The B&R 3IF761-9 is a industrial automation component. 1x RS232, 1x PROFIBUS DP V0 slave. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| General | |
| Communication module | 1x RS232, 1x PROFIBUS DP V0 slave |
| Diagnostics | |
| Data transfer | Yes, using LED status indicators |
| Power consumption | |
| 3.3 VDC | 0.15 W |
| 5 VDC | 1.2 W |
| Total | 1.35 W |
| Electrical isolation | |
| IF1 - IF2 | Yes |
| PLC - IF1 | No |
| PLC - IF2 | Yes |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| HazLoc | cULus HazLoc E180196 Industrial control equipment for hazardous locations Class I, Division 2, Groups ABCD |
| KC | Yes |
| Status indicators | Transmit/Receive data per interface |
| Interface IF1 | |
| Signal | RS232 |
| Execution | 9-pin male DSUB connector |
| Max. distance | 900 m |
| Transfer rate | Max. 115.2 kbit/s |
| Interface IF2 | |
| Fieldbus | PROFIBUS DP V0 slave |
| Execution | 9-pin female DSUB connector |
| Max. distance | 1200 m |
| Transfer rate | Max. 12 Mbit/s |
| Degree of protection per EN 60529 | IP20 |
| Temperature | |
| Operation | 0 to 60°C |
| Storage | -25 to 70°C |
| Relative humidity | |
| Operation | 5 to 95%, non-condensing |
| Slot | Slot, e.g. in the CP360 |
| 0G1000.00-090 | Bus connector, RS485, for PROFIBUS networks |
| 0AC916.9 | Bus termination, RS485, active for PROFIBUS networks, remote I/O standard top-hat rail mounting supply voltage: 120 / 230 VAC |
| Automation Studio HW Upgrades | Version (Date) |
| AS 2.6 Upgrade 3IF761.9 | 1.0.0.1 (11/30/2007) |
| AS 3.0 Upgrade 3IF761.9 | 1.0.0.1 (11/30/2007) |
| V4.0 HW Upgrade (3IF761.9) | 1.0.0.2 (03/05/2014) |
| Documentation | Version (Date) |
| Datasheet 3IF761.9 | 1.0 (04/08/2005) - DE 1.0 (04/20/2005) - EN |
| Fieldbus equipment description files | Version (Date) |
| 3IF761.9 GSD Package | 1.01 (08/17/2006) 1.0 (07/19/2006) |
Model variants, options and firmware revisions can affect fitment. Before ordering the B&R 3IF761-9 industrial automation component, share your existing part number or project requirements and our team will cross-reference comparable in-stock B&R units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.
