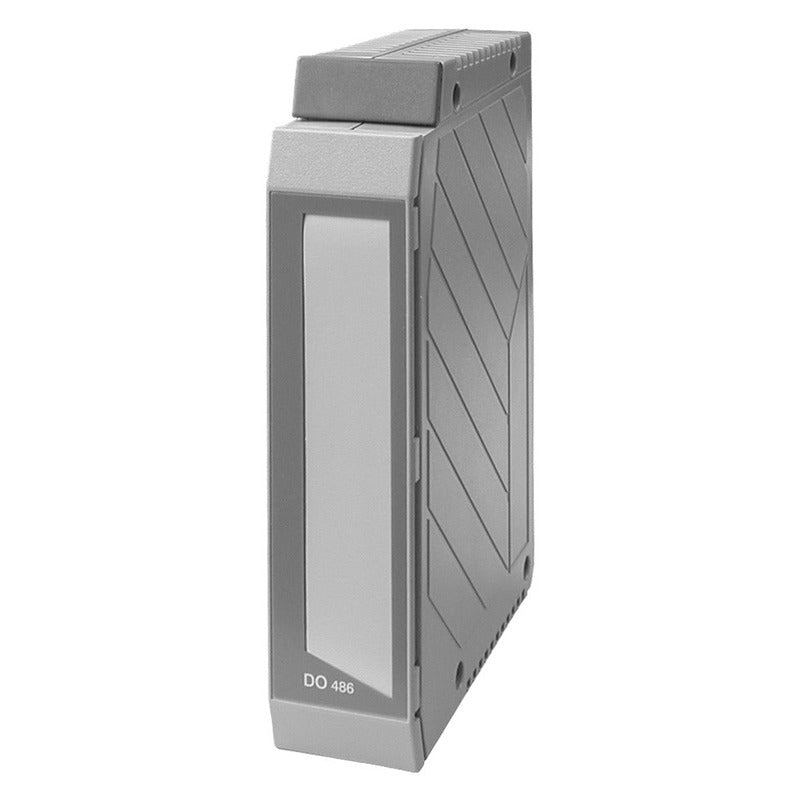

The B&R 3DO486-6 is a industrial automation component. 16 digital outputs 24 VDC in 2 groups. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| General | |
| I/O module | 16 digital outputs 24 VDC in 2 groups |
| Diagnostics | |
| Outputs | Yes, using LED status indicator |
| Operating state of outputs | Yes, using LED status indicator |
| Internal | |
| 24 VDC | - |
| 5 VDC | 1.0 W |
| Total | 1.0 W |
| External 24 V | 4.0 W |
| Electrical isolation | |
| Group - Group | Yes |
| Channel - Channel | No (same group) |
| Channel - PLC | Yes |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
| Status indicators | I/O function per channel, operating state of the outputs |
| Nominal voltage | 24 VDC |
| Nominal output current | 0.5 A |
| Total nominal current | 8.0 A |
| Output circuit | Source |
| Output protection | Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads, reverse polarity protection of the output power supply |
| Group rated voltage | 4.0 A |
| Degree of protection per EN 60529 | IP20 |
| Temperature | |
| Operation | 0 to 60°C |
| Storage | -25 to 70°C |
| Relative humidity | |
| Operation | 5 to 95% |
| Dimensions | |
| Width | System 2005 single-width |
| Can be installed on | |
| Base unit | Yes |
| Expansion unit | Yes |
| Note | Order 1x terminal block TB170 separately. |
| 7TB718.91 | Accessory terminal block, 18-pin, cage clamp terminal block 1.5 mm² |
| 7TB718.9 | Accessory terminal block, 18-pin, screw clamp terminal block 1.5 mm² |
| Documentation | Version (Date) |
| Datasheet 3DO486.6 | 1.0 (06/08/2004) - DE 1.0 (01/17/2005) - FR 1.0 (06/08/2004) - EN |
Model variants, options and firmware revisions can affect fitment. Before ordering the B&R 3DO486-6 industrial automation component, share your existing part number or project requirements and our team will cross-reference comparable in-stock B&R units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.
