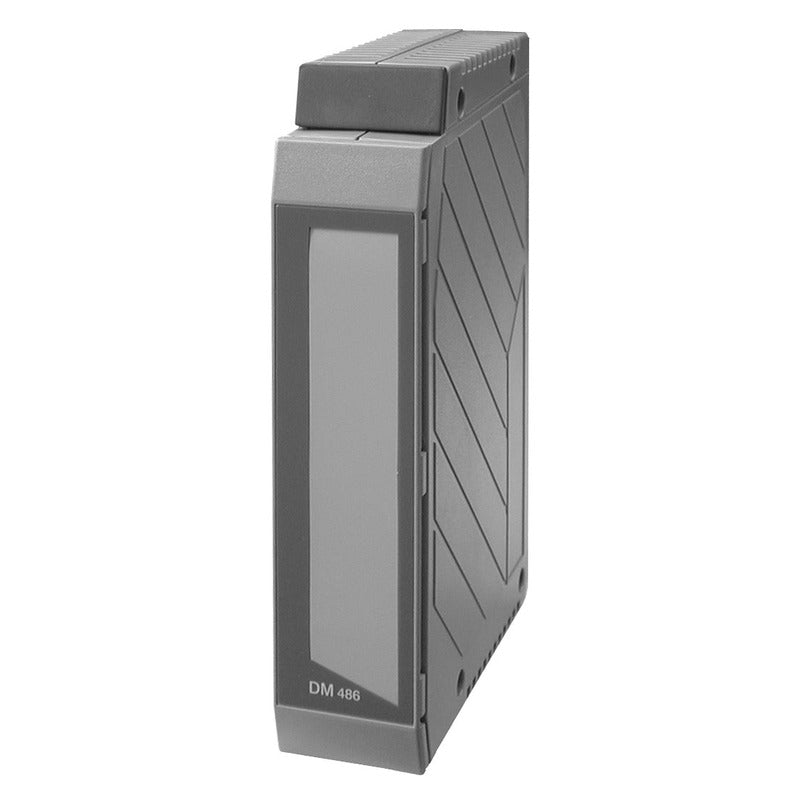

The B&R 3DM486-6 is a industrial automation component. 16 digital inputs, 16 digital outputs. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| General | |
| I/O module | 16 digital inputs, 16 digital outputs |
| Diagnostics | |
| Outputs | Yes, using LED status indicator and software |
| Output monitoring | Yes, using LED status indicator and software |
| I/O power supply | Yes, using LED status indicator and software |
| Internal | |
| 24 VDC | - |
| 5 VDC | 1.2 W |
| Total | 1.2 W |
| External 24 V (DO) | 2.2 W |
| Electrical isolation | |
| Group isolation | Input group - Output group |
| Channel - Channel | No |
| Channel - PLC | Yes |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
| Status indicators | I/O function per channel, I/O power supply for inputs and outputs, output monitoring |
| Input filter | |
| Hardware | ≤1 ms |
| Software | - |
| Nominal voltage | 24 VDC |
| Input circuit | Sink or source |
| Nominal output current | 0.5 A |
| Total nominal current | 8.0 A |
| Output circuit | Source |
| Output protection | Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads, reverse polarity protection of the output power supply |
| Sensor power supply | External |
| Degree of protection per EN 60529 | IP20 |
| Temperature | |
| Operation | 0 to 60°C |
| Storage | -25 to 70°C |
| Relative humidity | |
| Operation | 5 to 95% |
| Dimensions | |
| Width | System 2005 single-width |
| Can be installed on | |
| Base unit | Yes |
| Expansion unit | Yes |
| Note | Order 2x TB718 terminal blocks separately |
| 7TB718.91 | Accessory terminal block, 18-pin, cage clamp terminal block 1.5 mm² |
| 7TB718.9 | Accessory terminal block, 18-pin, screw clamp terminal block 1.5 mm² |
| Automation Studio HW Upgrades | Version (Date) |
| V2.6 HW Upgrade (3DM486.6) | 1.0.1.0 (09/30/2009) |
| V3.0 HW Upgrade (3DM486.6) | 1.0.1.0 (09/30/2009) |
| Documentation | Version (Date) |
| Datasheet 3DM486.6 | 1.0 (06/08/2004) - DE 1.0 (01/17/2005) - FR 1.0 (06/08/2004) - EN |
Model variants, options and firmware revisions can affect fitment. Before ordering the B&R 3DM486-6 industrial automation component, share your existing part number or project requirements and our team will cross-reference comparable in-stock B&R units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Each unit is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.
A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.
A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
