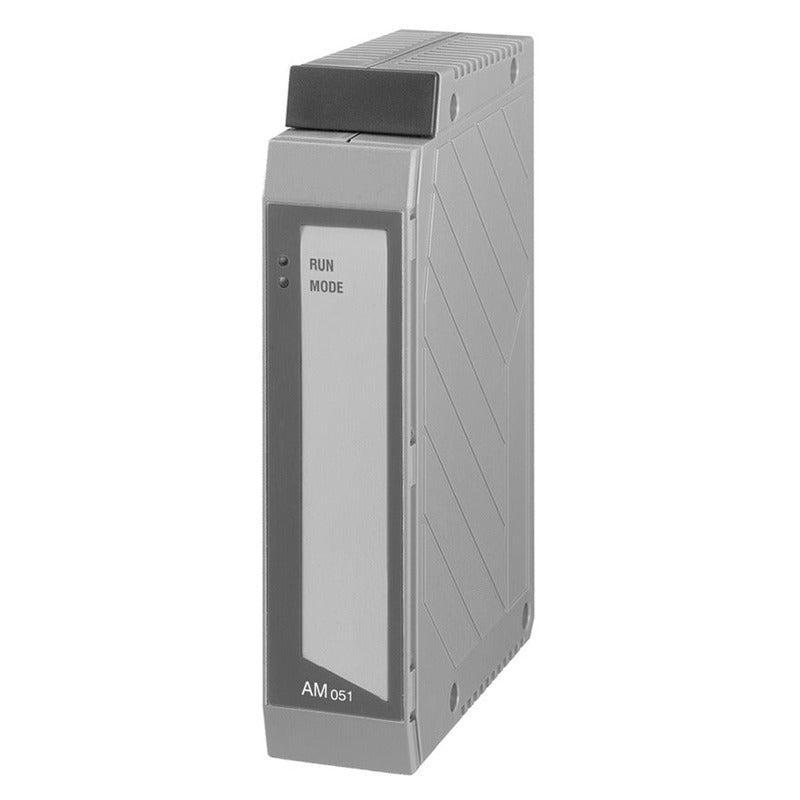

The B&R 3AM051-6 is a industrial automation component. 4 analog inputs, 4 analog outputs. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| General | |
| I/O module | 4 analog inputs, 4 analog outputs |
| Diagnostics | |
| Module status | Yes, using software |
| Converter | Yes, using LED status indicator |
| Power consumption | |
| 24 VDC | 5.0 W |
| 5 VDC | 1.5 W |
| Total | 6.5 W |
| Electrical isolation | |
| Channel - Channel | No |
| Channel - PLC | Yes |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
| Status indicators | Converter function, start pulse for software timing |
| Input | 0 to 20 mA |
| Input type | Differential input |
| Digital converter resolution | 12-bit |
| Conversion time | <1 ms for inputs and outputs <1.5 ms with enabled averaging |
| Output format | INT |
| Load | 50 Ω |
| Operating modes | Cyclic measurement with optional averaging, direct software timing, software timing with time specification (2 - 65.535 ms) |
| Basic accuracy | ±0.1% at 25°C |
| Output | 0 to 20 mA |
| Switch on/off behavior | Internal enable relay for startup and errors |
| Output protection | Short-circuit proof |
| Basic accuracy | Max. ±0.15% at 25°C |
| Degree of protection per EN 60529 | IP20 |
| Temperature | |
| Operation | 0 to 60°C |
| Storage | -25 to 70°C |
| Relative humidity | |
| Operation | 5 to 95% |
| Dimensions | |
| Width | System 2005 single-width |
| Can be installed on | |
| Base unit | Yes |
| Expansion unit | Yes |
| Note | Order 1x terminal block TB170 separately. |
| 3TB170.91 | 2005 terminal block, 20-pin, push-in terminal block |
| 3TB170.9 | 2005 terminal block, 20-pin, screw clamp terminal block |
| Automation Studio HW Upgrades | Version (Date) |
| V2.6 HW Upgrade (3AM051.6) | 1.0.1.0 (10/15/2009) |
| V3.0 HW Upgrade (3AM051.6) | 1.0.1.0 (10/15/2009) |
| Documentation | Version (Date) |
| Datasheet 3AM051.6 | 1.0 (06/08/2004) - DE 1.0 (01/17/2005) - FR 1.0 (06/08/2004) - EN |
Model variants, options and firmware revisions can affect fitment. Before ordering the B&R 3AM051-6 industrial automation component, share your existing part number or project requirements and our team will cross-reference comparable in-stock B&R units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Each unit is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.
A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.
A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
