B&R 0CFCRD-1024E-02
B&R 0CFCRD-1024E-02

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

B&R

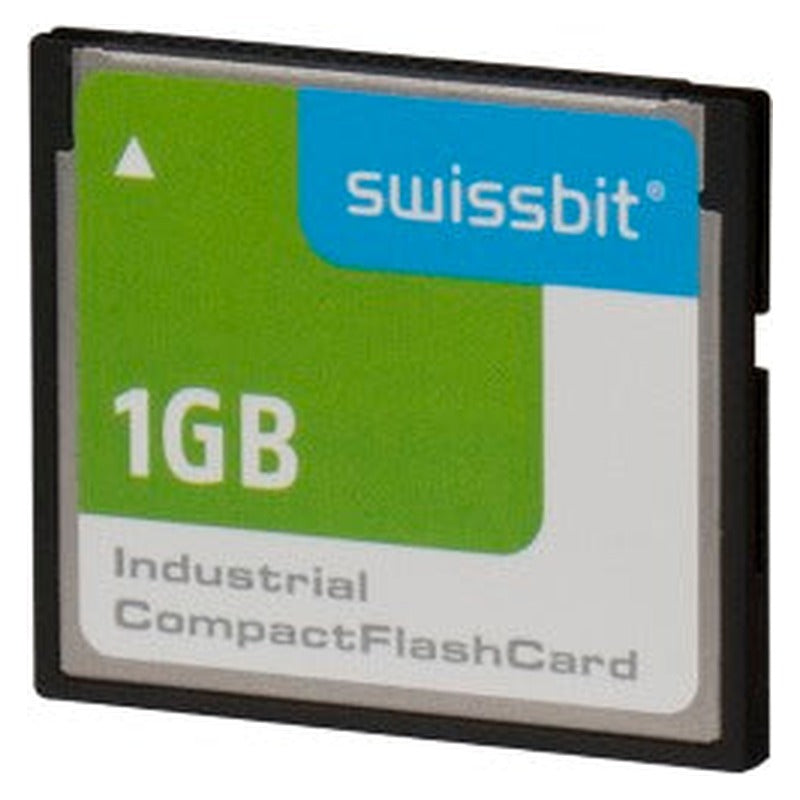

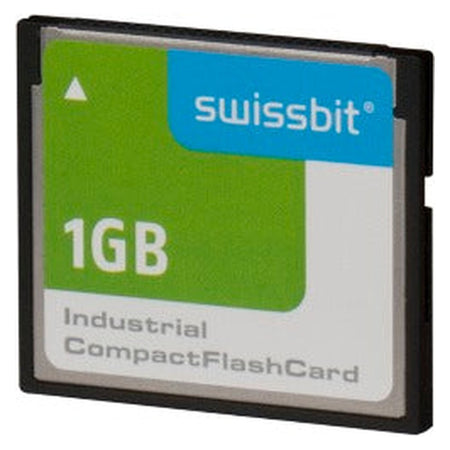

B&R 0CFCRD-1024E-02 Memory Card

SKU: 0CFCRD-1024E-02
(0)
$604.87
Available
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

0CFCRD-1024E-02 Industrial Automation Component | B&R

The B&R 0CFCRD-1024E-02 is a industrial automation component. The listed technical data is based on the manufacturer's data sheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • KR Type Approval Certificate MIL39390-AC003 (X20 System): 2.0 (05/05/2025) 1.0 (07/10/2019).
  • Capacity: 1024 MB.
  • SLC flash memory: Yes.
  • Typical: 64.1 MB/s.
  • CE: Yes.
  • UKCA: Yes.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
Continuous reading
Typical 64.1 MB/s
Continuous writing
Typical 29 MB/s
Certifications
CE Yes
UKCA Yes
CRA (Cyber Resilience Act) In preparation
UL cULus E115267 Industrial control equipment
DNV Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
LR ENV1
KR Yes
ABS Yes
BV EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
Capacity 1024 MB
Data retention 10 years (when new) to 1 year (end of service life)
Data reliability <1 unrecoverable error per 10 17 bits read
Lifetime monitoring Yes
MTBF >3,000,000 hours (at 25°C)
Servicing None
Supported operating modes Up to UDMA6 / MDMA4 / PIO6
Erase/Write cycles
Guaranteed 100,000
SLC flash memory Yes
Wear leveling Global, dynamic and static
Error-correcting code (ECC) Yes
S.M.A.R.T. support Yes
Storage health data support Yes
Hardware X20CPxxxx
Temperature
Operation -40 to 85°C
Storage -50 to 100°C
Transport -50 to 100°C
Relative humidity
Operation Max. 85% at 85°C
Storage Max. 85% at 85°C
Transport Max. 85% at 85°C
Vibration
Storage 20 g peak, 10 to 2000 Hz
Transport 20 g peak, 10 to 2000 Hz
Shock
Storage 1500 g peak (JESD 22 , method B 110 )
Transport 1500 g peak (JESD 22 , method B 110 )
Dimensions
Width 42.8 ±0.10 mm
Length 36.4 ±0.15 mm
Height 3.3 ±0.10 mm
Weight 10 g
Certificates Version (Date)
64331_A1 BV Certificate of Compliance X20 2026_05 (05/05/2026) 1.00 (11/08/2022) - DE
E115267 UL Certificate of Compliance X20 2026_08_27 (08/27/2026)
EU Declaration of conformity PLC X20 2021/10 (11/08/2021)
KR Type Approval Certificate MIL39390-AC003 (X20 System) 2.0 (05/05/2025) 1.0 (07/10/2019)
Lloyds Register (X20 only) 1.30 (07/07/2025) 1.20 (07/20/2022)
TAA00000BJ DNV Type Approval Certificate X20 13.0 (05/04/2026) 12.0 (02/18/2026) 11.0 (02/27/2024)
Documentation Version (Date)
Data sheet CompactFlash 0CFCRD.xxxE.02 2.12 (09/27/2021) - DE 2.12 (09/27/2021) - EN

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the B&R 0CFCRD-1024E-02 industrial automation component, share your existing part number or project requirements and our team will cross-reference comparable in-stock B&R units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Automation control and signal handling in industrial machinery.
  • Integration into new and existing control architectures.
  • Maintenance, spares and retrofit of installed equipment.
  • Machine and line-level use across manufacturing and process industries.

Warranty

  • Availability: 0CFCRD-1024E-02 is stocked for prompt shipment; contact us for current quantity and lead time.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping is available, and orders over $500 ship free.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: B&R part 0CFCRD-1024E-02 is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What condition is the 0CFCRD-1024E-02 supplied in?

A: Each unit is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.

Q: How quickly can the 0CFCRD-1024E-02 ship?

A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.

Q: Can you confirm compatibility or a replacement for the 0CFCRD-1024E-02?

A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.

0CFCRD-1024E-02 · Technical reference data · Independently supplied by SHLY-PLC
