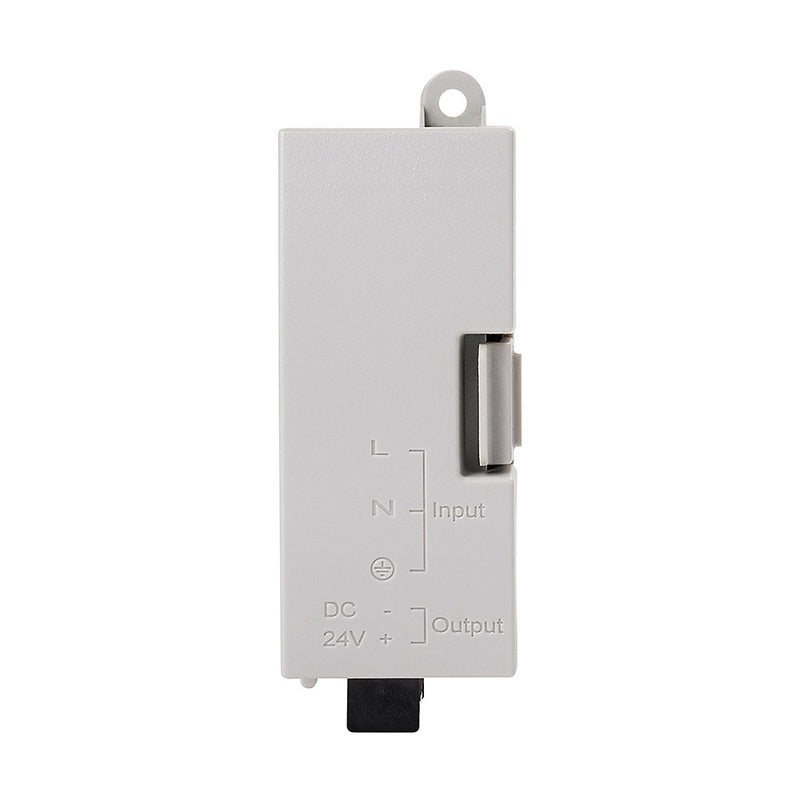

Micro800 24V DC Power Supply,12W
2080 Micro800 System, 120/240VAC to 24VDC Power Supply for Controller, 12W only
Specifications
-
Conducted RF immunity: IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
-
Depth: 75 mm
-
EFT/B immunity: IEC 61000-4-4: ¡À2kV @ 5kHz on power ports
-
Emissions: CISPR 11 Group 1, Class A
-
Enclosure type rating: Meets IP20
-
ESD immunity: IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges
-
Height: 90 mm
-
Inrush current, max: 25A @ 132V for 10 ms, 40A @ 265V for 10 ms
-
Insulation stripping length: 5 mm
-
Isolation voltage: 250V (continuous), primary to sary: reinforced insulation type, Type tested for 60s @ 2300V AC primary to sary and 1350V AC primary to earth ground.
-
Line loss ride through: 10...3000 ms @ 88V AC
-
Operating temperature: -20...65 ¡ãC (-4...149 ¡ãF), IEC 60068-2-1 (Test Ad, operating cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock)
-
Output rating: 24V @ 0.9A, 21.6 W @ 50 ¡ãC, 24V @ 0.5A, 12 W @ 65 ¡ãC
-
Power consumption (Output power): 21.6 W @ 50 ¡ãC, 12 W @ 65 ¡ãC
-
Power dissipation (Input power): 27 W (115V AC), 26.7 W (230V AC) @ 50 ¡ãC, 15.4 W (115V AC), 15.2 W (230V AC) @ 65 ¡ãC
-
Radiated RF immunity: IEC 61000-4-3: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz 10 V/m with 200 Hz 50% Pulse @ 900 MHz and 1890 MHz 10 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
-
Redundancy: false
-
Relative humidity: IEC 60068-2-30 (Test Db, unpackaged dA heat), 5...95% noncondensing
-
Shock: Operating: 25 G, IEC 60068-2-27 (Test Ea, unpackaged shock)
-
Storage temperature: -40...85 ¡ãC (-40...185 ¡ãF), IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock)
-
Suitable for safety functions: false
-
Supply frequency: 47...63 Hz
-
Supply power: 24V DC @ 0.9A @ 50 ¡ãC, 24V DC @ 0.5A @ 65 ¡ãC
-
Supply voltage: 100V...120V AC @ 0.7A, 200...240V AC @ 0.4A
-
Surge transient immunity: IEC 61000-4-5: ¡À1 kV line-line(DM) and ¡À2 kV line-earth(CM) on power ports
-
Surrounding air temperature, max: 65 ¡ãC
-
Terminal screw torque: 0.49...0.59 Nm (4.3...5.2 in-lb) (using a Phillips-head or 2.5 mm (0.10in.) flat-blade screwdriver)
-
Vibration: IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz
-
Voltage variation: IEC 61000-4-11: 30% dips for 25 cycles, 60% dips for 10 cycles, 100% dips for 0.5 and 1 cycles, >95% interruptions for 250 cycles
-
Weight: Approx 0.2 kg (0.44 lb)
-
Width: 39 mm
-
Wire size: 0.32...2.1 mm2 (22...14 AWG) solid copper wire or, 0.32...1.3 mm2 (22...16 AWG) stranded copper wire, Rated at 90 ¡ãC (194 ¡ãF) insulation max
-
Wiring category: 2 - on power ports
