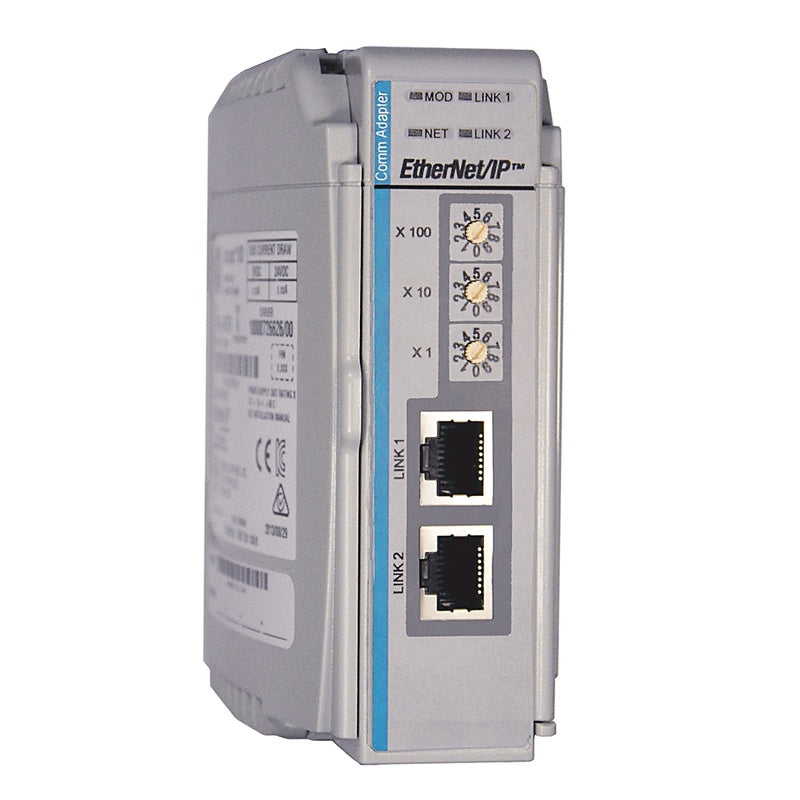

Allen-Bradley 1769-AENTR | Communication & I/O Module

SKU: 1769-AENTR
(1)
$492.99
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

1769 Ethernet/IP Adapter

1769 Network Adaptor,Ethernet,69-I/O,24.0V DC, Dual Port

Specifications

  • Height: 118mm
  • Interface: 2 Ethernet RJ45 Category 5
  • Isolation: 50V (continuous), basic
  • Conducted RF immunity: 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
  • Current draw: 500mA @ 5.2V DC
  • Depth: 87 mm
  • EFT/B immunity: ¡À3kV @ 5kHz on communications ports
  • Emissions: CISPR 11 (IEC 61000-6-4): Class A
  • Enclosure type rating: None (open-style)
  • ESD immunity: 6 kV contact discharges, 8 kV air discharges
  • EtherNet/IP communication rate: 10/100 Mbps
  • IO link master: false
  • Isolation voltage: 50V (continuous), basic insulation type, Tested at 710V DC @ 60s
  • Logix communication connections: 128
  • Module location: DIN rail or panel mount
  • Mounting screw torque: 1.16 Nm (10 in-lb) - use M4 or #8 screws
  • Nonoperating temperature: -40 to 85 ¡ãC
  • Number of HW-interfaces industrial Ethernet: 2
  • Operating temperature: 0 to 60 ¡ãC
  • Ports: 2 Ethernet RJ45 Category 5
  • Radiated RF immunity: 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% Pulse 100% AM at 900 MHz, 10V/m with 200 Hz 50% Pulse 100% AM at 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
  • Radio standard Bluetooth: false
  • Radio standard GPRS: false
  • Radio standard GSM: false
  • Radio standard UMTS: false
  • Radio standard Wi-Fi 802.11: false
  • Redundancy: false
  • Relative humidity: 5...95% noncondensing
  • Shock: Operating: 15 G
  • Slot width: 1
  • Suitable for safety functions: false
  • Supporting protocol for ASI: false
  • Supporting protocol for AS-Interface Safety at Work: false
  • Supporting protocol for CAN: false
  • Supporting protocol for Data-Highway: false
  • Supporting protocol for DeviceNet: false
  • Supporting protocol for DeviceNet Safety: false
  • Supporting protocol for EtherNet/IP: true
  • Supporting protocol for Foundation Fieldbus: false
  • Supporting protocol for INTERBUS: false
  • Supporting protocol for INTERBUS-Safety: false
  • Supporting protocol for KNX: false
  • Supporting protocol for LON: false
  • Supporting protocol for Modbus: false
  • Supporting protocol for other bus systems: false
  • Supporting protocol for PROFIBUS: false
  • Supporting protocol for PROFINET CBA: false
  • Supporting protocol for PROFINET IO: false
  • Supporting protocol for PROFIsafe: false
  • Supporting protocol for SafetyBUS p: false
  • Supporting protocol for SERCOS: false
  • Supporting protocol for SUCONET: false
  • Supporting protocol for TCP/IP: true
  • Surge transient immunity: ¡À2 kV line-earth (CM) on communication ports
  • Surrounding air temperature, max: 60 ¡ãC
  • TCP/IP communication connections: 96
  • Type of data transmission: Other
  • Vibration: 2 G @ 10...500 Hz
  • Weight, approx: 0.28 kg
  • Width: 50 mm
  • Wire category: 1 - on communication ports
  • Wire size: Ethernet connections: RJ45 connector according to IEC 60603-7, 2 or 4 pair Category 5e minimum cable according to TIA 568-B.1 or Category 5 cable according to ISO/IEC 24702.
  • With optical interface: false
  • With potential separation: false
