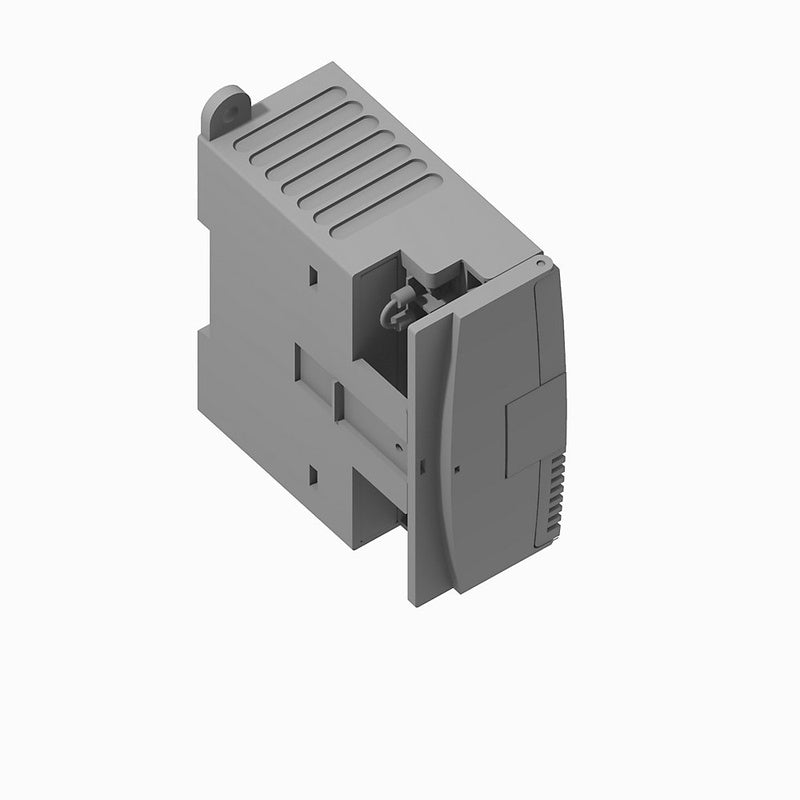

Allen-Bradley 1762-OF4 | Industrial Automation Component

MicroLogix 4 Point Analog Output Module

1762 MicroLogix 1200 System, 4 Channel Analog Output Module

Specifications

• analog output modules: 4 Channel Analog Output Module
• Class: Progmable Logic Controller
• Current Range: 4-20
• Depth: 87
• Height: 90
• I/O Isolation: Isolated
• I/O Status Indication: LED
• Module Interfaces: analog output
• Number Of Channels: 4 point
• Output: 4 Point, ¡À10V, 4-20 mA
• Temperature Rating: -20¡­65 ¡ãC (-4¡­149 ¡ãF)
• Analog normal operating range: Voltage: 0...10V DC
• Analogue inputs configurable: false
• Analogue outputs configurable: true
• Bus current draw, max: 40mA @ 5V DC, 165mA @ 24V DC
• Conducted immunity: 10V @ 0.15...80MHz
• D/A converter type: R-2R ladder voltage switching
• ESD immunity: EN 61000-4-2, 4 kV contact, 8 kV air, 4 kV indirect
• Fast transient burst: IEC1000-4-4: 2kV @ 5kHz
• Full scale analog ranges: Voltage: 0...10.5V DC, Current: 0...21 mA
• Hazardous environment class: Hazardous Location, Class I, Division 2 Groups A, B, C, D (UL 1604, C-UL under CSA C22.2 No. 213)
• Input and output group to system isolation: 30V AC/30V DC rated working voltage (IEC Class 2 reinforced insulation) type test: 500V AC or 707V DC @ 1min
• Input, current: true
• Input, resistance thermometer: false
• Input, resistor: false
• Input signal, configurable: true
• Input, thermocouple: false
• Input, voltage: true
• Load range on voltage output: >1K?
• Module power LED: On: indicates power is applied
• Non-linearity: < ¡À0.59% (in % full scale)
• Number of outputs: 4 single-ended (unipolar)
• Open and short-circuit protection: Continuous
• Operating altitude: 2000 m
• Operating humidity: 5...95% noncondensing
• Operating temperature: -20 ¡ãC
• Output, current: true
• Output protection: -32 mA
• Output ripple range: <¡À0.1% @ 0...500Hz (referred to output range)
• Output signal configurable: true
• Output update time: Typical: 2.5 ms
• Output, voltage: true
• Radiated and conducted emissions: EN50081-2: Class A
• Radiated immunity: IEC1000-4-3: 10 V/m, 80...1,000 MHz, 80% Alitude modulation, +900 MHz keyed carrier
• Reactive load, current output: <0.1 mH
• Reactive load, voltage output: <1 ¦ÌF
• Recommended cable: Belden 8761 (shielded), (For 1762-IT4, shielded thermocouple extension wire for the specific type of thermocouple you are using. Follow thermocouple manufacturer¡¯s recommendations.)
• Repeatability: -0.12 to 0.12%
• Resistive load on current output: 0...500 ? (includes wire resistance)
• Resolution of the analogue outputs: 12 bit
• Shock: Operating: 30 g
• Storage temperature: -40 ¡ãC
• Suitable for safety functions: false
• Surge immunity: IEC1000-4-5: 1kV galvanic gun
• Type of electric connection: Screw connection
• Typical overall accuracy: ¡À1.17% full scale @ -20...65 ¡ãC (Only applicable to Series B I/O modules.)
• Vibration: Operating: 5 g @ 10...500 Hz, 0.030 in. max. peak-to-peak
• Weight: Shipping: 235 g (0.517 lbs.) approximately (with cartoon)
• Width: 40 mm
