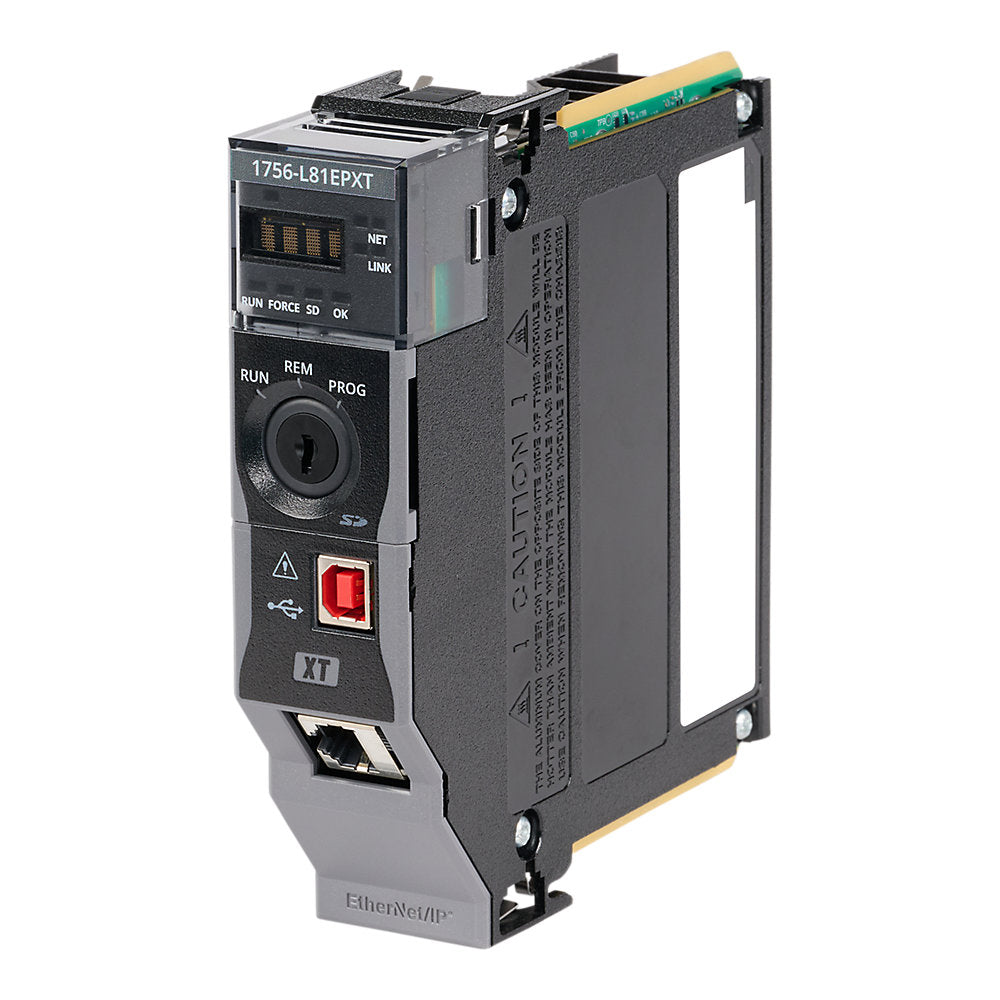

Allen-Bradley 1756-L81EPXT PLC Controller
Allen-Bradley 1756-L81EPXT PLC Controller

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Allen-Bradley

Allen-Bradley 1756-L81EPXT PLC Controller

SKU: 1756-L81EPXT
(0)
$3,229.00
Available
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

Allen-Bradley 1756-L81EPXT ControlLogix 5580 Process XT Controller, 3MB User Memory

The Allen-Bradley 1756-L81EPXT is ControlLogix 5580 Process XT extreme environment process controller built on Rockwell Logix5000 PlantPAx platform. It features conformal coating, extended wide operating temperature range (-25°C ~ +70°C), 3 MB user memory, integrated 1Gigabit EtherNet/IP port, local USB 2.0 programming port, 4-character alpha/numeric front LED display. Optimized with native PlantPAx process instruction set and dedicated process tasking model, supporting up to 100 EtherNet/IP devices and total 128,000 I/O points for harsh process industries exposed to wide temperature, moisture, dust and corrosive contaminants. Technical data sourced from official Rockwell Automation ControlLogix 5580 Process XT datasheet. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment. Contact our team for compatibility verification.

Features

  • Catalog Number: 1756-L81EPXT
  • Product Family: ControlLogix 5580 Process XT Controller, Logix5000 / PlantPAx Platform
  • User Memory: 3 MB
  • Conformal Coating: Yes, ISA 71.04 G3 severity, protects against dust, humidity & corrosive gas
  • Extended Operating Temperature: -25°C to +70°C (-13°F ~ +158°F)
  • Embedded Communication: 1 x Gigabit EtherNet/IP port
  • Local Port: USB 2.0 full-speed programming port (temporary local use only)
  • Front Display: 4-character alpha/numeric LED display
  • Max EtherNet/IP Devices: 100
  • Maximum Total I/O Points: 128,000
  • Task Structure: 32 tasks optimized for PlantPAx process control (1 continuous + periodic / event tasks)
  • Non-Volatile Storage: Compatible with SD card (1784-SD1 / 1784-SD2)
  • Power Dissipation: 6.2 W
  • Lifecycle: Active production
  • Typical Use: PlantPAx process control for harsh, wide-temperature industrial process sites

Specifications

Official Rockwell Automation ControlLogix 5580 Process XT Data

Technical Specifications
Catalog Number 1756-L81EPXT
Series ControlLogix 5580 Process XT Controller (PlantPAx)
User Memory 3 MB
Operating Temperature -25°C ~ +70°C (-13°F ~ +158°F)
Integrated Network 1 x Gigabit EtherNet/IP
Local Programming Port USB 2.0 Type B
Max Total I/O 128,000 points
Power Dissipation 6.2 W (21.2 BTU/h)
Front Display 4-character alpha/numeric LED
Compatible SD Card 1784-SD1, 1784-SD2
Agency Certifications
Certifications cULus, CE, C-Tick, ISA 71.04 G3 coating rating
Model note: 1756-L81EPXT is the XT harsh environment Process variant of 1756-L81EP, built for PlantPAx process control with native process instruction set. Compare: 1756-L81EP (standard 0~60°C, non XT); 1756-L81EPXT has conformal coating and extended temperature -25~70°C. This is standard process controller (not safety GuardLogix). Programming software: Studio5000 Logix Designer V33+. Direct replacement for end-of-life 1756-L81EP.

Compatibility & Cross-References

1756-L81EPXT works with ControlLogix 1756 XT rated chassis, 1756 power supplies, standard 1756 I/O modules. Optimized for PlantPAx distributed process control over EtherNet/IP. This listing is provided by an independent industrial automation distributor; brand names and part numbers are used for product identification only.

Applications

  • PlantPAx distributed process control in oil & gas, chemical, water / wastewater plants
  • Process automation in cold, unconditioned, outdoor industrial facilities
  • Mining & heavy industry process control with dust, condensation and corrosive fumes
  • Batch control, PID, analog loop control for harsh manufacturing environments
  • Spare replacement for legacy 1756-L81EP PlantPAx controller systems

Warranty

  • Availability: Active production, new & surplus stock available; contact us for real-time stock status.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping available, orders over $500 ship free.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: Allen-Bradley part 1756-L81EPXT is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is Allen-Bradley 1756-L81EPXT?

A: ControlLogix 5580 Process XT harsh environment PlantPAx controller, 3MB memory, conformal coating, -25~70°C wide temperature operation, optimized for process control applications.

Q: What is difference between L81EP and L81EPXT?

A: 1756-L81EP: standard process controller, operating 0~60°C. 1756-L81EPXT: XT harsh environment version with conformal coating and -25~70°C extended temperature rating.

Q: What software supports this controller?

A: Studio5000 Logix Designer version 33.04 or newer with PlantPAx library.

Q: Is this a safety controller?

A: No, this is standard PlantPAx process controller. For safety applications, use GuardLogix models such as 1756-L81ESXT.
