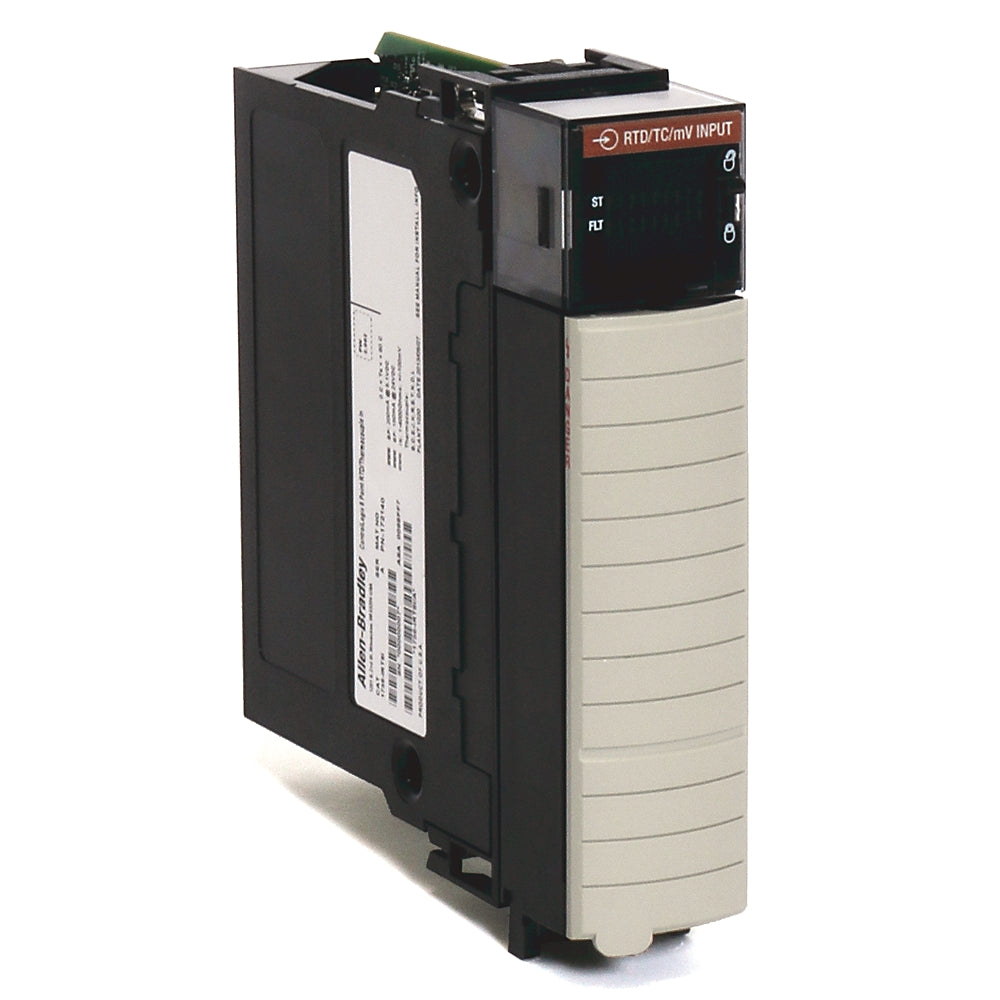

The Allen-Bradley 1756-IT16 is a ControlLogix 16-point thermocouple input module supporting thermocouple types B, C, E, J, K, N, R, S and T. It provides 16 non-isolated channels with a -100…+100 mV input range, 24-bit resolution (0.01 µV/count) and dual cold junction compensation (CJC). Ideal for high-density temperature monitoring in process control and machine applications. Technical data sourced directly from the official Rockwell Automation 1756-IT16 product page and ControlLogix system catalog. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment. Contact our team for compatibility verification.
Official Rockwell Automation 1756-IT16 Technical Data
| Technical Specifications | |
| Catalog Number | 1756-IT16 |
| Module Type | 16-point thermocouple / millivolt input (non-isolated) |
| Thermocouple Types | B, C, E, J, K, N, R, S, T |
| Number of Channels | 16 (thermocouple mode) |
| Input Range | -100…+100 mV |
| Resolution | 24 bits, 0.01 µV/count (-101…+101 mV) |
| Cold Junction Compensation | 2 CJC sensors |
| Isolation | 250V continuous (inputs-to-backplane) |
| Power Dissipation | 3W at full load (9.9 BTU/hr) |
| Terminal Block | 36-pin RTB (1756-TBCH / 1756-TBS6H) |
| Environmental Ratings | |
| Operating Temperature | 0°C ~ +60°C |
| Weight | 0.2 kg |
| Agency Certifications | |
| Certifications | CE, UL Listed, China CCC, Korean KC, Australian RCM, IECEx, ATEX, ABS, Eurasian Economic Community |
The 1756-IT16 fits any ControlLogix chassis slot (slot width 1) and uses a 36-pin removable terminal block (1756-TBCH, 1756-TBS6H, 1756-TBNH). Configured via RSLogix 5000 / Studio 5000 with per-channel thermocouple type selection, on-board data alarming and scaling to engineering units. This listing is provided by an independent industrial automation distributor; brand names and part numbers are used for product identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: A ControlLogix 16-point thermocouple input module supporting types B, C, E, J, K, N, R, S and T with 24-bit resolution.
A: -100…+100 mV input range; 24-bit resolution with 0.01 µV/count.
A: No, the inputs are non-isolated (16 high-density channels, 2 CJC). For isolated thermocouple inputs use 1756-IT6I.
A: 1756-TBCH, 1756-TBS6H and 1756-TBNH 36-pin removable terminal blocks.
