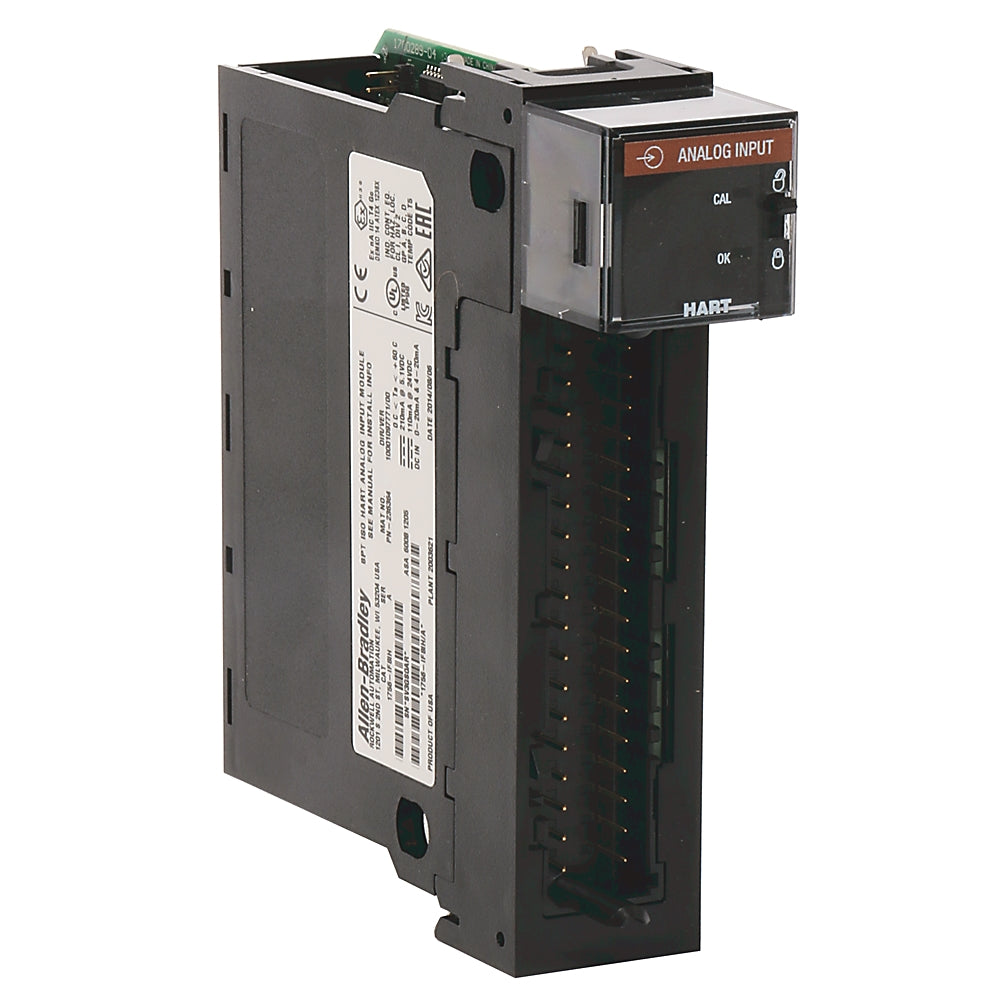

The Allen-Bradley 1756-IF8IH is a ControlLogix 8-channel HART isolated analog input module. It provides eight isolated current inputs for 0-20mA and 4-20mA transmitters with 16-21 bit resolution, full HART protocol support (HART 5/6/7), and on-board HART diagnostic data. Ideal for monitoring HART smart transmitters in process control applications. Technical data sourced directly from the official Rockwell Automation 1756-IF8IH product page. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment. Contact our team for compatibility verification.
Official Rockwell Automation 1756-IF8IH Technical Data
| Technical Specifications | |
| Catalog Number | 1756-IF8IH |
| Number of Inputs | 8 current inputs |
| Input Range | 0…20 mA (0-20.58mA), 4…20 mA (3.42-20.58mA) |
| HART Protocol | HART 5, 6, 7 |
| Resolution | 16 to 21 bits |
| Input Impedance | 250 Ω ±5 Ω |
| Isolation Voltage | 250V continuous (reinforced inputs-to-backplane; basic input-to-input, to ground) |
| Input Overvoltage Protection | 28.8V DC |
| Module Error (full temp range) | 0.3% of range (all filters, HART disabled) |
| Power Dissipation | 4 W within module |
| Backplane Current | 210 mA @5.1V DC, 110 mA @24V DC |
| Terminal Block | 36-pin RTB, torque 0.5 N·m |
| Environmental Ratings | |
| Operating Temperature | 0°C ~ +60°C |
| Storage Temperature | -40°C |
| Relative Humidity | 5% ~ 95%, Non-Condensing |
| Shock / Vibration | 30 G operating / 50 G non-operating; 2 G @10~500 Hz |
| Agency Certifications | |
| Certifications | CE, cULus, EMC (IEC 61000-6-4), RoHS; North American temp code T5 |
The 1756-IF8IH fits any ControlLogix chassis slot (slot width 1) and is compatible with 1756-TBCH, 1756-TBSH and 1756-TBNH 36-pin removable terminal blocks. Configured via RSLogix 5000 / Studio 5000 with electronic module keying, HART protocol settings and on-board alarming. For harsh or corrosive environments, the conformally coated 1756-IF8IHK variant is recommended. This listing is provided by an independent industrial automation distributor; brand names and part numbers are used for product identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: A ControlLogix 8-channel HART isolated analog input module for 0-20mA / 4-20mA current transmitters with HART 5/6/7 protocol support.
A: 16 to 21 bits, using a 24-bit Sigma-Delta ADC.
A: 1756-IF8IHK is the conformally coated version; electrical and environmental specs are identical, the coating protects against moisture and corrosive atmospheres.
A: 1756-TBCH, 1756-TBSH and 1756-TBNH 36-pin removable terminal blocks (torque 0.5 N·m).
