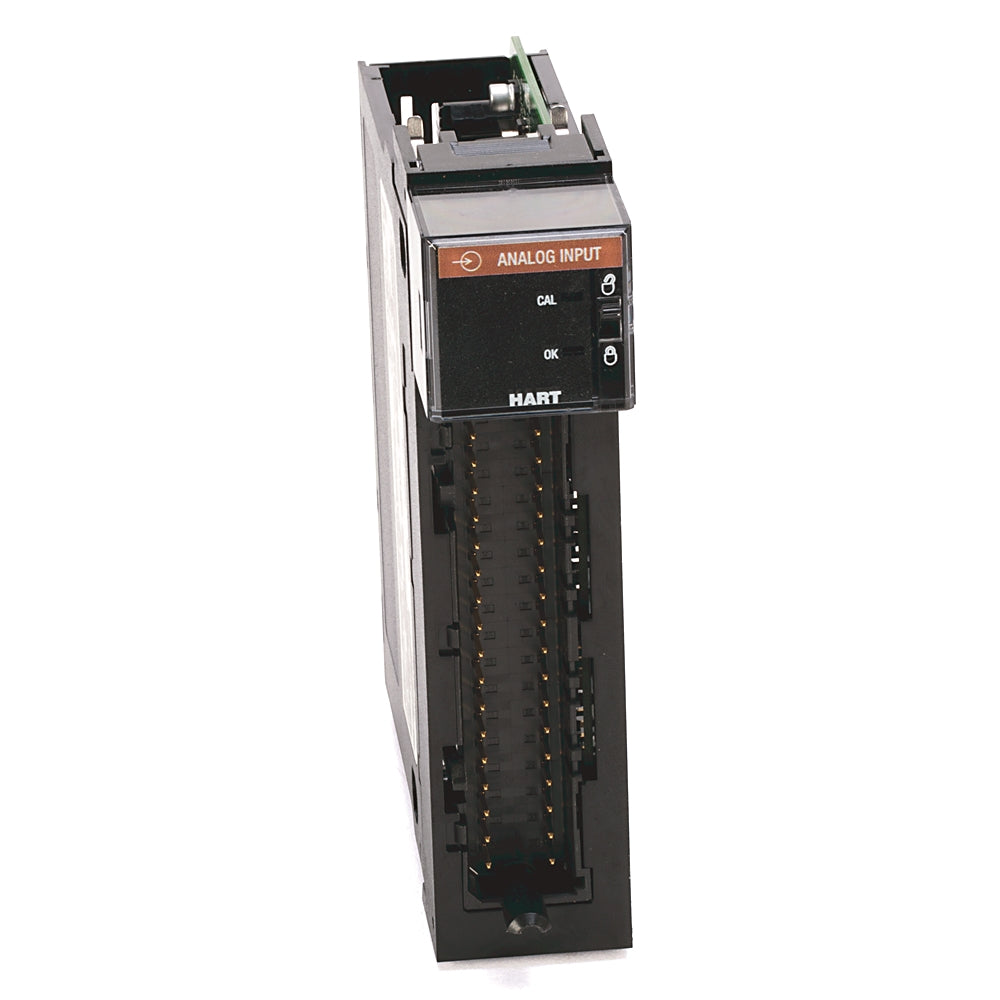

The Allen-Bradley 1756-IF8HK is the conformally coated version of the ControlLogix 8-point differential analog input module with HART protocol support. It provides eight differential current/voltage inputs (36-pin) with 16-21 bit resolution and 50V continuous isolation between inputs, plus a conformal coating that protects the circuit board against moisture, dust and corrosive atmospheres for harsh industrial environments. Technical data sourced directly from the official Rockwell Automation 1756-IF8H product page and ControlLogix I/O specifications. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment. Contact our team for compatibility verification.
Official Rockwell Automation 1756-IF8H / 1756-IF8HK Technical Data
| Technical Specifications | |
| Catalog Number | 1756-IF8HK (Series B) |
| Coating | Conformally coated |
| Module Type | Analog differential input with HART protocol |
| Number of Inputs | 8 differential inputs |
| Input Signal | ±10V, 0-5V, 1-5V, 0-10V, 0-20mA, 4-20mA |
| Input Range | Voltage -10…+10V; Current 0-20mA, 4-20mA |
| Resolution | 16 to 21 bits |
| HART Protocol | Supported on all channels |
| Isolation | 50V continuous between inputs |
| Backplane Current | 300 mA @5.1V DC; 135 mA @24V DC |
| Terminal Block | 36-pin RTB |
| Environmental Ratings | |
| Operating Temperature | 0°C ~ +60°C |
| Agency Certifications | |
| Certifications | CE, cULus, EMC, RoHS; China CCC; American Bureau of Shipping (ABS) |
The 1756-IF8HK fits any ControlLogix chassis slot (slot width 1) and uses a 36-pin removable terminal block (1756-TBCH / 1756-TBSH / 1756-TBNH). Configured via RSLogix 5000 / Studio 5000 with electronic module keying and HART channel settings; firmware version 3.012. This listing is provided by an independent industrial automation distributor; brand names and part numbers are used for product identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: The conformally coated version of the ControlLogix 8-point differential analog input module with HART protocol support.
A: "K" indicates conformal coating, which protects the PCB against moisture, dust and corrosive atmospheres for harsh environments.
A: 1756-IF8HK is non-isolated (50V between inputs); 1756-IF8IHK is the isolated version with 250V reinforced inputs-to-backplane isolation. Both are conformally coated.
A: 1756-TBCH, 1756-TBSH and 1756-TBNH 36-pin removable terminal blocks.
1756-IF8HK · Technical reference data · Independently supplied by SHLY-PLC
